Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.

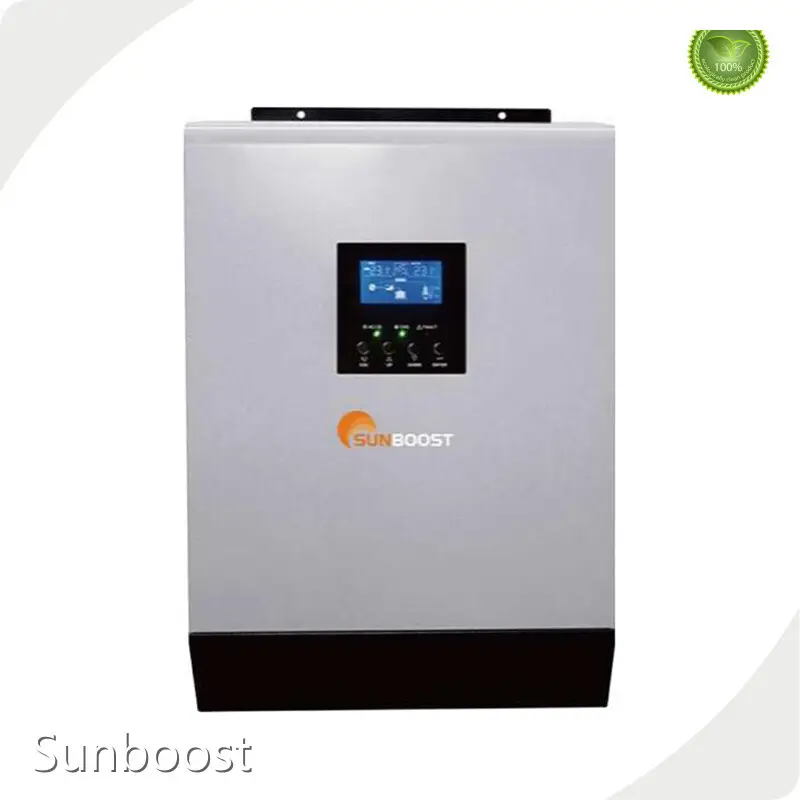

Off Grid Hybrid Inverter - - Sunboost
Products Advantages
- Off grid inverter, support the utility and photovoltaic solar two lines of input
- DPS digital control technology, the double transfor mation online design, USES the input PFC technology, the input power of 0.99, and high efficiency inverter topology, the output is more efficient
- Battery equalization function optimization of battery performance, extend battery life
- Mains/pv/battery/multimode optimal output
- Built-in dust-proof net suite, suitable for bad environment
- Based on MPPT solar charger design
- Biggest support 9 parallel machines
- Support battery cold start
Product Specifications
| MODEL | MKSII 5K | |
| Rated power | 5000VA | |
| Ac input | ||
| Voltage | 230VAC | |
| Voltage range | 170-280Vac(applicable to personal computer）90-280Vac（applicable to household appliances） | |
| Frequency range | 50/60HZ | |
| PV input | ||
| Maximum photovoltaic array power | 4500W | |
| The largest photovoltaic array open-circuit voltage | 450Vdc | |
| Scope of MPPT @ working voltage | 120Vdc-430Vdc | |
| The rated voltage | 360V | |
| Number of MPPT | 1 | |
| Output Paramenters | ||
| Voltage | 230V±5% | |
| Frequency | 50HZ | |
| Efficiency | 90% | |
| Maximum output power | 5000W | |
| Conversion time | 10ms（UPS），20ms（Household appliance） | |
| harmonic | ≤3% | |
| Overload capacity | 5s@≥150%load;10s@110%-150%load | |
| The utility model | ||
| Voltage | 230Vac±5% | |
| Frequency | 50Hz | |
| Efficiency | 95% | |
| Battery | ||
| The battery voltage | 48V | |
| Charging way | A three-stage charging | |
| Maximum charging current | 80A | |
| cold start voltage | 46V | |
| Weaver function | The biggest support 9 weaver | |
| The battery type | Lead-acid, lithium Battery | |
| Protection function | Output short circuit overload over temperature protection, and other functions | |
| Communication port | RS232,USB，Dry contact | |
| The work environment | ||
| Working temperature | -10℃ to 50℃ | |
| Storage temperature | -15℃ to 60℃ | |
| Relative humidity | 5%-95% | |
| Physical | ||
| Size (D/W/H) | 480x310x125mm | |
| Net weight (KG) | 11 | |
Company Advantages
· off grid hybrid inverter is featured with unique design, well-selected materials, novel appearance and advanced workmanship.
· Sunboost believes that the quality is the soul of an enterprise.
· Sunboost Technology Co.Ltd's customer service has always been based on respecting and caring for every client.
Company Features
· After years of development, Sunboost Technology Co.Ltd has become an expert. We have strengthed our advantages in R&D and manufacture of off grid hybrid inverter.
· All Sunboost products meet the requirements of international standards.
· Adhering to the highest ethical standards, we operate our business and treat all of our co-workers, customers, and suppliers with honesty, integrity, and respect.
Application of the Product
Sunboost's off grid hybrid inverter can be used in multiple industries.
Sunboost always provides customers with reasonable and efficient one-stop solutions based on the professional attitude.
