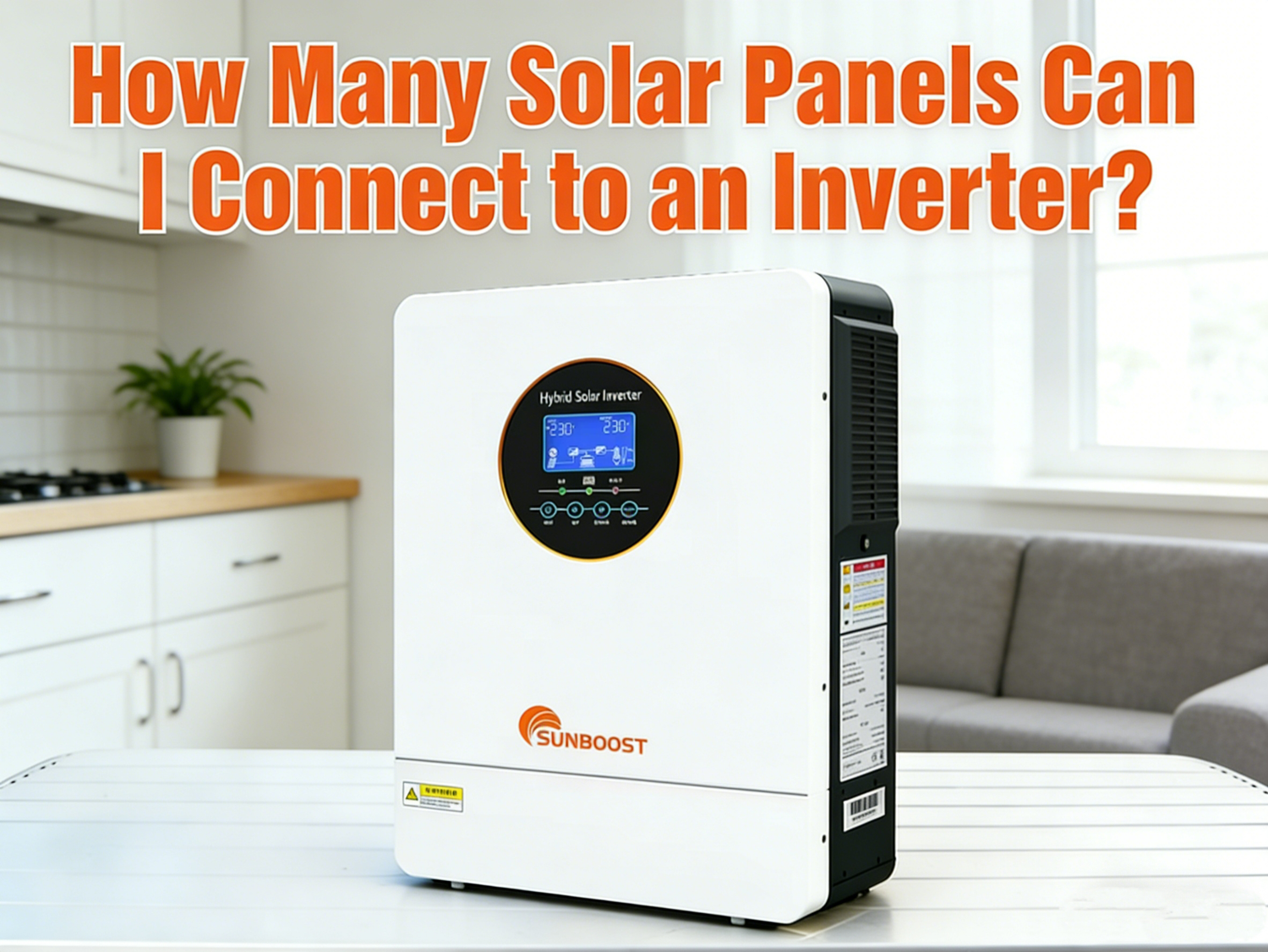

How Many Solar Panels Can I Connect to an Inverter?
The number of solar panels to connect depends on the inverter'smaximum DC input power (wattage), voltage range, andmaximum current, rather than just the AC output A common rule ofthumb is to size the solar aray at 115%-130% of the inverter's rating to maximize efficiency.
Here is how to determine the number of panels:
Based on Inverter Wattage Calculate the total maximum DC input (e.g, a 5,000wverter can often handle 5,600W-6,500w of panels).
Calculate Panel Count Divide the max DC input power by the wattage of a singlepanel (e.g., 5,600W/350W panels = 16 panels)
Voltage Limits Ensure the total voltage (VOCx number of panels in series) does notexceed the inverter's maximum input voltage, generally 450V-600V for residentialstring inverters.
Series vs Parallel If the voltage is too high, split the panels into parallel strings.
Example:For a 5kW (5,000W) inverter using 400W panels, a 120% oversizing gives 6,000w 6000- 400 15 panels If the max voltage is 600V, you would likely split these into two strings of 7 or 8 panels.
This is a detailed explanation.By learning and reading together,Hope this helps.
First：Check parameters
Know the Two Non-Negotiable Inverter Specs
Before counting panels, you need two key numbers from your inverter’s datasheet—these are the hard limits that will define your panel count, and ignoring them is a surefire way to damage your equipment.
1. DC Input Voltage Range (Minimum & Maximum)
Solar panels produce DC power, and your inverter needs a steady DC voltage to convert it to usable AC power for your home/grid.
Every inverter has a low DC cut-off voltage (it shuts down if voltage drops too low) and a maximum DC input voltage (the absolute upper limit—exceed this, and you’ll fry your inverter).
Most residential inverters have a DC voltage range of 100V–500V DC, while smaller inverters (for RVs/cabins) may be 24V/48V low-voltage systems. Your total panel voltage (series-wired) must land firmly in this range—in all weather conditions.
For example，SUNBOOST 6.2K48-D120 inverter PV Voltage Range is 120-450V
Therefore, the minimum voltage for using solar panels is 120V, and the maximum cannot exceed 450V.
2. Maximum DC Input Power (Watts)
This is the total amount of DC power your inverter can safely handle from your solar panels, usually listed in watts (W) or kilowatts (kW).
For example，SUNBOOST 6.2K48-D120 inverter Maximum DC Input Power is 7200W.
Your total panel power (all panels combined) should not exceed this number.
Otherwise, it will overload and damage your inverter.
Know Your Solar Panel’s Key Ratings
You’ll also need two basic specs from your solar panels (all panels in a system )
It's best to choose solar panels with the same power or voltage; otherwise, inefficiency may result.
· Panel Wattage (Pmax): The maximum AC power the panel produces under ideal sunlight (e.g., 400W, 450W, 500W).
· Voc (Open Circuit Voltage): The unloaded voltage of the panel (when not connected to the inverter).
This is the most important number for voltage calculations, because panel voltage rises in cold weather (by up to 20–30%) and drops in hot weather.
· Vmp (Voltage at Maximum Power): The voltage the panel produces when it’s actively generating power (used for checking the inverter’s minimum voltage).
Then,Calculation: Series vs. Parallel Wiring
Solar panels are wired in series (to increase voltage) and parallel (to increase power/watts)—the combination determines how many panels work with your inverter.
Example: 550W panel ，typical：Voc≈49V，Vmp≈41V
6.2kW inverter (Max PV Array Open-Circuit Voltage)：500VDC
MPPT operating voltage range: 120–450VDC
1.Number of Required Panels
Number of panels=Max PV Array Power/Power per panel=7200W/550W≈13.09
The actual configuration must be an integer and meet the voltage range requirements, therefore:
Minimum configuration: 13 pieces of 550W panels → Total power 13×550W=7150W (close to the 7200W upper limit)
More common configuration: 12 pieces of 550W panels → Total power 12×550W=6600W (with a safety margin)
2.Voltage Matching Verification
If using 14 panels in series: Voc = 14×49V=686V → Exceeds the 500V upper limit, not feasible
If using 12 panels in series: Voc = 12×49V=588V → Still exceeds the 500V upper limit, not feasible
If using 10 panels in series and 2 in parallel: Total power = 10×2×550W=11000W → Far exceeds the 7200W upper limit, not feasible
If using 10 panels in series: Voc = 10×49V=490V → Meets the 500V upper limit, Vmpp = 10×41V=410V → Falls within the 120–450V MPPT range, feasible
Therefore, 10 panels in series and 1 in parallel (10 pieces of 550W panels, total power 5500W) is the basic configuration that meets the voltage requirements.
Final Tips:
Never mix different panel models: Different Voc/Wattage panels cause "string mismatch," leading to up to 20% power loss.
Account for shading: If your roof has partial shading, use microinverters or power optimizers—they let each panel perform independently, so shading one doesn’t kill the whole string.
Check local solar irradiance: If you live in a high-sun area (e.g., Arizona, Spain, Australia), you can lean into the 40% oversizing buffer; in low-sun areas (e.g., UK, Northern Europe), stick to 20%.
Wrapping Up:
The number of solar panels to pair with your inverter isn’t a guess—it’s a simple calculation based on voltage limits, power ratings, and your local climate. By following the steps above, you’ll build a solar system that runs at peak efficiency, avoids equipment damage, and gives you the best bang for your solar buck.
If you’re still unsure? Start with the total panel power, then check the voltage limits for series wiring—and you’ll be on the right track.
And remember: a well-matched inverter and panel setup isn’t just about saving money today—it’s about a reliable, high-performing solar system that powers your home for 25+ years.
Ready to start your solar journey? Pick your inverter first, nail the specs, and then count your panels—you’ll be generating free solar power in no time!
