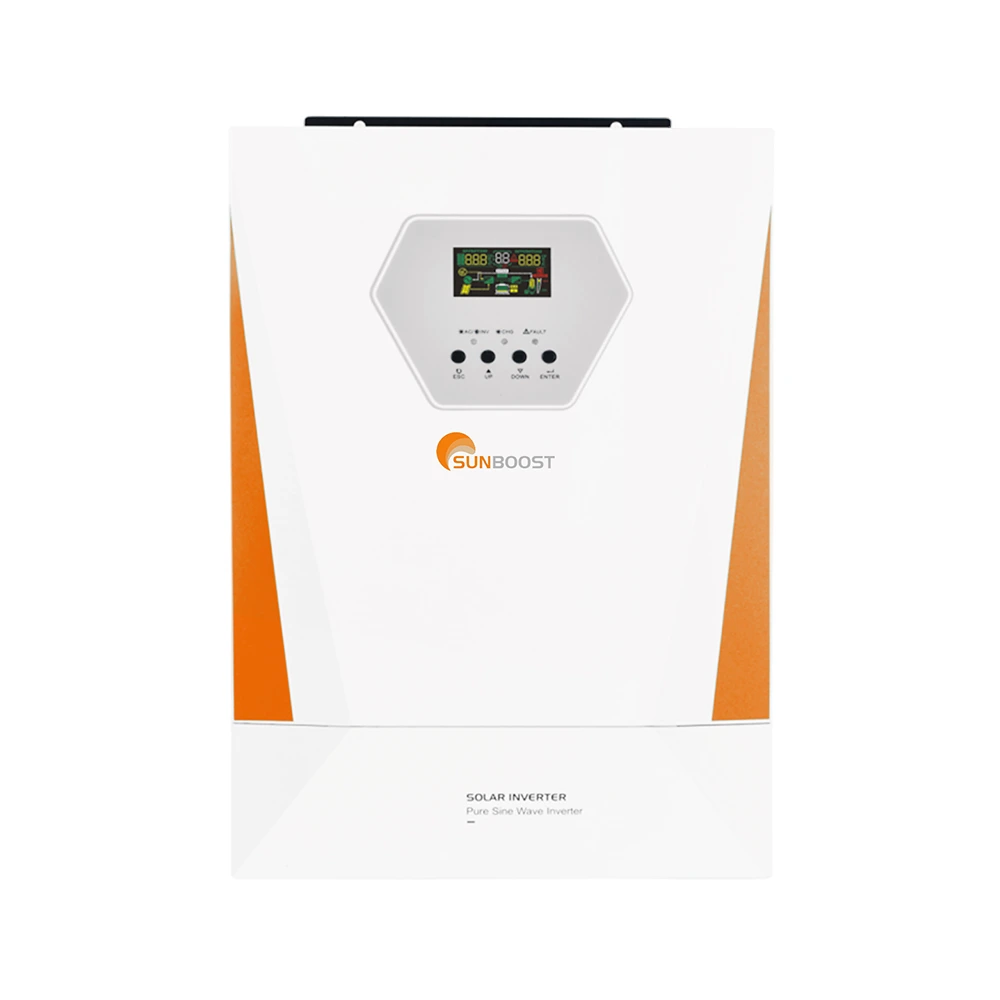

GD JMS Series - 3.6Kw~6.2Kw - On/Off grid hybrid inverter
Pure sine wave solar inverter
Communication Option: external WIFI, Supervise at Any Time
High Precision of Output Voltage±5%, take care of your appliances
Support Max 9 units work in parallel, parallel function for optional
Battery reverse connection protection with fuse switch, safer installation
Support Working Without Battery: Reduce solar system cost
- GD-3624JMS
- GD-5548JMS
- GD-6248JMS
Products Details
-Light weight, Small size
-Support a variety of communication protocols,support RS485, RS232, CAN etc
-Cycle life up to 6000 times
-Compatible with a variety of inverters
-Intelligent battery management system
-In the extreme performance safety test, thebattery will not catch fire, explode, leak, andbe safer to use.
Related Parameters
| Model | GD-3624JMS | GD-5548JMS | GD-6248JMS |
| Rated Power | 3600W | 5500W | 6200W |
| Input Voltage | |||
| Input Formation | L+N+PE | ||
| Ac Input | 220/230/240VAC | ||
| Input Voltage Range | 90~280VAC±3V(Normal Mode) 170-280VAC±3V(USP Mode) | ||
| Frequency | 50/60Hz (Adaptive) | ||
| Output | |||
| Output Voltage | 220/230/240VAC±5% | ||
| Output Frequency | 50/60Hz±0.1% | ||
| Transfer Time(Adjustable) | 10 ms For Computer equipment;20 ms For Household equipent | ||
| Peak Power | 7200VA | 10000VA | 12400VA |
| Overload Ability | Battery Mode : 21s@105% ~150% Load 11s@150%-200% Load 400ms@> 200% Load | ||
| Rated Voltage | 24VDC | 48VDC | 48VDC |
| Battery | |||
| Constant Charging Voltage(Adjustable) | 28.2VDC | 56.4VDC | 56.4VDC |
| Float Charging Voltage (Adjustable) | 27VDC | 54VDC | 54VDC |
| Pv Chargin Method | MPPT | ||
| Charger | |||
| Max Pv Input | 4200W | 5500W | 5500W |
| Mppt Tracking Range | 120~500VDC | 90~500VDC | 90~500VDC |
| Best Vmp Working Range | 300~400VDC | 300~400VDC | 300~400VDC |
| Max Pv Input Voltange | 500VDC | 500VDC | 500VDC |
| Max Pv Input Current | 18A | ||
| Max Pv Charge Current | 120A | ||
| Max Ac Charge Current | 100A | 100A | 100A |
| Max Charge Current | 120A | ||
| Display | |||
| LCD | Can display operating mode/load/input/output | ||
| Interface | |||
| Rs232 | 5PIN/Pitch2.54mm, Baud Rate 2400 | ||
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card,WIFI 2x 5PIN/ Pitch2.54mm | ||
| Ambient Temperature | |||
| Operating Temperature | -10℃~50℃ | ||
| Storage Temperature | -15℃~60℃ | ||
| Dimension | |||
| L*W*H | 495*312*146mm | ||
| Wight | 11.2kg | 11.85kg | 12.43kg |
Product Details
--Lithium Battery Auto-restart Function,More Convenient for Lithium Battery Charging
--Intelligent Power Supply Mode, Intelligent Distribution of solal Panel/Mains/DatteryPower Shares
--PF1.0,High Effciency,Lower Consumption,Energy Conservation /EvironmentalProtection/Electricity Saving/Cost Saving
--Support Working without Battery:Reduce Solar System Gost
Products Advantages
--High/low temperature protection
--Voltage protection
--Reverse polarity
--Overload protection
--Short-circuit protection
--Overcurrent protection
