Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.
Company Advantages
· Sunboost hybrid solar inverter is developed by team of professionals by using the high grade material and modern technology as per with market prevalent norms.
· We implement quality control system to ensure products without defects.
· Sunboost Technology Co.Ltd always support its enterprise technical renovation for hybrid solar inverter.
Products Advantages
- 10 years Warranty.
- Max. PV input current 16A: compatible across All Power Ranges of Solar Panels.
- UPS Mode: Seamless transition to backup mode to assure an uninterrupted power supply.
- Wide PV input range : 40-600 Vdc, 40V means one single solar pane lcan make it work.
- Twice Of Energy Potential : PV Input Power is Twice Of ACOutput Power, enabling more solar energy input.
- Protection: Anti-islanding Protection, Insula-tion Resistance Detection and Leakage monitoring protection.
Product Specifications

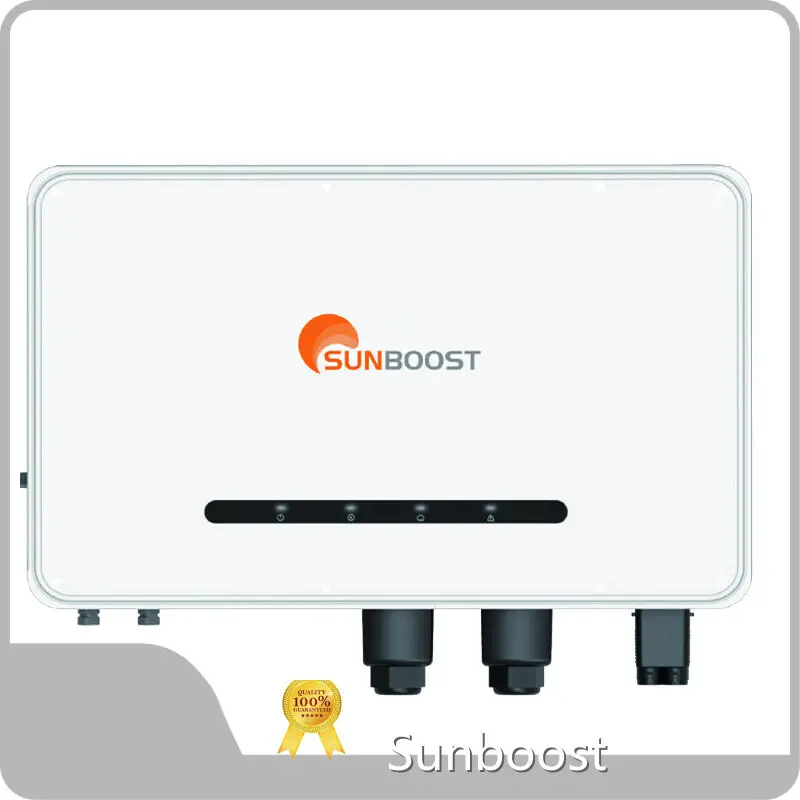

Single Phase Hybrid Inverter-TG-HYB | ||||||
MODEL TG-HYB-3600 TG-HYB-5000 TG-HYB-6000 | ||||||
PV INPUT(DC) | ||||||
Recommend max.PV input power 8700Wp | 10000Wp | 11000Wp | ||||
Max.PV input voltage | 600V | |||||
Min.operation/Start-up Voltage | 40V/50V | |||||
ated PV input voltage | 360V | |||||
MPPT Voltage Range | 40-560V | |||||
No.of independent MPPT inputs | 2 | |||||
Max. PV input current | 16A | |||||
Max. DC short-circuit current | 20A | |||||
INPUT/OUTPUT(AC) | ||||||
Max.AC input power from grid | 8700VA | 10000VA | 11000VA | |||
Rated AC output power | 3680W | 5000W | 6000W | |||
Rated AC output current (at 230V) | 16A | 21.8A | 26. 1A | |||
Rated AC voltage | 220V/230V/240V | |||||
AC voltage range | 154V~276V | |||||
Rated grid frequency | 50Hz/60Hz | |||||
Grid frequency range | 45~55Hz/55~65Hz | |||||
EFFICIENCY | ||||||
Max.efficiency | 97.70% | |||||
European efficiency | 97.30% | |||||
PROTECTION&FUNCTION | Grid monitoring/DC reverse polarity protection/AC short circuit protection/Leakage current protec-tion /DCs witch(PV)/DC fuse(battery)/Battery input reverse polarity protection | |||||
SurgeProtection | DC typeⅡ/AC typeⅡ | |||||
BATTERY DATA | ||||||
Battery Type | Li-ion battery | |||||
Battery voltage | 40-59V | |||||
Max.charge/discharge current | 100A | |||||
Max.charge/discharge power | 5000W | |||||
GENERAL DATA | ||||||
Dimensions(W*H*D) | 600*365*180mm | |||||
Weight | ≤25kg | |||||
Degree of protection | IP65 | |||||
Operating ambient temperature range | -25℃~60℃ | |||||
BACKUP DATA(ONGRIDMODEL) | ||||||
Rated | output power for backup load | 6000W | ||||
Rated | output current for backup load | 27A | ||||
BACKUP DATA(OFF GRID MODEL) | ||||||
Rated voltage | 220V/230V/240V(±2%) | |||||
Frequency range | 50Hz/60Hz(±0.5%) | |||||
Switch time to emergency model | ≤10ms | ≤10ms | ≤10ms | |||
Rated output power | 3680W/3680VA | 5000W/5000VA | 6000W/6000VA | |||
Peak output power | 8400VA, 10s | |||||
Certifications and Standards | ||||||
Grid Regulation | EN50549- 1, EN50549- 10, PTPiREE, NCRFG, VDE4105, AS/NZS 4777.2, NRS-097-2- 1 | |||||
Safety Regulation | IEC62109- 1&2, EN62109- 1&2 | |||||
EMC | EN61000-6- 1, EN61000-6-3, IEC61000-6- 1, IEC61000-6-3 |
Company Features
· With the support of our trusted customers, Sunboost has gained more reputation in the hybrid solar inverter market.
· Our factory is located in a place where has industrial clusters and it enjoys production resource advantages. This directly helps the factory save costs in sourcing raw materials. Covering a large area, our factory features reasonable production conditions. Its layout is in line with international regulations and standards, including illumination condition and standard production facilities. We have employed an integrated design team in our factory. They are good at flexible design. This enables us to design new products and can be adaptable a range of products per customers' specifications.
· All workers work for Sunboost will make unremitting efforts to climb the summit of this business. Get quote!
Product Details
Sunboost's hybrid solar inverter has been greatly improved in the following details.
Application of the Product
Sunboost's hybrid solar inverter can be used in different fields.
Sunboost always provides customers with reasonable and efficient one-stop solutions based on the professional attitude.
Product Comparison
Sunboost's technical level is higher than its peers. Compared with peer products, the hybrid solar inverter produced by us has the following highlights.
