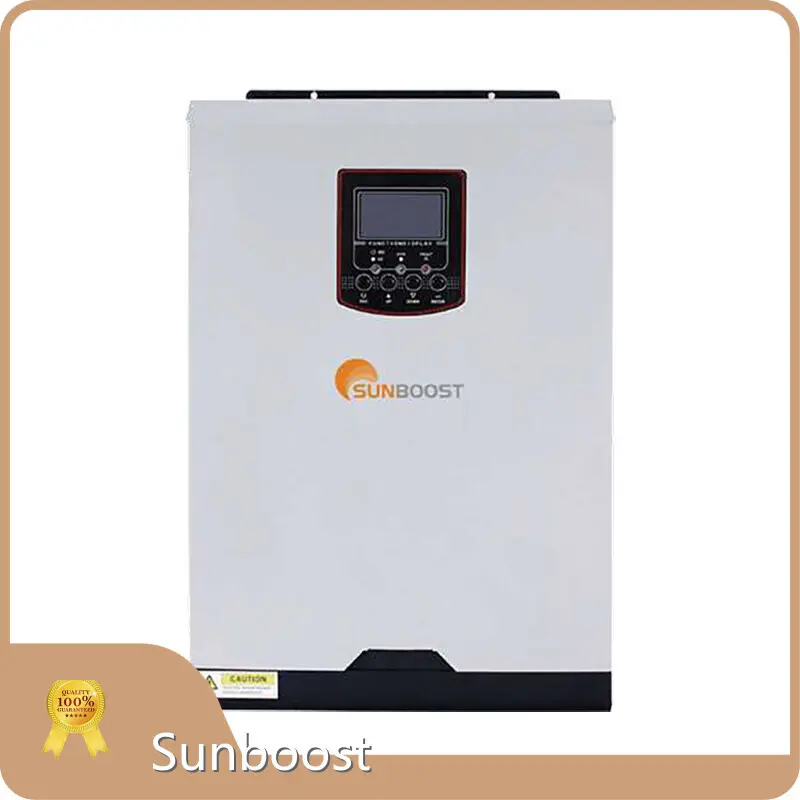

on Off Grid Inverter by Sunboost
Product details of the on off grid inverter
Product Overview
Sunboost on off grid inverter is designed by our designers who are actively developing new products based on the spirit of innovation. The reliability of the product translates into a low cost of ownership. Sunboost's on off grid inverter can be applied to different fields and scenes, which enables us to meet different requirements. Sunboost Technology Co.Ltd is committed to providing its customers with the best on off grid inverter in the world, thus promoting the development of advanced technologies.
Product Description
More detailed information about on off grid inverter will be shown below for you.
Product Features
● Off-grid inverter, support mains and photovoltaic solar tow input
● DPS digital control technology, double transform online design, using input PFC technology, input
power up to 0.99, efficient inverter topology, higher output efficiency
● The battery equalization function optimizes battery performance for higher energy storage efficienc
● Mains/ pv/ battery/ multimode optimal output
● Support battery cold start
● Built-in dust-proof net suite, suitable for bad environment
● Support external WIFI module, can use mobile APP remote monitoring (optional)
Product Specifications
| MODEL | VMII Plus 3.5KW | VMIl Plus 5.5KW | ||
| Rated power | 3500VA | 5500VA | ||
| Ac input | ||||
| Voltage | 230VAC | 230VAC | ||
| Voltage range | 170-280Vcr(Suitclefor persond computers)30-280Vax(Suitcbie for houschold cpplicnoes | 170-280Vcr(Suitclefor persond computers)90-280Vax(Suitcbie for houschold cpplicnoes) | ||
| Frequency range | 50Hz/60Hz | 50Hz/60Hz | ||
| pv input | ||||
| Maximum photovoltaic array power | 5000W | 5500W | ||
| The largest photovoltaic array | 500VDC | 500VDC | ||
| open-circuit valtage | ||||
| MPPT @working voltage range | 120VDC-450VDC | 120VDC-450VDC | ||
| The rated voltage | 240V | 360V | ||
| Number of MPPT | 1 | |||
| Output Paramenters | ||||
| PV/battery mode | ||||
| Voltage | 230V±5% | 230V±5% | ||
| Frequency | 50/60HZ | 50/60HZ | ||
| Ffhciency | 93% | 93% | ||
| Maximum output power | 3500W | 5500w | ||
| Conversion time | 10ms(Typical UPS) | 10ms(Typical UPS) | ||
| 20ms(Household appliance) | 20ms(Household appliance) | |||
| Harmonic | 3% | 3% | ||
| Overload capacity 5s@≥150%load;10s@110%-150%load | 5s@≥150%load;10s@110%-150%load | |||
| The utility model | ||||
| Voltage | 230V±5% | 230V±5% | ||
| Frequency | 50Hz | 50Hz | ||
| Efficiency | 95% | 95% | ||
| Battery | ||||
| Battery voltage | 24V | 48V | ||
| Charging mode | Athree-stage charging | Athree-stage charging | ||
| Maximum charging current (MPPT) | 80A | 80A | ||
| Maximum charging current | 80A | 80A | ||
| Maximum charging current | 100A | 100A | ||
| Cold start voltagez | 23V | 46V | ||
| The battery type | Lead acid and lithium electricity | Lead acid and lithium electricity | ||
| Protection function | Output short circuit overload over temperature protection, and other functions | Output short circuit overload over temperature protection, and other functions | ||
| Communication port | RS232, USB | RS232, USB | ||
| The work environment | ||||
| Working temperature | -10c-50℃ | -10c-50℃ | ||
| Storage temperature | -15℃-60 ℃ | -15℃-60 ℃ | ||
| Relative humidity | 5%-95% | 5%-95% | ||
| Physical | ||||
| Size (D/W/H) | 465×305×110mm | 465×305×110mm | ||
| Net weight (KG) | 9.5 | 10.5 | ||
