Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.

sales@sun-boost.com

+86-137 6041 3751

SD A1 Series - 300Ah~400Ah - HV Stackpower Energy Storage Battery System 1
SD A1 Series - 300Ah~400Ah - HV Stackpower Energy Storage Battery System 2
SD A1 Series - 300Ah~400Ah - HV Stackpower Energy Storage Battery System 3
SD A1 Series - 300Ah~400Ah - HV Stackpower Energy Storage Battery System 4
SD A1 Series - 300Ah~400Ah - HV Stackpower Energy Storage Battery System 1
SD A1 Series - 300Ah~400Ah - HV Stackpower Energy Storage Battery System 2
SD A1 Series - 300Ah~400Ah - HV Stackpower Energy Storage Battery System 3
SD A1 Series - 300Ah~400Ah - HV Stackpower Energy Storage Battery System 4

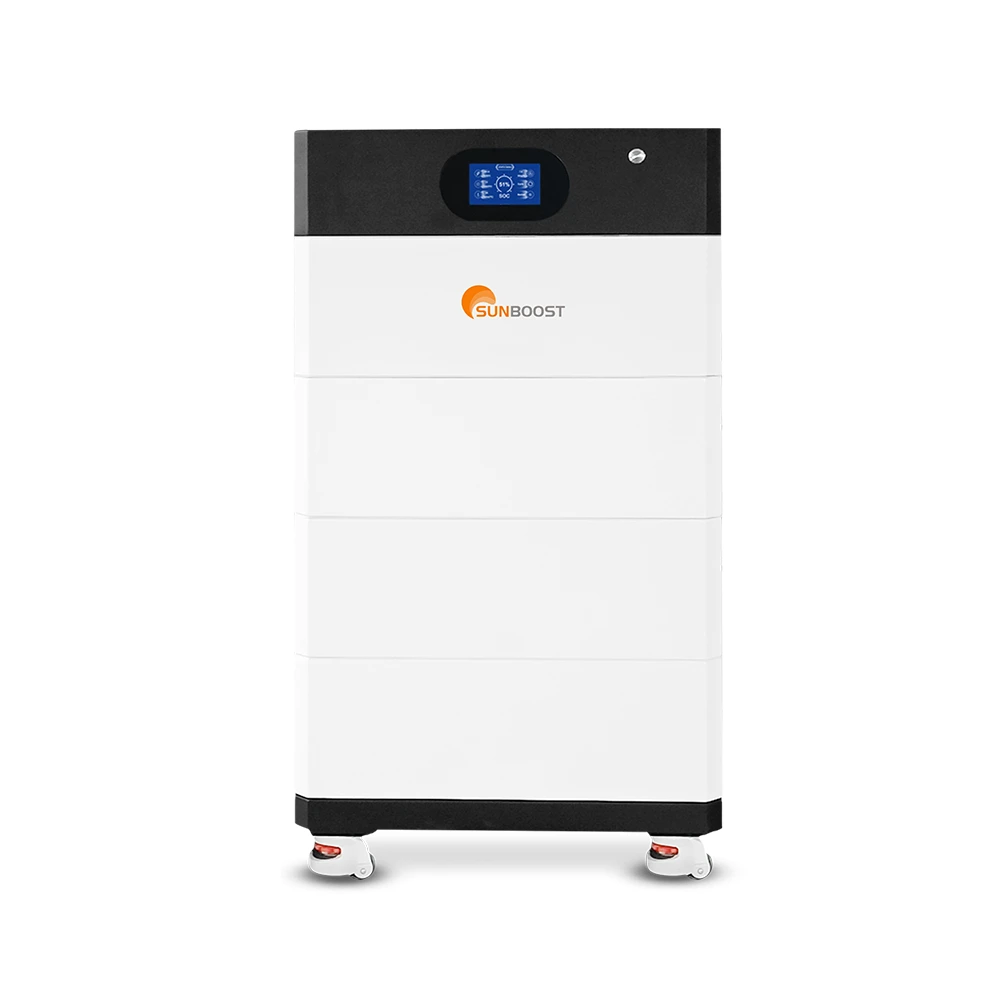

SD A1 Series - 300Ah~400Ah - HV Stackpower Energy Storage Battery System

Popular Product: Hot sale with 100,000+ units sold
Cost Effective: Lower cost by 20%+with same top quality
Cost Advantage:Utilizing annual procurement and in-house casing production for cost a dvantages
Proven Per formance: Over 5 years of usage validation with excellent operation, safety , stability , and reliability
Proven Performance: A variety of energy design are available for selection

    oops...!

    no product data.

    Go to homepage

    HV Stackpower Energy Sorage Battery System

    Product Description

    -- High Capacity Energy Storage: This all-in-one home energy storage battery offers a stackable design with capacities ranging from 5kWh to 50kWh, allowing users like John to efficiently store excess energy generated by their solar panels and reduce their reliance on the grid.


    -- Advanced Communication System: The battery features a robust --communication system with CAN, RS232, and RS485 ports, enabling seamless integration with various systems and ensuring remote monitoring and control.



    -- Long-Lasting Lithium-Ion Battery: With a warranty of 5 years, the lithium-ion battery is built to last, providing a reliable source of energy storage for homes like yours.

    3 (15)

    Product Specifications

    Product Number EH-204V050-SPH1 EH-307V050-SPH1 EH-409V050-SPH1
    Capacity(kwh) 10 15 20
    Nominal Voltage(V) 204 307 409
    Rated Capacity(Ah) 50
    Charge Cut-Off Voltage (V) 232 350 466
    Discharge Cut-Off Voltage (V) 169 255 339
    Standard Charging Current(A) 25
    Max Charging Current(A) 50 100 100
    Standard Discharge Current(A) 25
    Maximum Discharge Current(A) 50 100 100
    Maximum Peak Current(A) 100
    Communication RS485/CAN
    Cycle Life ≥4000cyles(25℃,80%DOD,60%EOL)
    Design Life ≥15Years(25℃)
    Protection BMS,Breaker
    IP Rating IP55
    Shell Material/Color Metal/White
    Color Size(mm) 580*360*570mm 580*360*720mm 580*360*870mm
    Weight(kg) 100 141 280
    Operating temperature(℃) Charge:0℃-50℃ Discharge:-15℃-60℃

    PRODUCT STRENGTH

    Products Advantages

    环保达标
    Environmentally friendly backup power system
    性能
    Stable Performance: Operates smoothly
    图层
    Convenient: Stackable & compact design, easy installation
    icon-14
    Compatible with 20+ global mainstream inverters
    icon-23
    Rainproof Protection: IP65, suitable for indoor and outdoor applications
    icon-04
    Long cycle life

    WHY CHOOSE US?

    Product Characteristics

    -- Off-Grid and Hybrid Grid Compatibility: This battery system is designed for both off-grid and hybrid grid connections, making it suitable for homes that require a reliable energy source during power outages or those looking to reduce their reliance on the grid.


    -- Compact Design: Despite its high capacity, the battery measures only 585x360x570mm, making it a space-efficient solution for homes with limited storage space.

    EH-SPH1-06

    Product Details

    EH-SPH1-08
    LCD display, LED indication, integrated into one, Real time monitoring battery status
    EH-SPH1-09
    Each module with 5Kwh capacity, arbitrary stacking
    EH-SPH1-10
    Load bearing casters for easy movement
    EH-SPH1-07

    About this product

    MODULAR DESIGN

    Modular design, light weight, small size


    LONG SERVICE LIFE

    More than 20 years long service life


    HIGH COMPATIBILITY BMS

    High compatibility BMS, seamless communication with energy storage inverter


    CHARGE & DISCHARGE CYCLE

    Suitable for long-term charge and discharge cycle

    FAQ

    Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.

    1
    How to install and use the solar inverter?
    We have the English teaching manual, All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
    2
    What if I don't have export experience ?
    We have reliable forwarder agent which can ship items to you by sea/air/Express to your door. Any way, we will help you choose the most suitable shipping service.
    3
    We want to know month capacity.
    20000-30000PCS per Month.
    4
    How is your technical support?
    We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime.
    5
    Can you get the the solar inverter customized for us ?
    Of course, brand name, machine color, designed unique patterns available for customization.
