Sunboost IP65 12KW Three Phase Hybrid Solar Inverter Touch LCD 10KW Low Voltage Support Parallel

Sunboost

Sunboost IP65 12KW Three Phase Hybrid Solar Inverter Touch LCD 10KW Low Voltage Support Parallel

$1,739.00

$2,783.00

Save 38%

Type: Three Phase

Three Phase

Power: 12KW

12KW

Quantity:

Sunboost Sunboost IP65 12KW Three Phase Hybrid Solar Inverter Touch LCD 10KW Low Voltage Support Parallel

$1,739.00

$2,783.00

Product Attachments

PDF Datasheet B01-TPM-123G-EU-S

Advanced Three-Phase Power Management

Featuring 100% three-phase unbalanced output capability, this system maintains stable operation even with significantly uneven phase loading. The transformer isolation design ensures complete galvanic separation between DC and AC circuits, providing superior safety and power quality. With support for up to 10 units in parallel configuration for both on-grid and off-grid applications, the system delivers exceptional scalability while maintaining synchronized phase coordination across all connected units, making it ideal for complex commercial and industrial energy systems.

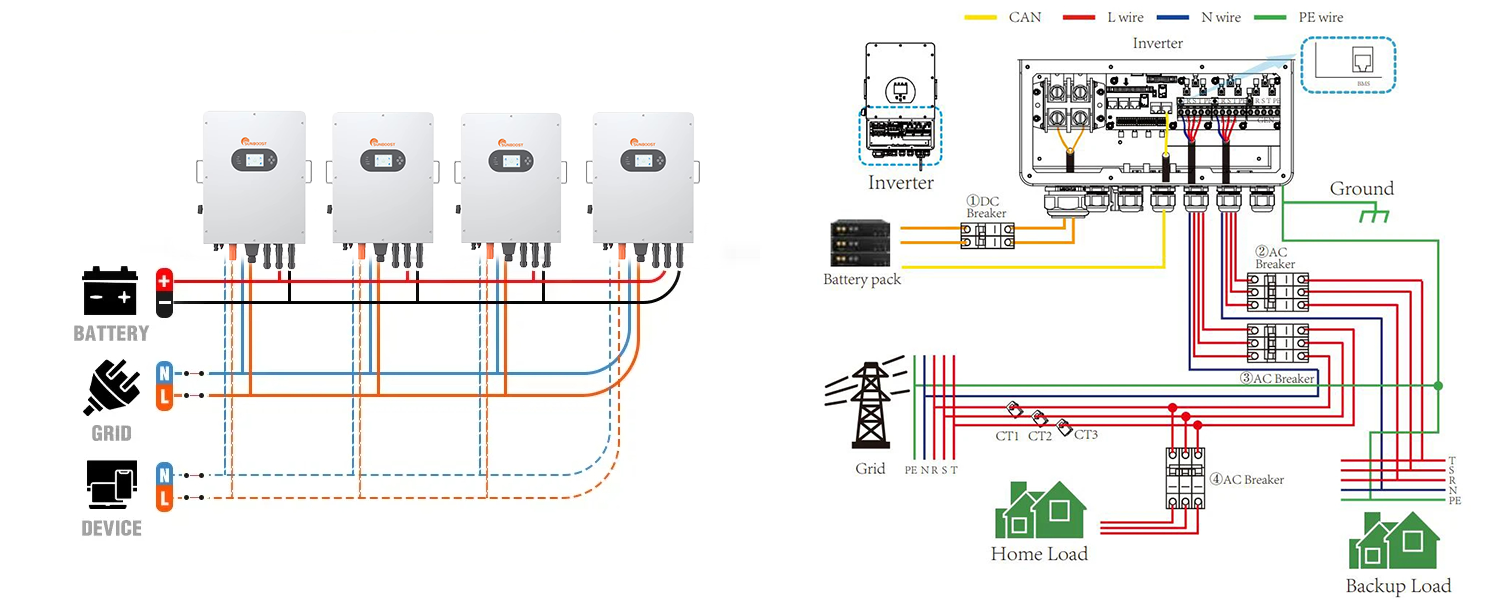

Flexible System Integration & Retrofit Capability

The inverter's AC coupling technology enables seamless integration with existing solar installations, allowing for straightforward system upgrades without modifying existing PV infrastructure. This retrofitting capability extends to supporting multiple battery banks in parallel, working with standard 48V low-voltage battery systems while maintaining compatibility with various energy sources including diesel generators. The system can store generator-produced energy efficiently, providing comprehensive energy management solutions for hybrid power applications.

Intelligent Energy Management & Control

Equipped with sophisticated programming capabilities, the inverter features six configurable time periods for precise control of battery charging and discharging cycles. With a maximum charging/discharging current of 240A, the system supports rapid energy transfer while maintaining optimal battery health through intelligent current regulation. This advanced energy management enables users to implement complex energy strategies, including peak shaving, time-of-use optimization, and backup power configuration, all accessible through an intuitive user interface for complete operational control.

Specification

Model

B01-TPM-123G-EU-S

Rated AC Output Power

12000W

Rated PV Input Voltage

800V

Start-up Voltage

160V

MPPT Voltage Range

200~650V

FAQs

How is your technical support?

We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime.

Can you get the the solar inverter customized for us ?

Of course, brand name, machine color, designed unique patterns available for customization.

How to install and use the solar inverter?

We have the English teaching manual, All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.

What if I don't have export experience ?

We have reliable forwarder agent which can ship items to you by sea/air/Express to your door. Any way, we will help you choose the most suitable shipping service.

What is the correct order to connect my solar system?

When installing a solar power system, connect components in this order:
1) Batteries,

2) Charge controller/inverter charger

3) Solar panels (to PV input)

4) Inverter/AC loads

Always verify polarity, voltages, and wire sizing for safety.
When disconnecting, reverse the order.
