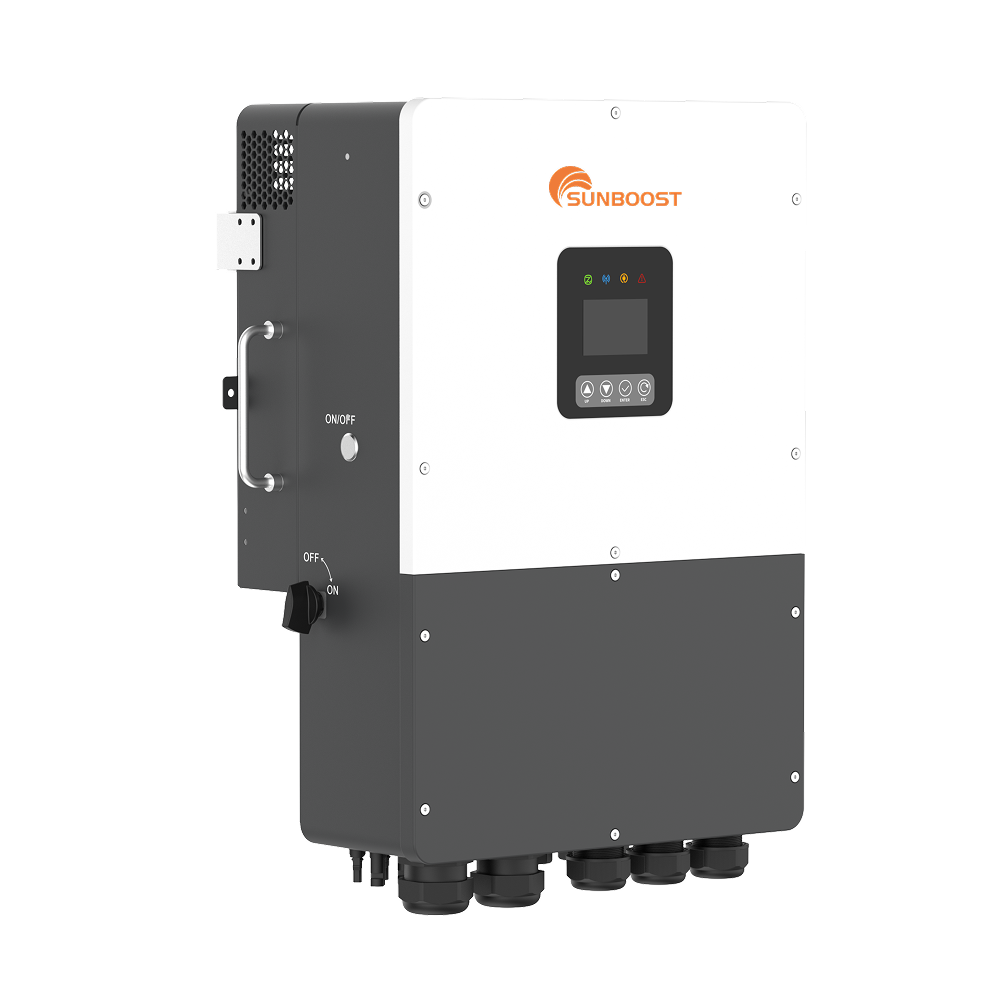

Sunboost Inverter 15Kw 18Kw 20Kw 24Kw Three-Phase Low Voltage High-Efficiency 50/60Hz Hybrid Solar Inverter 99% Built-In SPD

This characteristic combines high-performance power electronics with a durable enclosure for extreme reliability. The inverter utilizes advanced Silicon Carbide (SiC) semiconductors, which enable exceptional switching efficiency and reduced heat loss compared to traditional silicon-based designs. This is housed in a full aluminum chassis, providing superior heat dissipation for sustained full-load operation at temperatures up to 45°C without derating, while keeping the unit lightweight. The assembly is fully sealed to achieve an IP66 protection rating, ensuring complete defense against dust ingress and powerful water jets, making it suitable for installation in demanding outdoor environments. This synergy of efficient SiC technology and robust physical construction forms the foundation for high, reliable power output.

This feature encompasses the inverter's sophisticated ability to connect seamlessly and safely with various grid conditions and existing systems. It boasts wide grid adaptability, accepting a broad per-phase input voltage range of 154V to 286V with automatic 50/60Hz frequency adaptation, ensuring stable operation in areas with poor or fluctuating grid quality. A built-in Surge Protection Device (SPD) safeguards the unit from voltage spikes. Furthermore, it offers flexible system expansion through AC coupling capability, allowing for easy retrofitting with existing solar installations. Its parallel functionality supports the scaling of power capacity by connecting up to 8 units together, providing a future-proof solution for growing energy needs.

This characteristic defines the inverter's powerful and versatile handling of energy storage and delivery. It features high battery compatibility, supporting a maximum charge/discharge current of 500A and the connection of three independent battery inputs, enabling rapid charging and the use of multiple or mixed battery banks. The unit delivers high surge and unbalanced output capacity, providing 2 times the rated load surge for 10 seconds to start demanding motors and supporting 150% three-phase unbalanced output without shutdown. This ensures reliable power for heavy-duty applications and in situations where load distribution across phases is uneven, guaranteeing continuous operation for critical loads.
