Sunboost 3.6KW 5.5KW 6.2KW Split Phase Inverter 120V 240V Hybrid Solar Power Inverter US Version for Home Use MPPT Solar Charger
Sunboost 3.6KW 5.5KW 6.2KW Split Phase Inverter 120V 240V Hybrid Solar Power Inverter US Version for Home Use MPPT Solar Charger
Sale price$341.00
Regular price$749.00

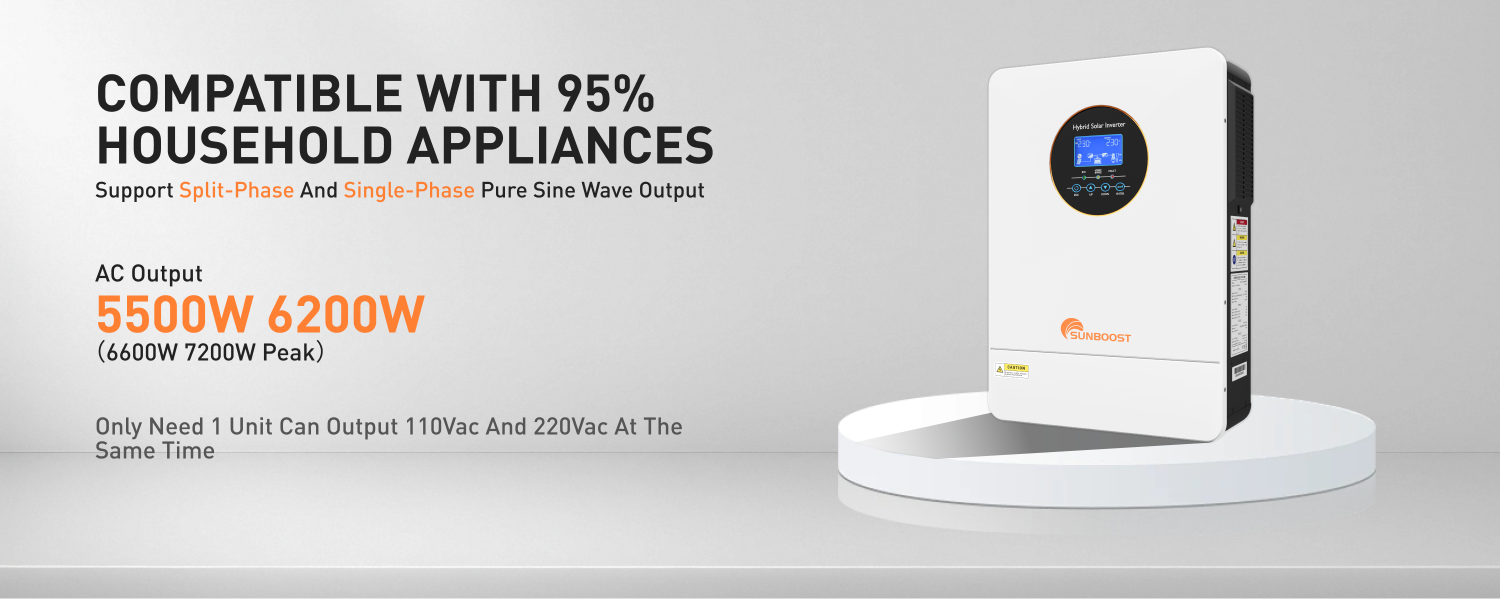

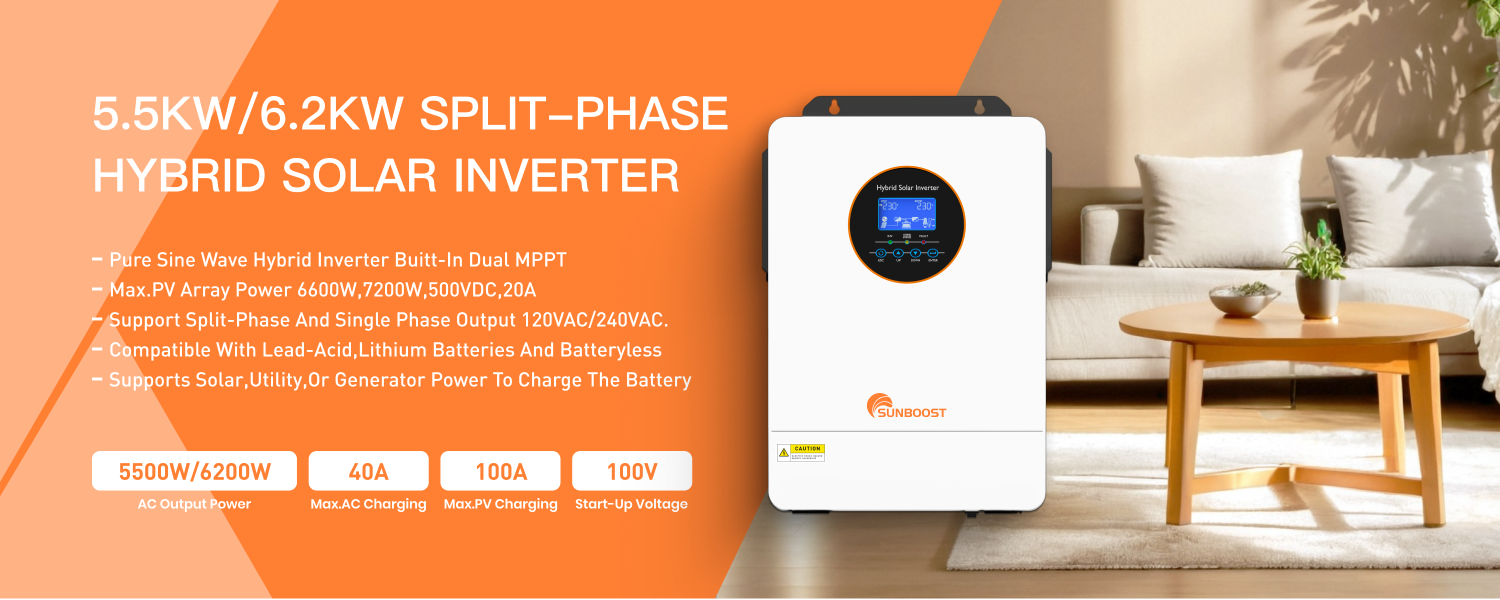

Split Phase Hybrid Solar Inverter 5.5KW 6.2KW
This inverter offers versatile AC output configurations, supporting both standard 120Vac single-phase for common household appliances and 240Vac split-phase for well pumps, dryers, and other high-power equipment. This dual-output capability provides significant installation flexibility, making the unit suitable for a wide range of residential and light-commercial applications in North America and other regions utilizing split-phase power distribution systems.
Built-in Dust Proof Components
The inverter is equipped with an integrated air filtration system designed to mitigate the ingress of dust and particulate matter. This robust construction is essential for reliable operation in challenging environments such as construction sites, agricultural settings, or industrial facilities. The dust-proof components protect internal circuitry and power semiconductors from contamination, thereby preventing overheating and ensuring long-term system stability while reducing maintenance frequency.

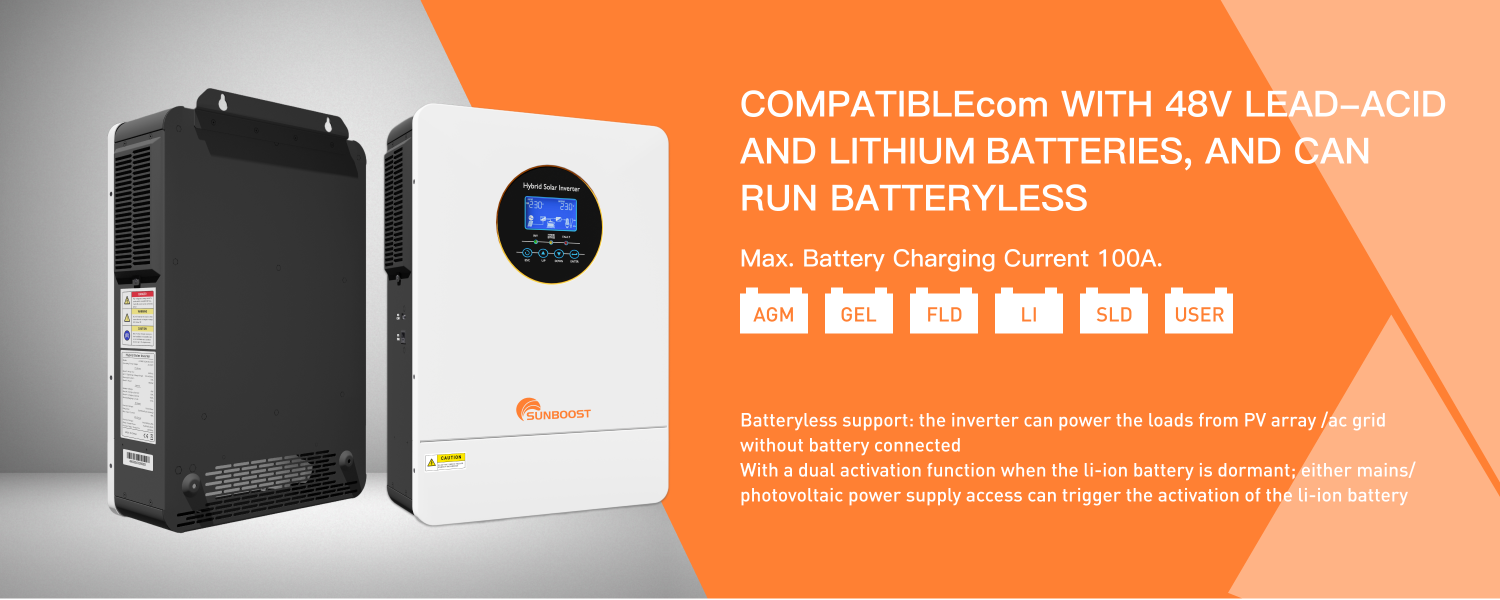

Capable to Operate Without Battery
Engineered with a unique grid-interactive or hybrid topology, this inverter can directly convert solar PV energy to usable AC power without the mandatory use of a battery bank. This "battery-less" operation mode significantly reduces initial system cost and maintenance, making it an ideal solution for self-consumption optimization where the primary goal is to offset grid electricity consumption during daylight hours.
Excellent Solar MPPT Performance, Efficiency up to 99%
The advanced multi-stage MPPT algorithm dynamically and precisely scans the I-V curve of the PV array to lock onto the true global maximum power point, even under partial shading or complex, changing weather conditions. With a peak MPPT efficiency of up to 99%, it minimizes power losses during the conversion process from DC to AC, guaranteeing that nearly all available solar energy is captured and utilized, thereby maximizing the return on investment.

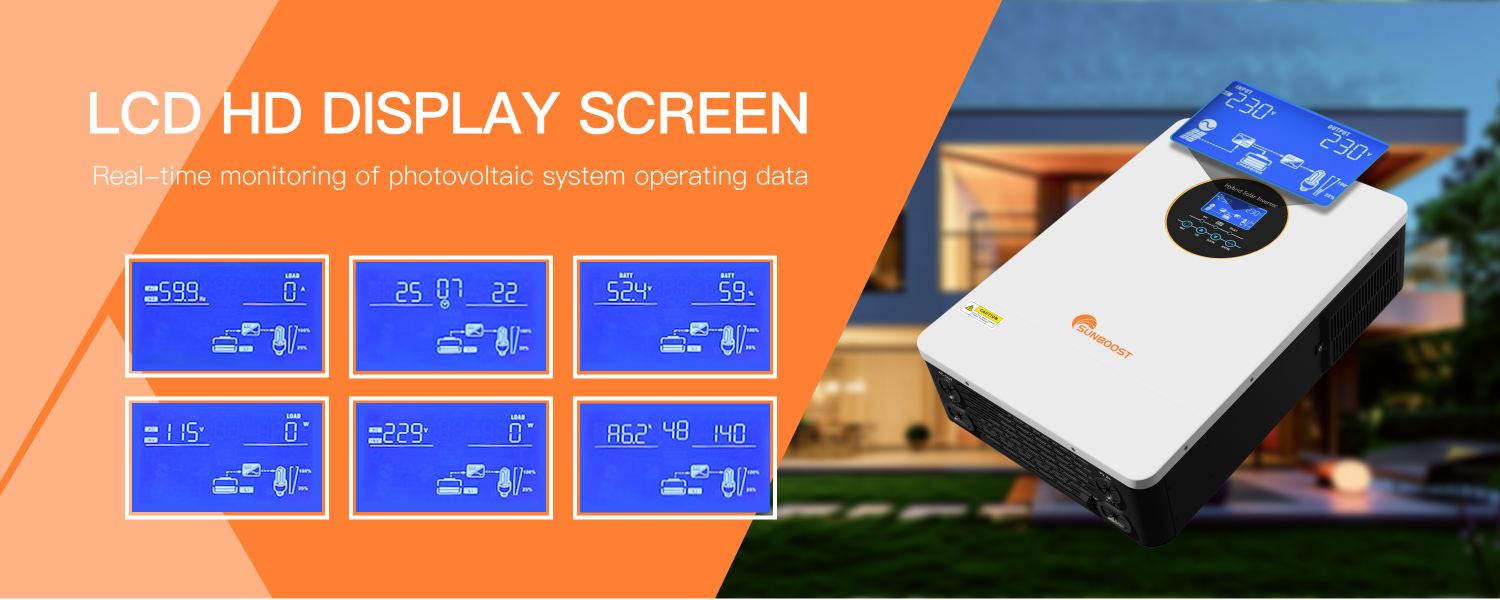

PV Generated Energy Total and Daily Information
The system includes comprehensive data monitoring and logging capabilities. It provides users with clear, accessible metrics for both the total historical energy produced by the PV system and the daily energy yield. This information is crucial for monitoring system health, verifying performance, and analyzing long-term energy savings, typically accessible via a user-friendly digital interface or a dedicated monitoring platform.
Wider PV Input Voltage Range: 100V~500Vdc
Featuring an exceptionally wide Maximum Power Point Tracking (MPPT) voltage window of 100 to 500 volts DC, this inverter offers superior design flexibility. It allows for longer strings of solar panels, which reduces balance-of-system costs by minimizing wire gauges and combiner box requirements. The wide range also ensures the inverter can start early in the morning and continue operating efficiently late into the afternoon, maximizing daily energy harvest from the PV array.
Battery Wake-up Function
This intelligent feature allows the inverter to automatically reactivate a deeply discharged battery that has entered a protective low-voltage shutdown mode. By applying a controlled "trickle" charge from the PV array, the inverter can safely restore the battery to a functional voltage level without requiring manual intervention. This protects the battery from being permanently stranded in a dormant state, enhancing system resilience.
Excess Solar Energy can be Powered to Grid (Settable)
In grid-tied applications, the inverter features a user-configurable export control function. When the on-site load demand is lower than the PV generation, the surplus clean energy can be selectively fed back into the utility grid. This not only can generate feed-in tariffs or credits but also supports the grid with renewable energy. The power export limits are settable, ensuring compliance with local utility regulations and requirements.

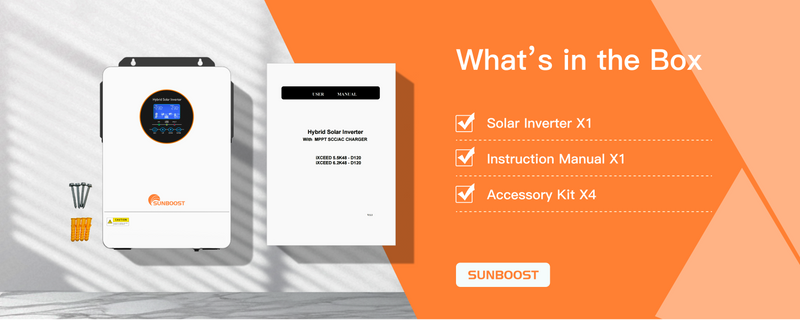

Packing Information
Specification
Model
iXCEED 5.5k/6.2k48-D120
Rated Load Power
5500W/6200W
Ac OutPut
120Vac±5%/240Vac±5%
Battery Voltage
48V
Max.AC Charging Current
40A
Max.PV Charging Current
100A
Max.Continuous Discharging Current
120A
Compatible Battery
LiFePO4 Batteries, AGM Batteries, Lithium Batteries, Flooded Batteries, Sealed Lead Acid Batteries, Gel Batteries,User Mode
