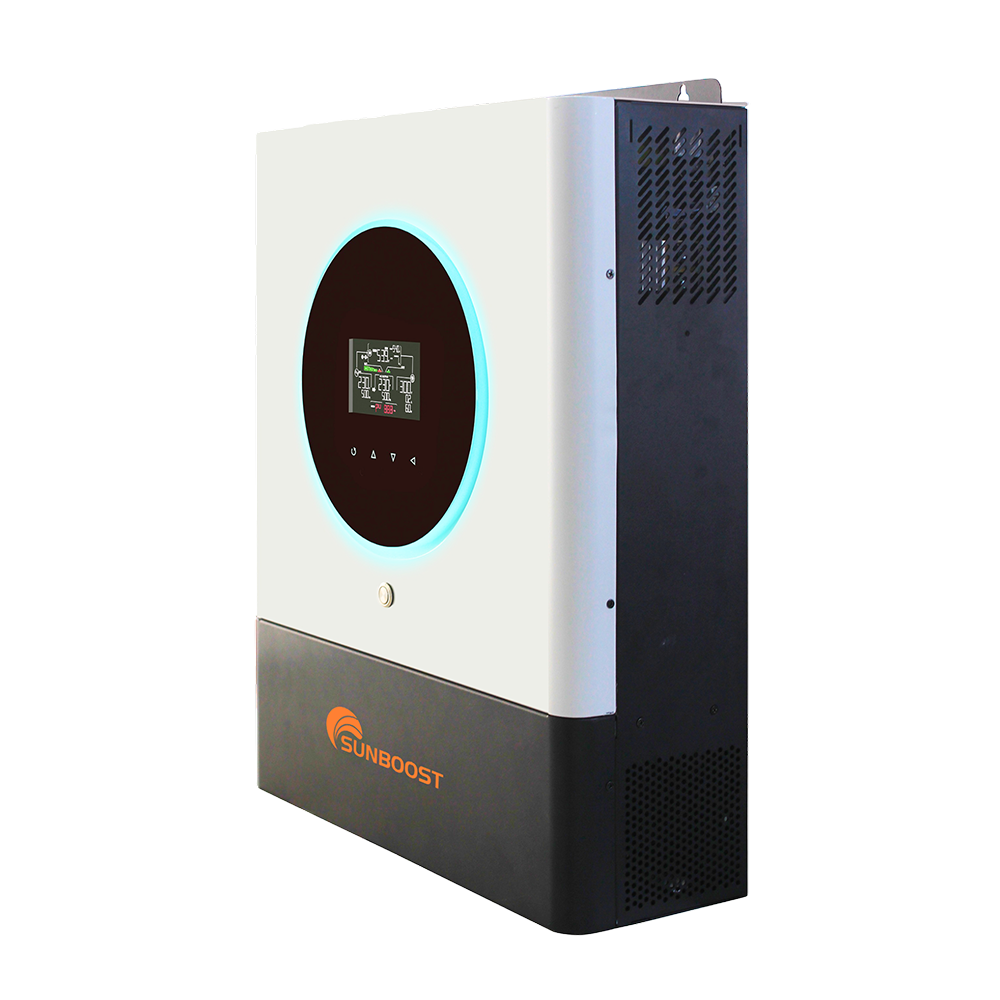

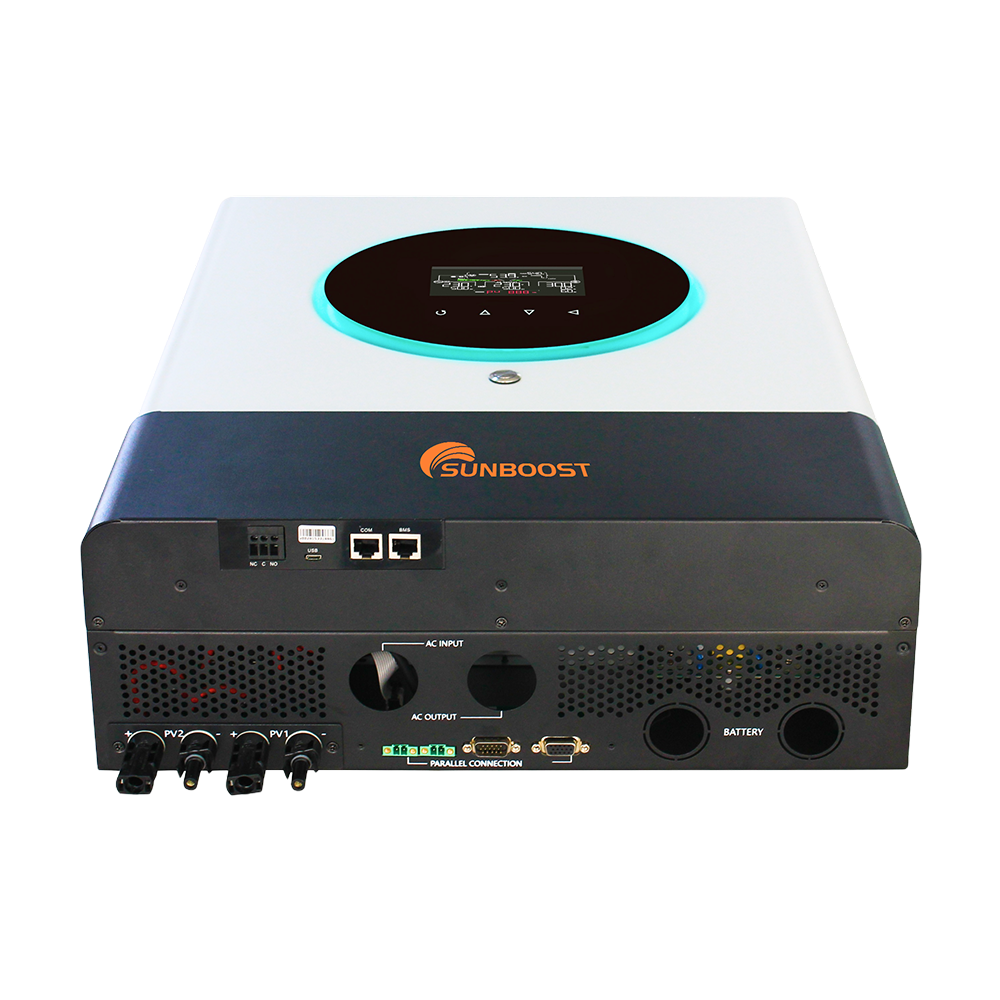

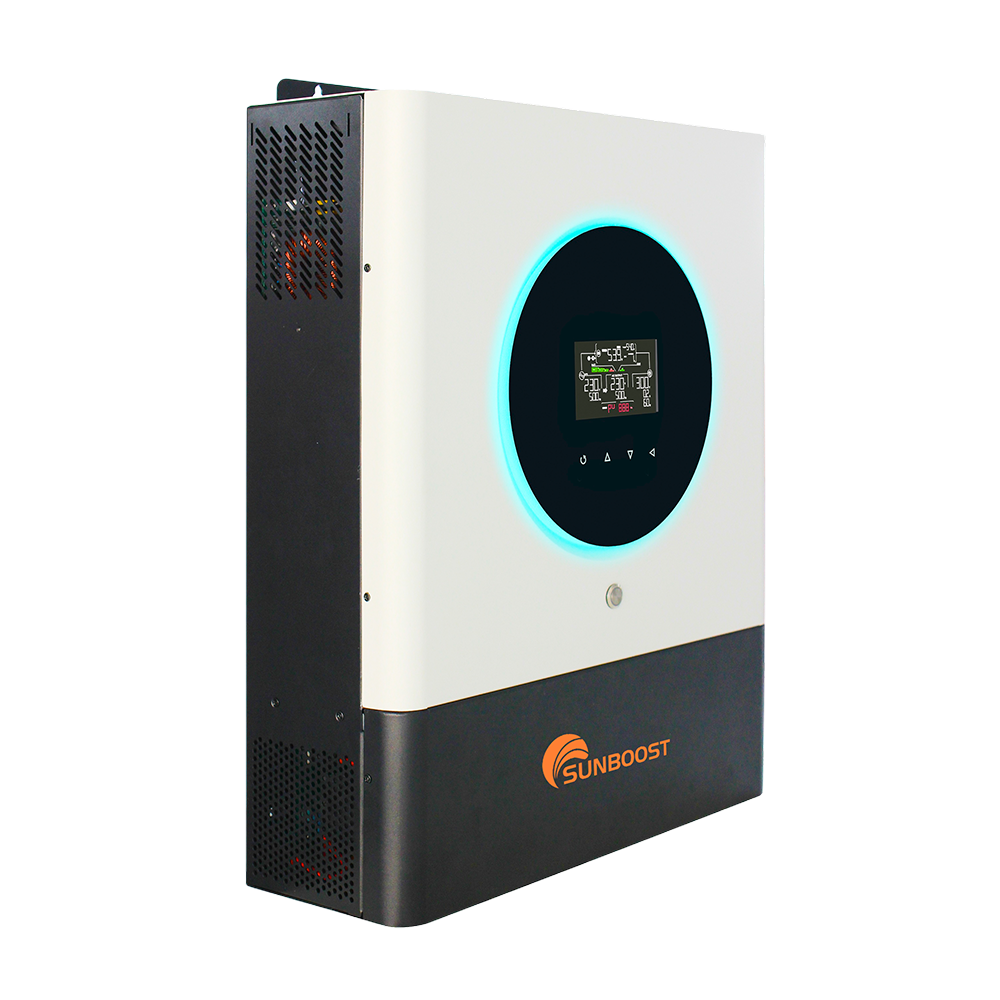

Sunboost 8KW 11KW Hybrid Solar Power Inverter Parallel 6pcs Inverter Built-In Wifi Large Color Lcd Touch Screen Solar Inverter
Sunboost 8KW 11KW Hybrid Solar Power Inverter Parallel 6pcs Inverter Built-In Wifi Large Color Lcd Touch Screen Solar Inverter
Sale price$529.00
Regular price$797.00
On/Off Grid Hybrid Solar Inverter 8KW 11KW
This inverter features two independent Maximum Power Point Tracking (MPPT) inputs, with a maximum total PV input power of 8000W or an optional high-power configuration of 11000W. Each tracker can handle 4000W or 5500W respectively, providing exceptional design flexibility. This dual-tracker architecture allows for the connection of PV arrays with different orientations, tilts, or shading conditions, ensuring that energy production is optimized independently for each string and maximizing overall energy yield.
High-Current Integrated MPPT Charge Controller (150A)
Equipped with a powerful, built-in MPPT solar charge controller rated at 150 amps, this inverter can support very rapid battery charging. This high-current capability is essential for large-scale off-grid or hybrid systems with substantial battery banks, significantly reducing recharge times and ensuring the batteries are quickly replenished to handle consecutive days of high load or limited sunlight.

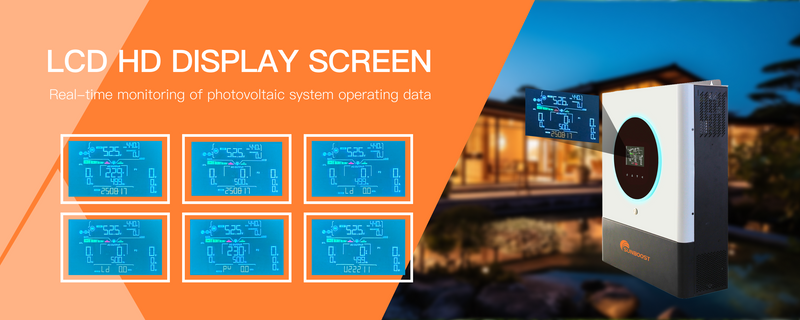

Removable LCD Display Panel
The inverter features a fully removable LCD interface panel. This design allows for flexible installation where the main unit can be placed in a discreet or harsh environment, while the display can be mounted in a convenient location for easy viewing and control. The removable panel also facilitates safer and easier firmware updates and system configuration away from the main inverter unit.
Wide PV Input Voltage Range (90-450 VDC)
The inverter operates with a wide MPPT voltage range of 90 to 450 volts DC. This high voltage window enables the use of longer series strings of solar panels, significantly reducing installation costs associated with wiring and combiner boxes. The high maximum voltage also improves overall system efficiency, while the low start-up voltage ensures energy harvesting begins early in the morning and continues late into the afternoon, extending daily power generation time.
Superior Low No-Load Loss Performance
Utilizing a robust low-frequency transformer design and optimized circuitry, this inverter exhibits exceptionally low power consumption in standby or no-load mode. Its no-load loss is significantly lower than that of high-frequency inverters of equivalent power rating. This high no-load efficiency minimizes parasitic energy drain from the batteries, which is critical for enhancing the overall autonomy and runtime of off-grid and backup power systems.
Integrated Wi-Fi for Remote Monitoring & Control
The unit comes with built-in Wi-Fi connectivity, enabling real-time remote monitoring and management via dedicated mobile applications for both Android and iOS platforms. Users can access key system parameters—such as PV generation, battery state of charge, and power output—receive instant alert notifications, and adjust basic settings from anywhere with an internet connection, ensuring full system transparency and proactive management.
Scalable Parallel Operation (Up to 6 Units)
The inverter supports parallel operation with up to six units, enabling a scalable power solution that can grow with energy demands. This parallel capability allows for the creation of a single, synchronized three-phase system or a high-capacity single-phase system, providing the power redundancy and system reliability required for critical commercial or residential applications.
Packing Information
Specification
Model
MAX II 8KW/11KW
Rated Load Power
8000W/11000W
Ac OutPut
230Vac±5%
Battery Voltage
48V
MPPT Working Voltage Range
90~450VDC
Max.PV Charging Current
150A
Max.PV Input Current
18A*2
Open Circuit Voltage
500VDC

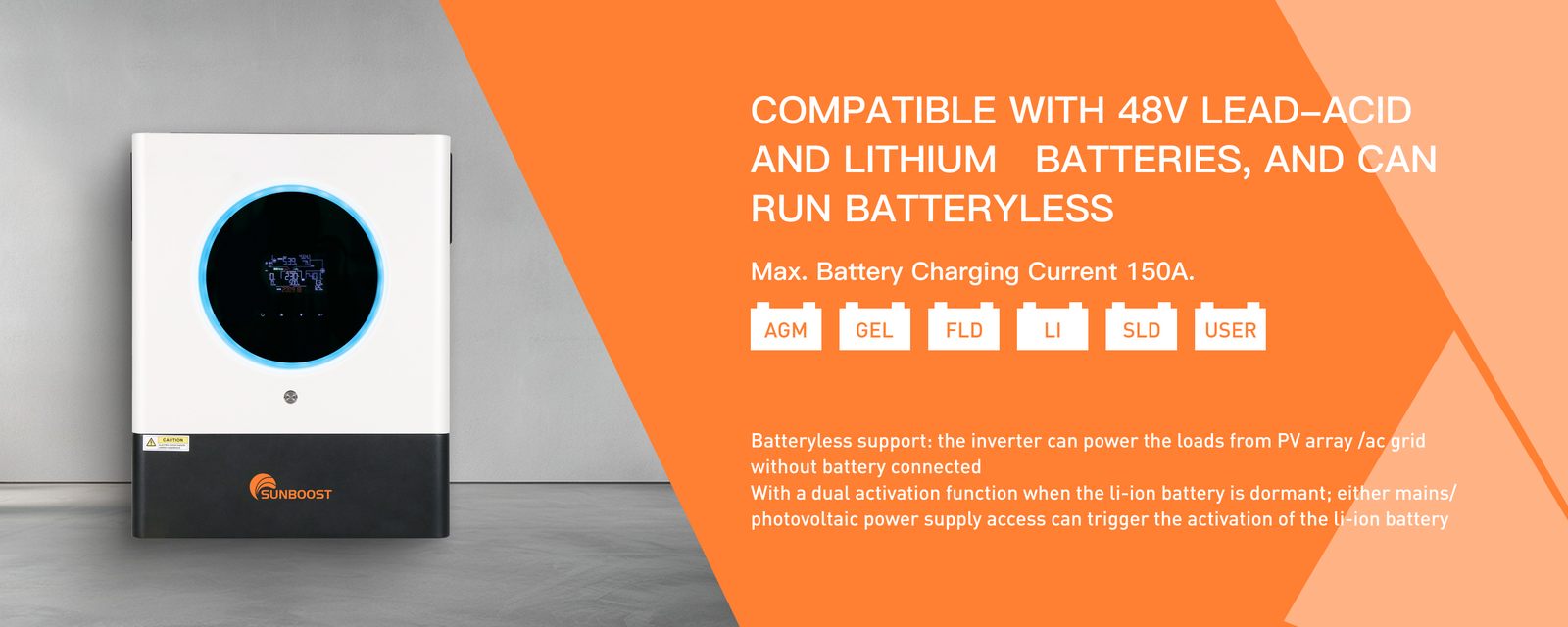

Compatible Battery
LiFePO4 Batteries, AGM Batteries, Lithium Batteries, Flooded Batteries, Sealed Lead Acid Batteries, Gel Batteries,User Mode
Parallel Capability (Units)
6
