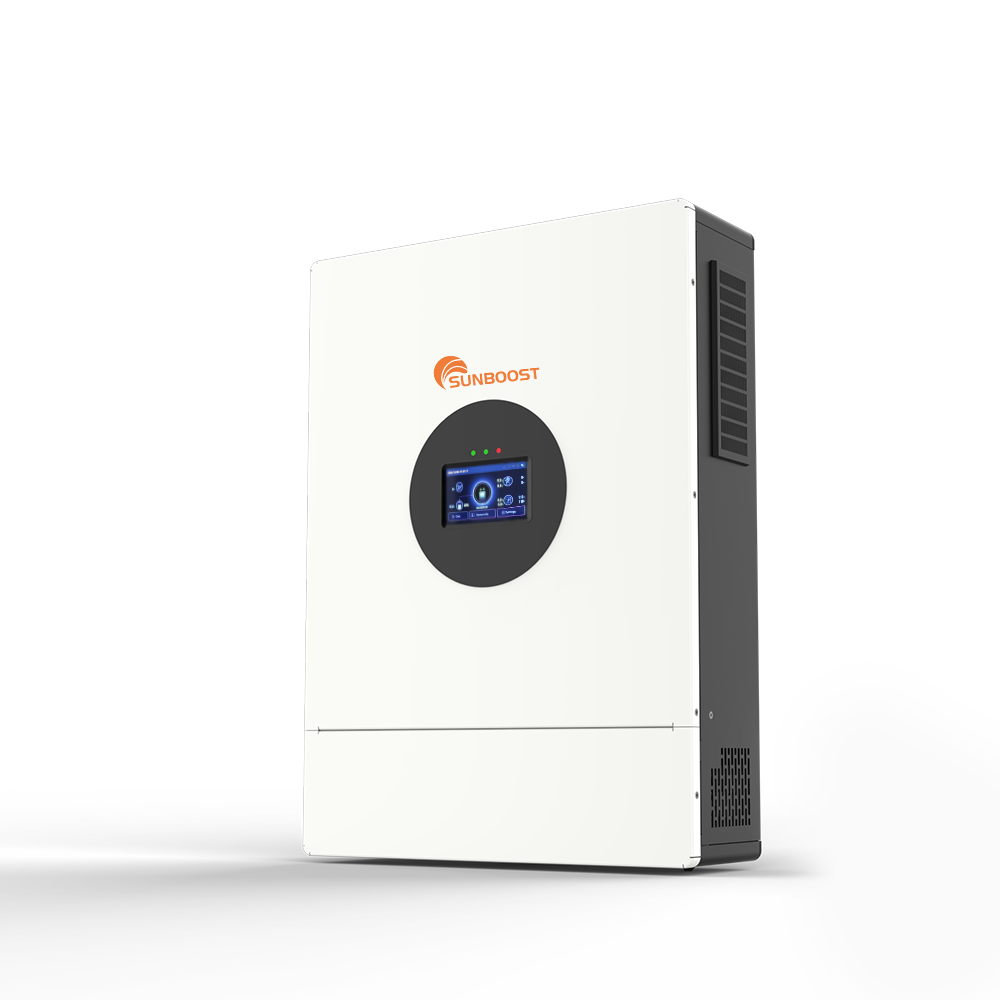

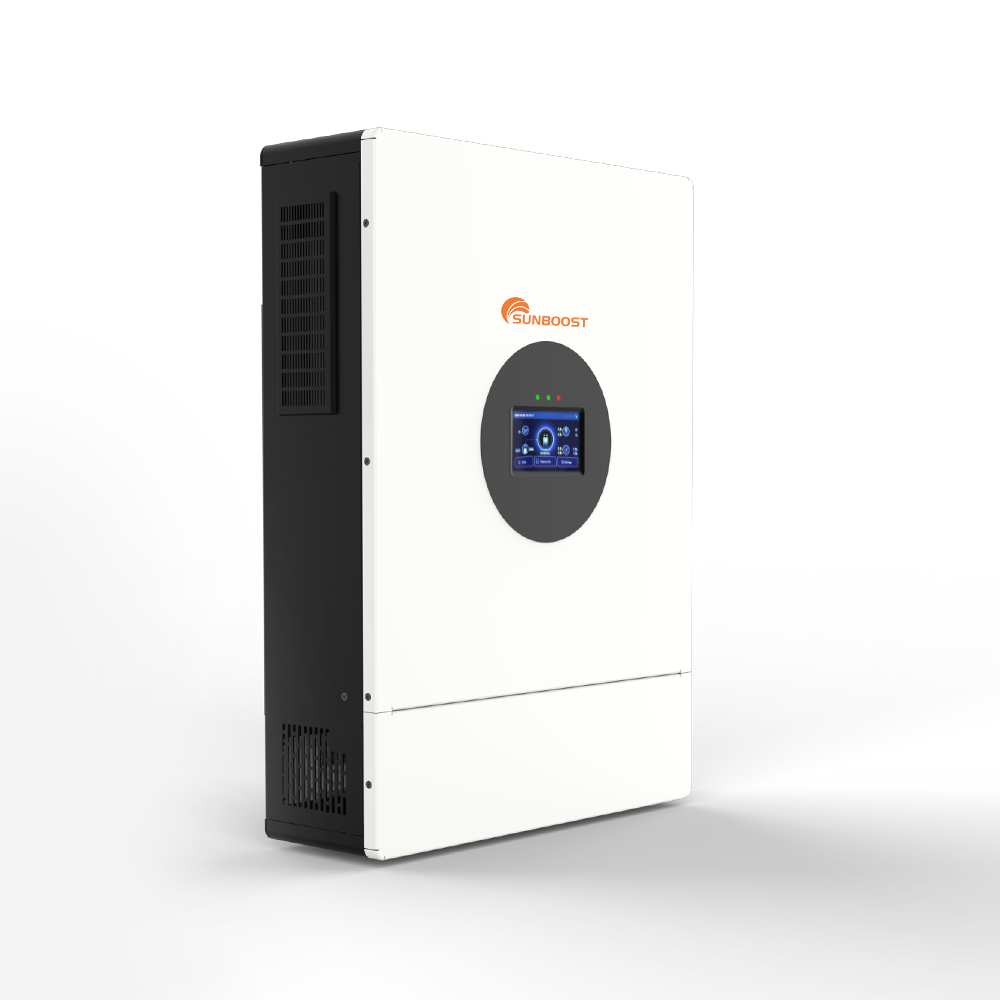

Sunboost 10Kw 12KW Split Phase Inverter 120V 240V Off Grid Hybrid Solar Inverter Pure Sine Wave
Sunboost 10Kw 12KW Split Phase Inverter 120V 240V Off Grid Hybrid Solar Inverter Pure Sine Wave
Sale price$828.00
Regular price$1,279.00

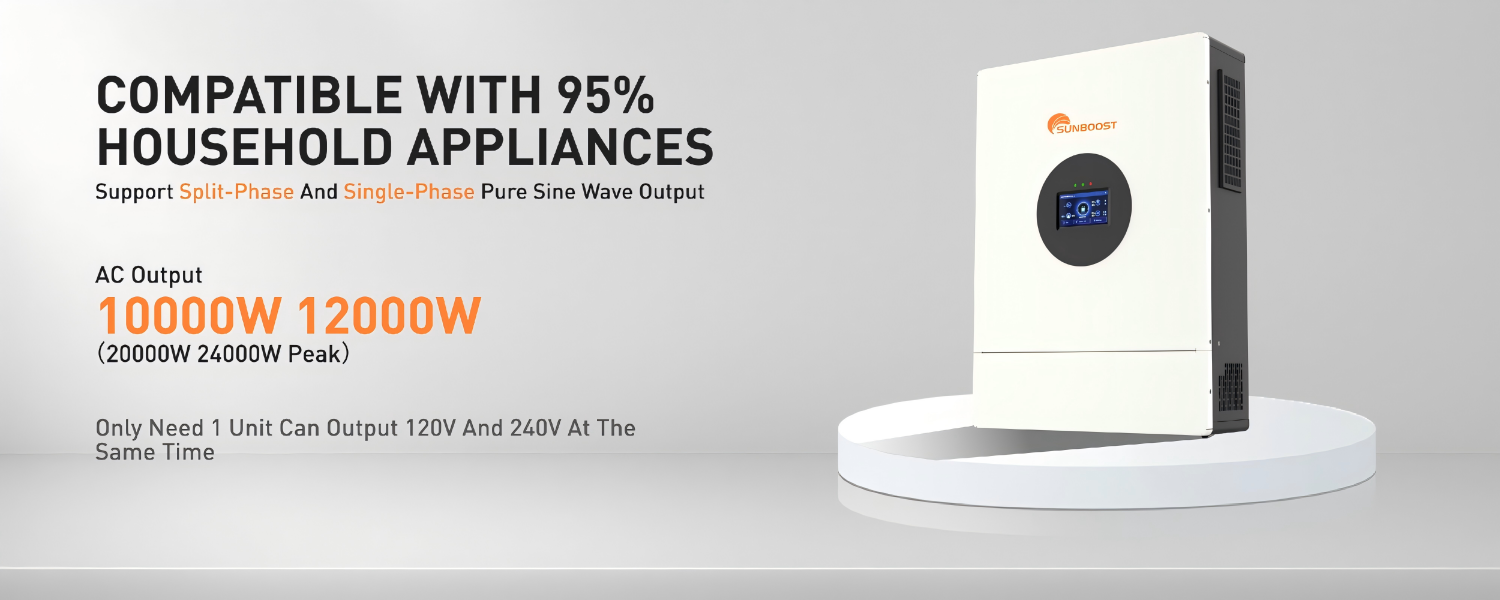

Split Phase Hybrid Solar Inverter 10KW 12KW 120V/240V
The inverter supports both single-phase (120V) and split-phase (120V/240V) pure sine wave output, providing full compatibility with residential electrical systems in North America and other regions. This flexibility allows it to power a comprehensive range of household appliances, from standard 120V electronics to 240V high-power devices like water pumps and dryers, from a single unit.
Advanced Energy Saving Mode
An intelligent Energy Saving Mode significantly reduces no-load power consumption by automatically switching the inverter to a low-power standby state when no significant load is detected. This feature minimizes idle energy loss, which is critical for improving overall system efficiency and extending battery autonomy in off-grid and solar-powered applications.

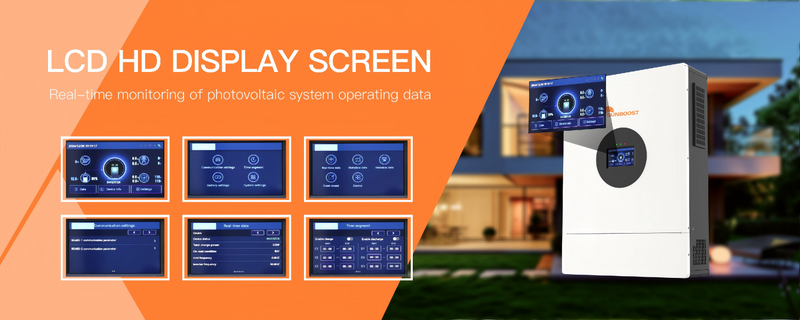

Intuitive Capacitive Touch Screen Interface
The unit is equipped with a responsive capacitive touch screen that provides an intuitive user interface for system monitoring and configuration. The menu-driven operation allows for straightforward navigation and real-time adjustment of system parameters, making complex settings accessible and enhancing the user experience for both installers and end-users.

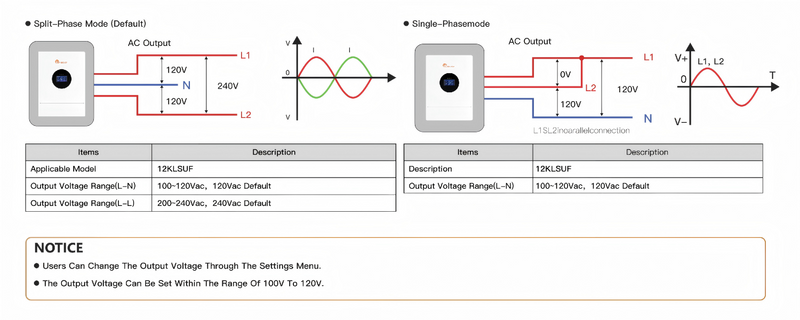

Precision Voltage Regulation (100-130V)
This inverter offers user-configurable AC output voltage adjustment within a range of 100 to 130 volts per phase. This precise voltage regulation capability ensures optimal compatibility with sensitive electronic equipment and allows for fine-tuning to compensate for voltage drop in long cable runs, guaranteeing stable and reliable power delivery to all connected loads.

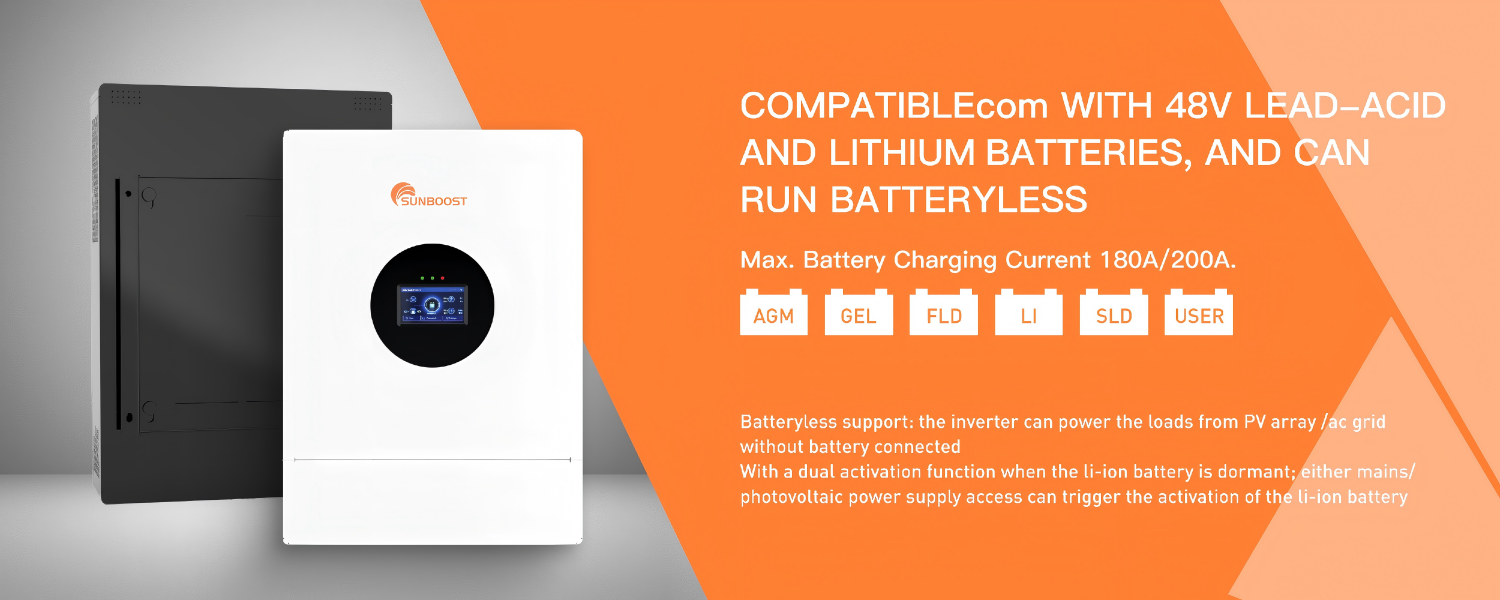

Supports various types of energy storage batteries
Designed for maximum flexibility, the inverter supports a wide array of energy storage batteries, including various types of lead-acid (AGM, Gel, Flooded) and lithium-ion chemistries (LiFePO4, NMC). It features pre-programmed charging algorithms and customizable user settings to optimize charging profiles for each specific battery type, ensuring peak performance and extended battery life.
four charging modes: only PV, mains power priority, PV priority and hybrid charging
The system provides four distinct charging modes to match different energy strategies: PV Only (for zero-grid-consumption), Utility Priority (for reliable grid backup), PV Priority (maximizing solar self-consumption), and Hybrid Charging (intelligently using both sources). This allows users to tailor energy usage based on availability, cost, and personal preference.
Comprehensive Multi-Layer Protection System
A robust protection suite safeguards all system components, including photovoltaic arrays, batteries, connected loads, and the controller itself. It incorporates protections against over-voltage, under-voltage, over-current, short-circuit, reverse polarity, and overtemperature, ensuring operational safety and long-term system reliability under various fault conditions.
Supports periodic battery charging and discharging
The inverter supports scheduled battery charging and discharging cycles, a crucial function for periodic battery maintenance and capacity testing. This feature helps prevent battery sulfation, verifies actual battery capacity, and ensures the energy storage system remains in optimal condition, thereby significantly extending the battery bank's service life.

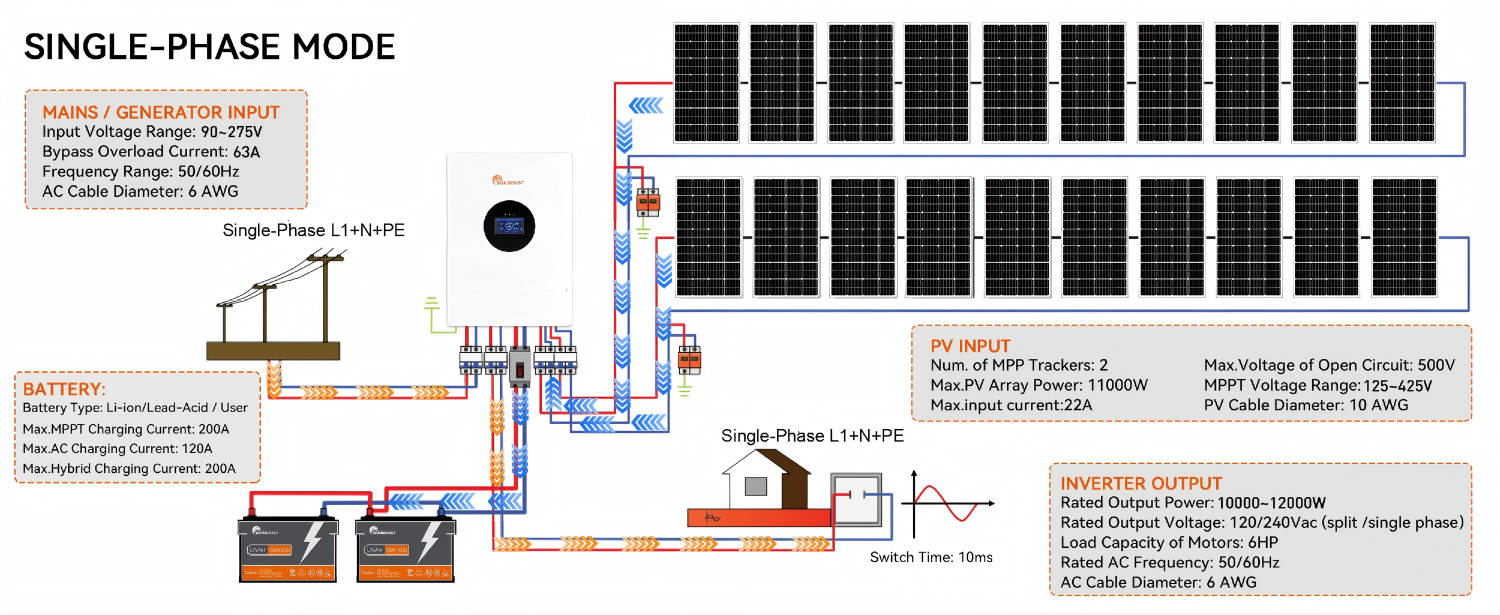

High-Efficiency Dual MPPT Solar Charging
Featuring two independent photovoltaic inputs, each with its own Maximum Power Point Tracker (MPPT), the system can simultaneously harvest energy from two separate solar arrays with different orientations or panel types. With a remarkable MPPT efficiency of up to 99.9% and a high single-tracker current of 22A, it ensures maximum energy harvest from the available sunlight, even under challenging, partially shaded conditions.

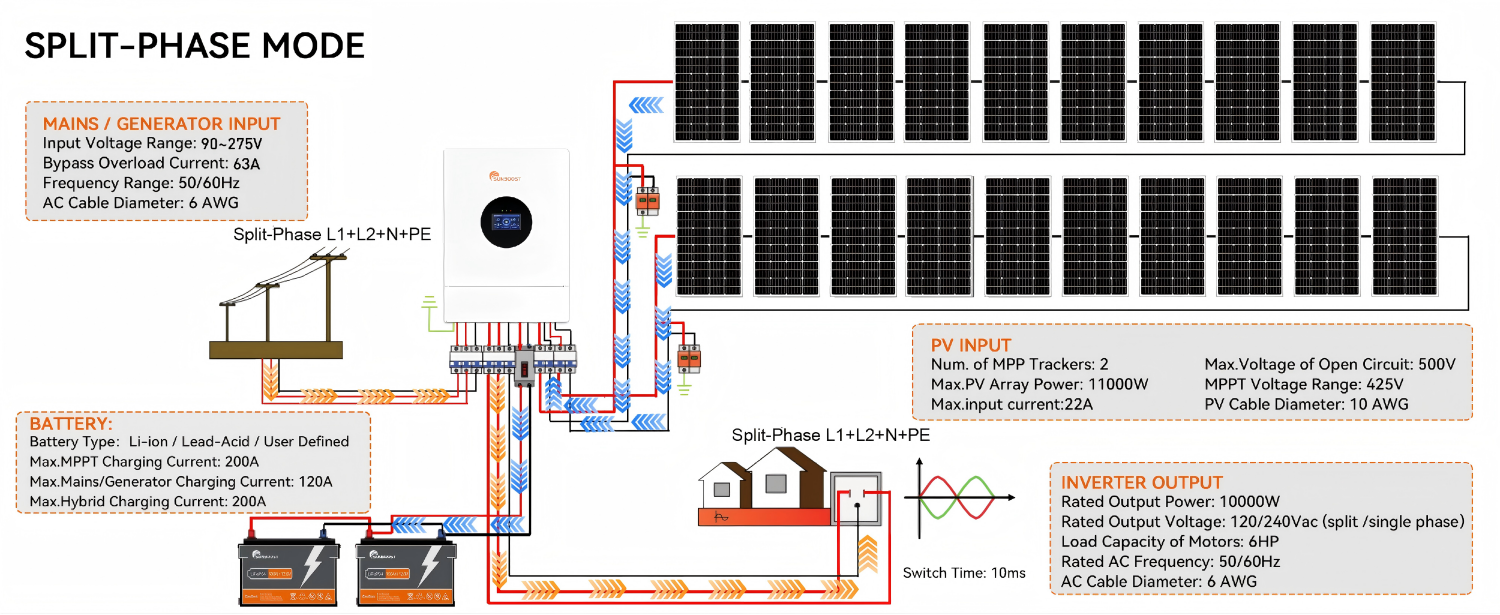

Uninterruptible Power Supply (UPS) Functionality
The inverter features seamless switching between two output modes: mains bypass and inverter output. In the event of a grid failure, it provides a transfer time of less than 10 milliseconds, ensuring continuous power to critical loads without interruption. This true UPS-level functionality is essential for protecting sensitive electronics, medical equipment, and maintaining essential home operations.
Packing Information

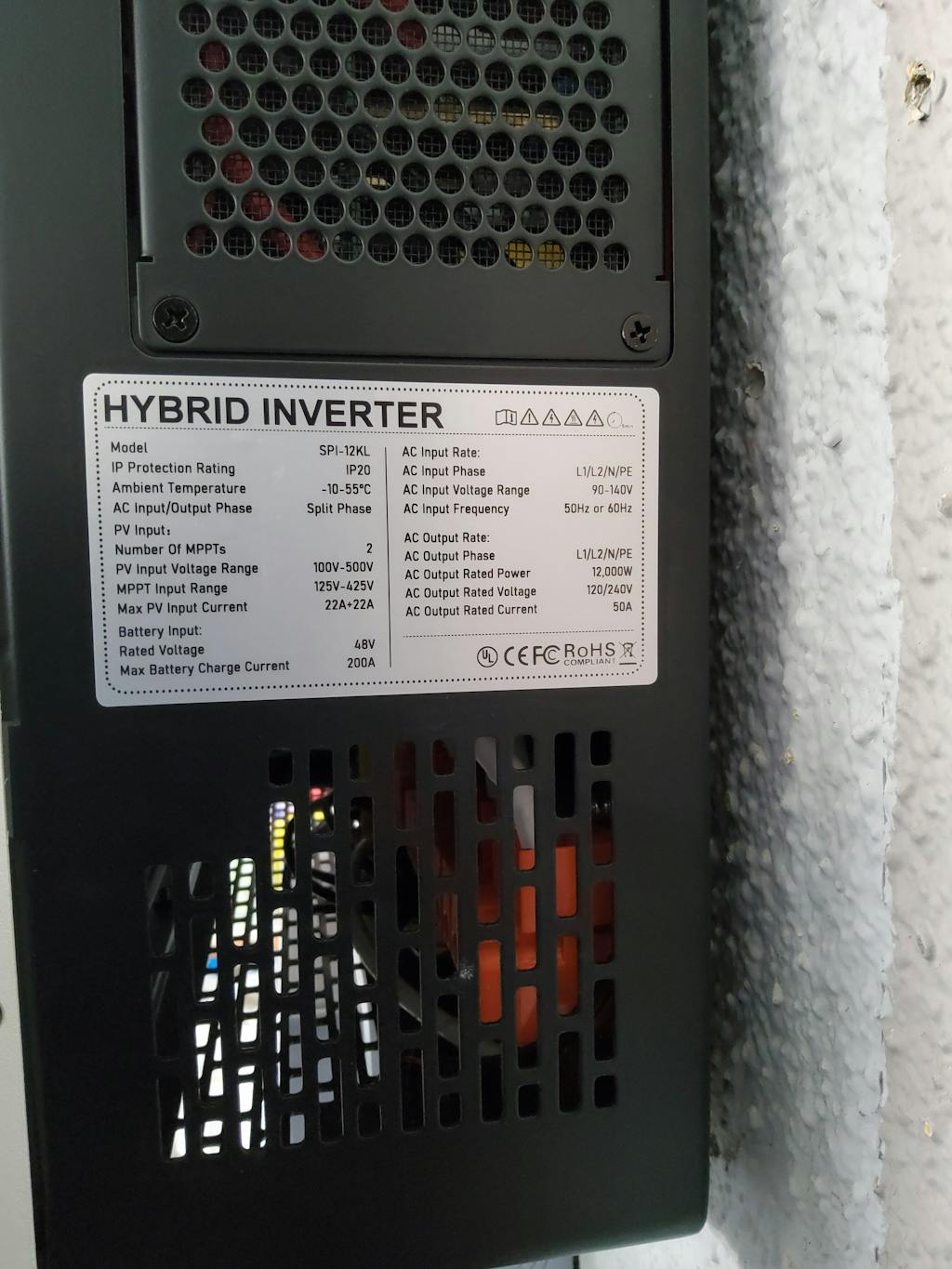

Specification
Model
SPI-10/12KL
Rated Load Power
10000W 12000W
Ac OutPut
120/240V (single-phase/split-phase)
Battery Voltage
48V
Max.mains/generator Charging Current
200A
Max.PV Charging Current
100A
Max.Mixed Charging Current
200A
Compatible Battery
LiFePO4 Batteries, AGM Batteries, Lithium Batteries, Flooded Batteries, Sealed Lead Acid Batteries, Gel Batteries,User Mode
