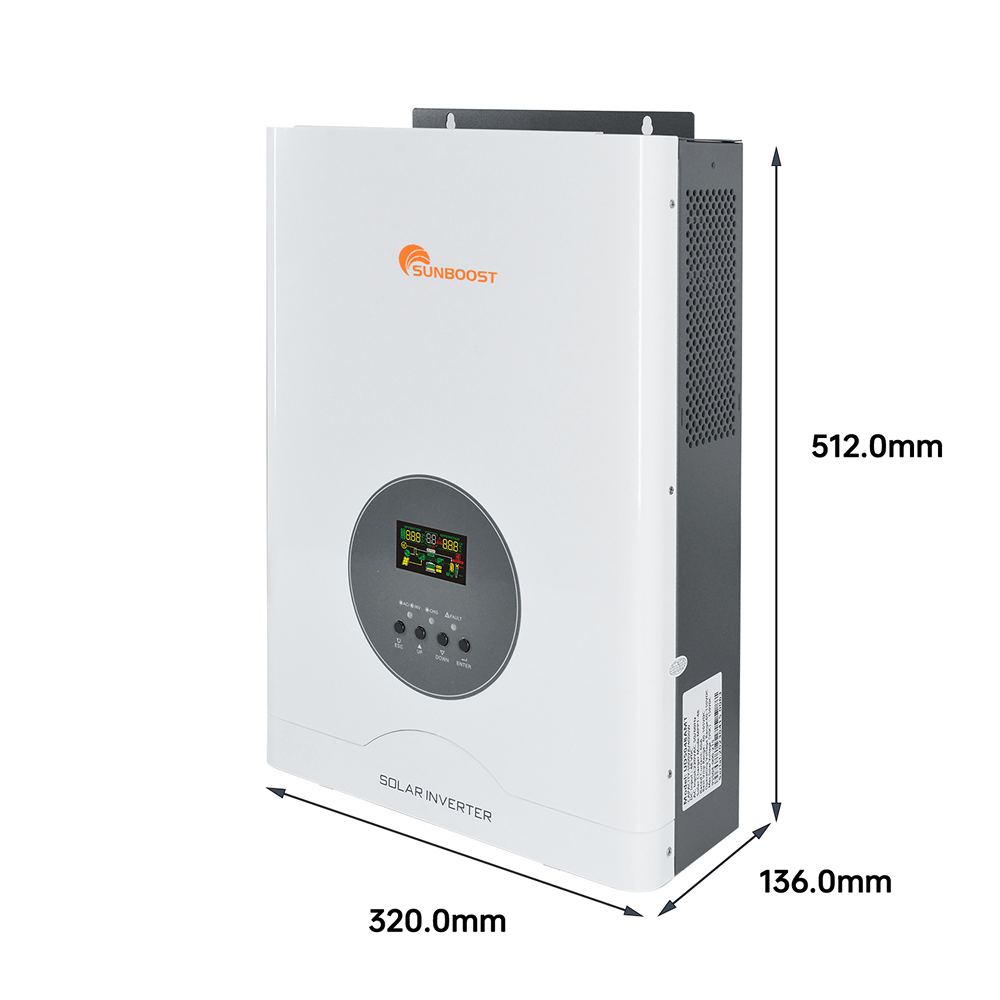

Sunboost 1.2kw 3kw 5kw 6.4kw 10kw 110V Split Phase Off Grid Hybrid Solar Inverter for Solar Power System
Sunboost 1.2kw 3kw 5kw 6.4kw 10kw 110V Split Phase Off Grid Hybrid Solar Inverter for Solar Power System
Sale price$142.00
Regular price$228.00
110V Low Frequency Solar Inverter 1.2KW 3KW 5KW 6.4KW 10KW
This inverter delivers a pure sine wave AC output with exceptionally low total harmonic distortion (THD), typically below 3%. This ensures compatibility with a wide range of sensitive electronics, including medical equipment, variable-speed motors, and audio/video systems, providing clean and stable power equivalent to or better than the utility grid. The high-quality waveform prevents issues like humming, overheating, and performance degradation in inductive loads.

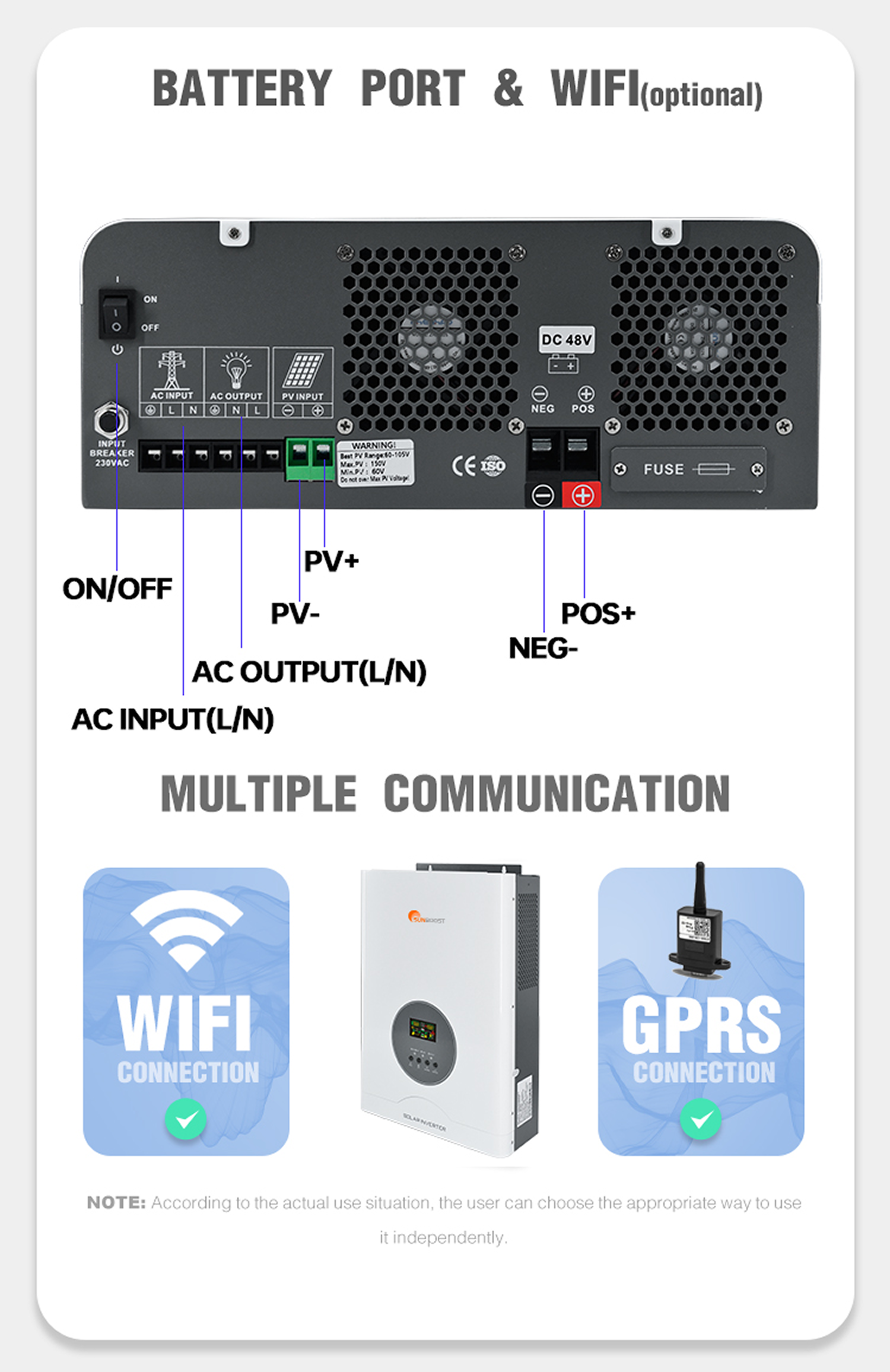

Application-Based Selectable Charging Current
Users can precisely configure the battery charging current directly through the interface. This allows for custom-tailored system setup based on specific battery bank capacity, chemistry, and application requirements. By selecting the appropriate current for different scenarios (e.g., bulk vs. float charging), users can optimize battery care, prevent stress from excessive rates, and extend battery lifespan.
High-Efficiency MPPT Solar Charge Controller (Max 90%)
The unit features an optional built-in Maximum Power Point Tracking (MPPT) charge controller with an efficiency of up to 90%. This advanced controller intelligently adjusts its electrical operating point to extract the maximum available power from the solar array, significantly outperforming traditional PWM controllers, especially in non-optimal weather conditions, thereby increasing overall energy harvest.

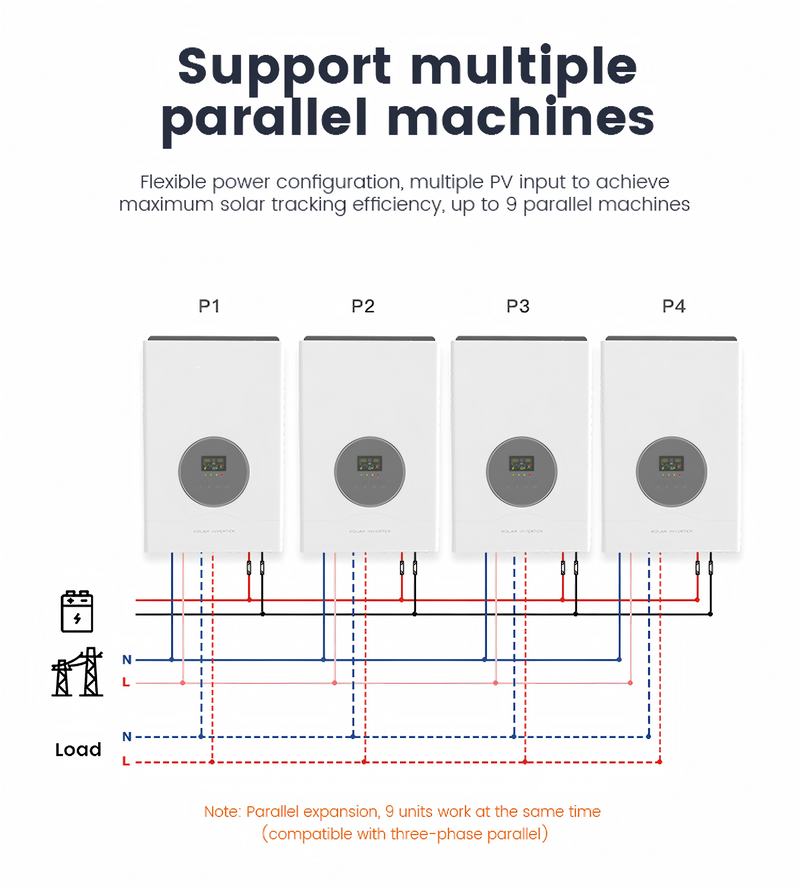

Scalable Parallel Operation
The inverter supports parallel operation, allowing multiple units to be connected and synchronized to create a single, high-capacity power system. This scalable architecture provides the flexibility to increase the available power output as energy demands grow, making it an ideal solution for expanding residential needs or critical commercial applications requiring power redundancy and enhanced reliability.

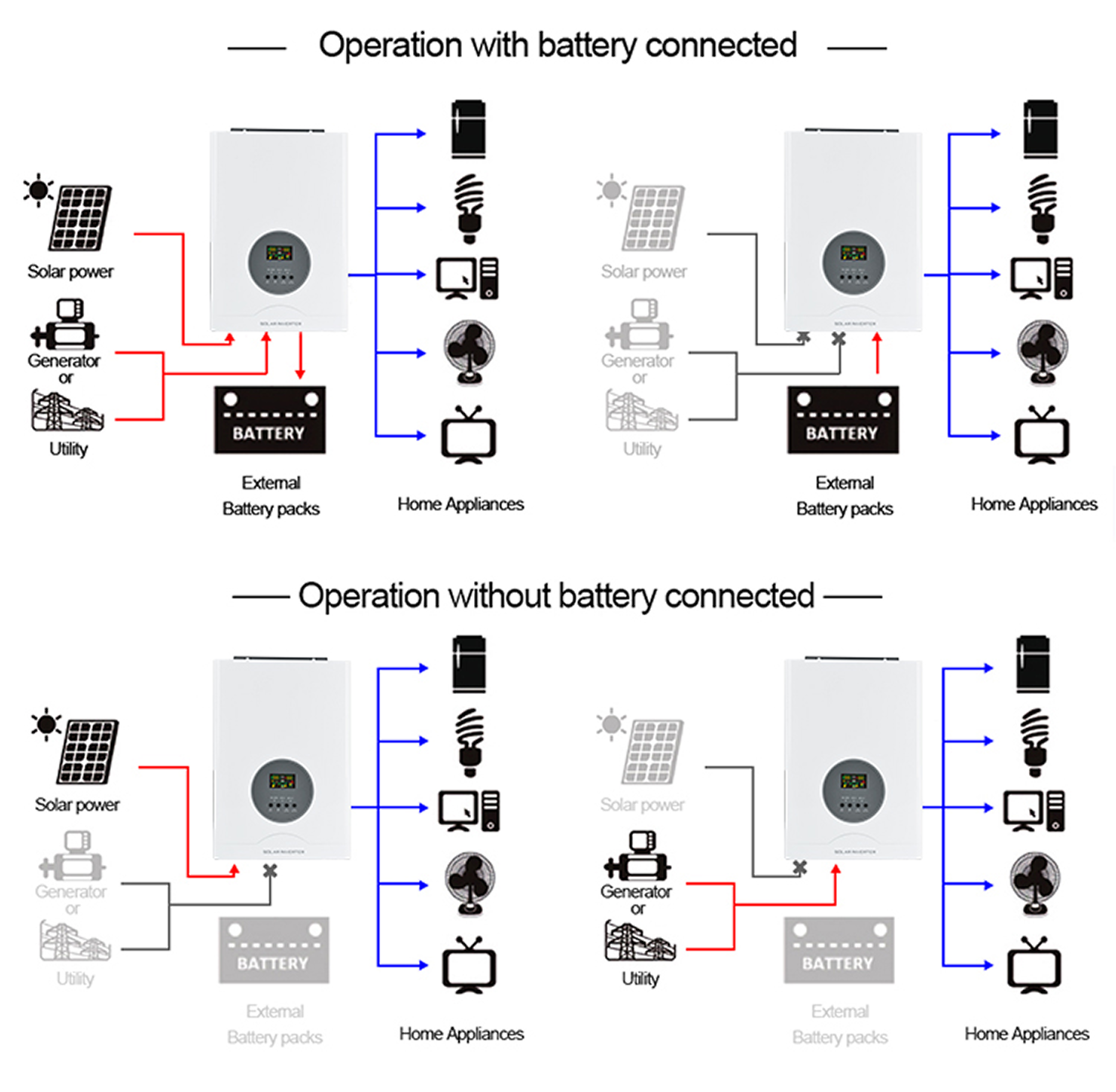

Automatic Generator Start (AGS) Function
The inverter is equipped with an intelligent Automatic Generator Start function. When the battery voltage drops to a user-defined low level or a specific power demand is triggered, the inverter automatically sends a start signal to a compatible standby generator. This ensures a continuous and uninterrupted power supply, which is critical for off-grid systems and essential backup power applications.
High-Efficiency Design for Battery Optimization
Engineered with a high-efficiency topology and advanced power management algorithms, the inverter minimizes energy losses during both inversion and charging processes. This optimized design reduces the stress on the battery bank by drawing current more effectively and minimizing heat generation, thereby enhancing overall system performance, extending battery cycle life, and maximizing the usable energy from each charge.
Packing Information
Specification
AC Iutput Voltage
110VAC
Rated Load Power
1200W 3000W 5000W 6400W 10000W
Battery model output voltage
110VAC±10%
Input Voltage Range
77-132VAC±3V (Nor Model)/92-132VAC3V (UPs model)
Battery voltage
12V/24V/48V
Maximum PV Display Open Circuit Voltage
150VDC
load peak ratio
(MAX)3:1
Compatible Battery
LiFePO4 Batteries, AGM Batteries, Lithium Batteries, Flooded Batteries, Sealed Lead Acid Batteries, Gel Batteries,User Mode
