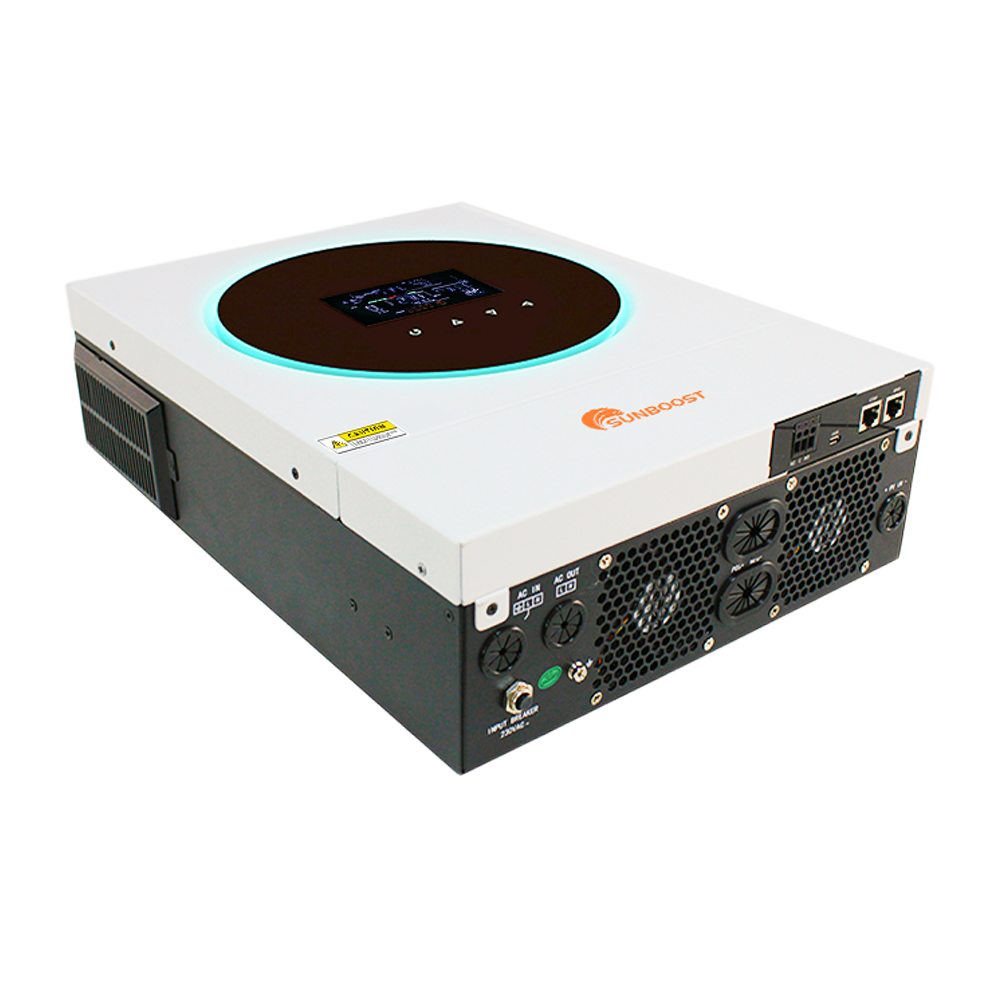

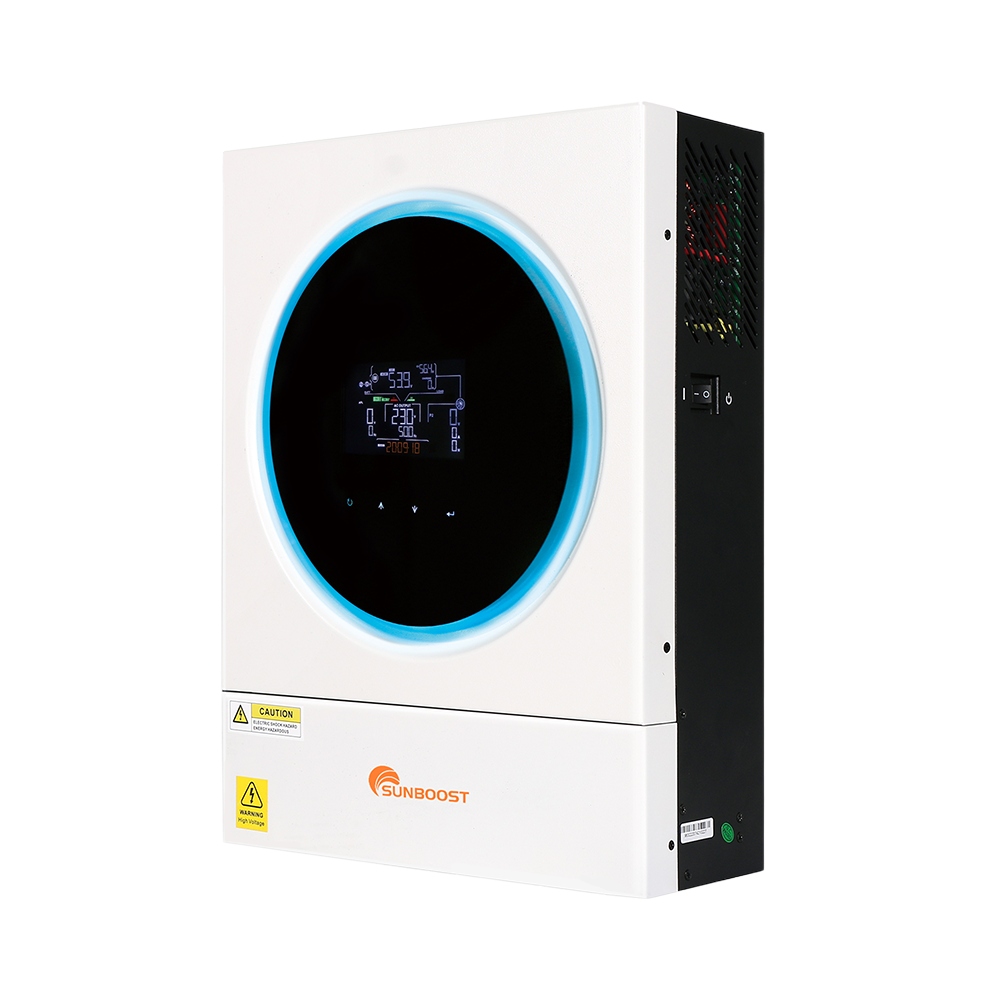

Sunboost 4Kw 6Kw On Off Grid Hybrid Solar Inverter 220V 230V 240V Solar Inverter Hybrid Off-Grid Mppt 48V
Sunboost 4Kw 6Kw On Off Grid Hybrid Solar Inverter 220V 230V 240V Solar Inverter Hybrid Off-Grid Mppt 48V
Sale price$204.00
Regular price$308.00

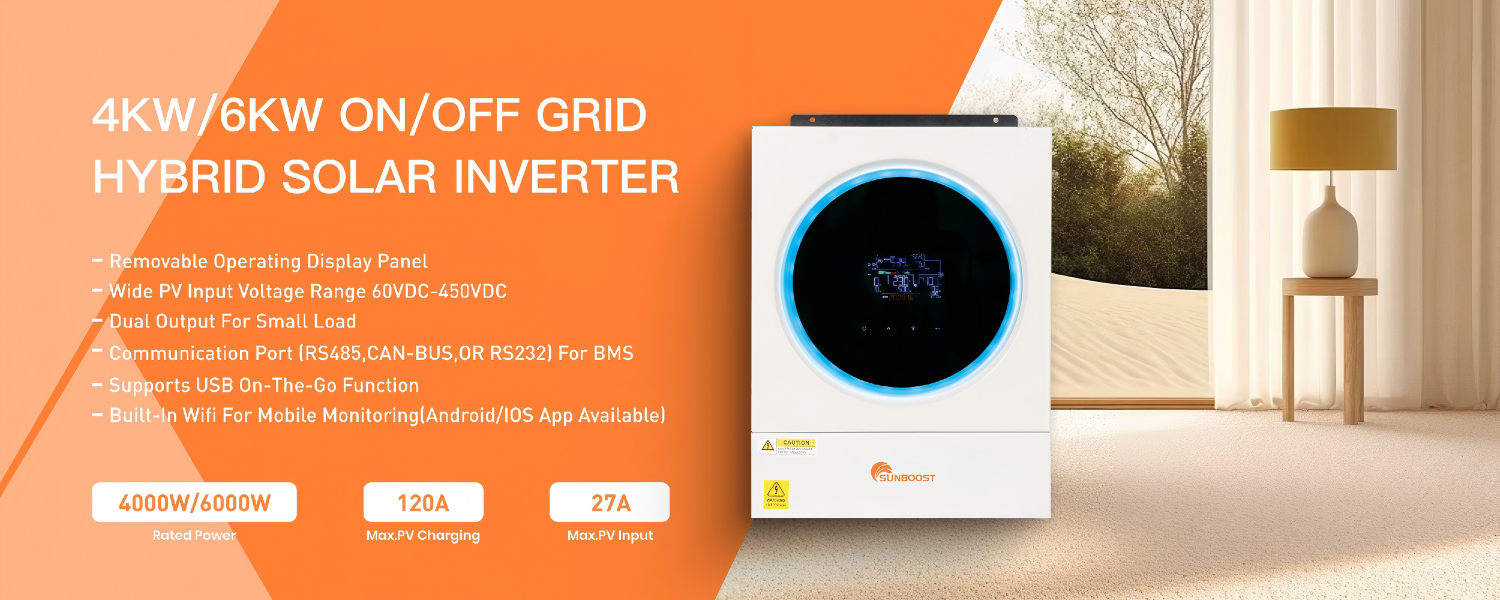

Removable Operating Display Panel
The inverter features a fully removable and often magnetically-secured display panel. This design allows for flexible installation where the main unit can be placed in a less accessible, discreet location while the display is mounted for easy viewing. It facilitates remote monitoring and control from a convenient location, and enables safe firmware updates by removing the panel without needing to power down the entire system.
Wide PV Input Voltage Range (60VDC-450VDC)
With an extensive MPPT voltage window of 60V to 450V DC, this inverter ensures high energy harvest efficiency across diverse conditions. The low start-up voltage allows for operation earlier in the morning and later in the afternoon, as well as under low-light conditions. Simultaneously, the high upper voltage limit supports longer series strings of modern high-efficiency solar panels, reducing wiring costs and minimizing power loss, while also providing greater design flexibility for various system sizes and configurations.

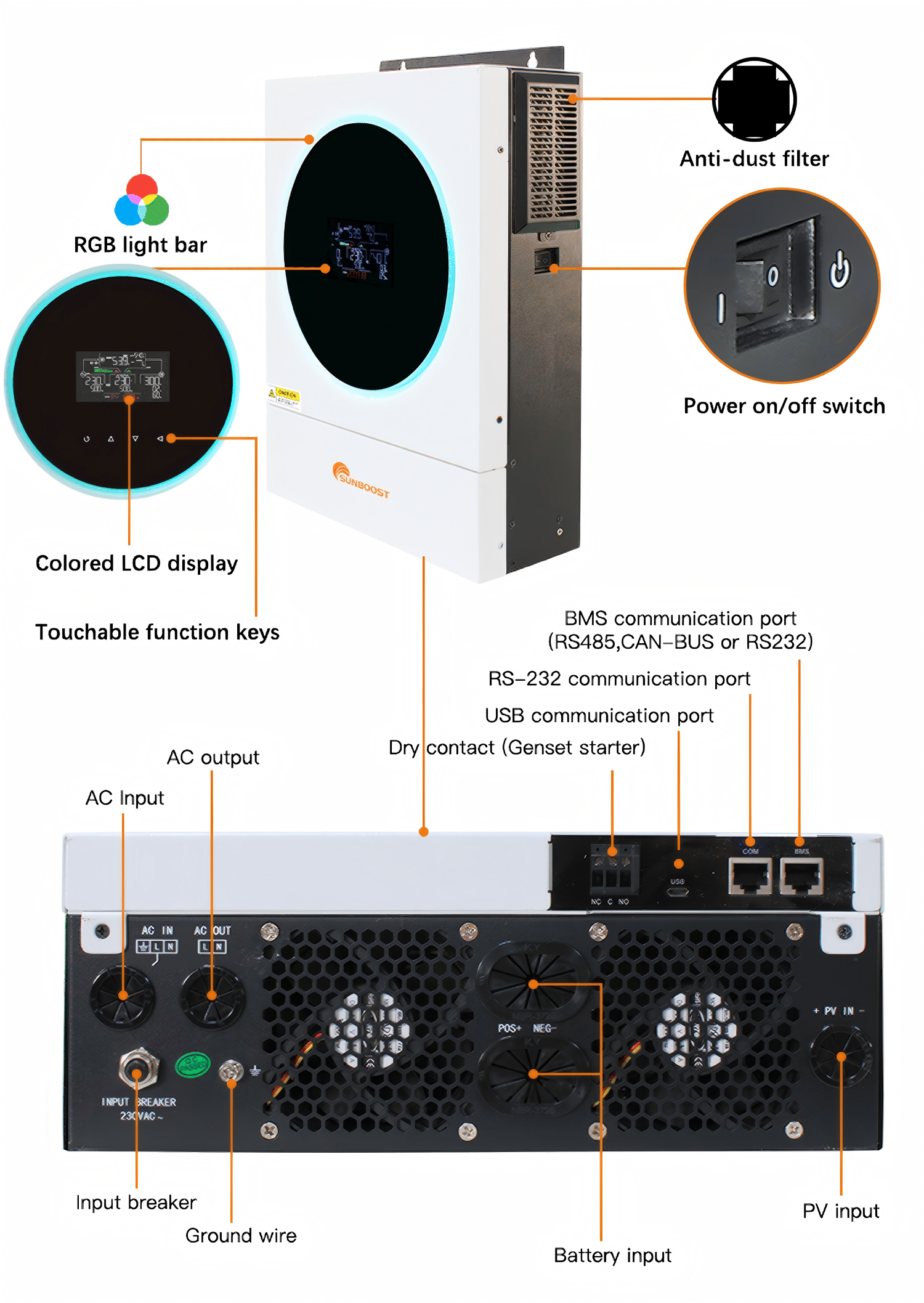

Built-in Dust Proof Components
The inverter is equipped with an integrated air filtration system designed to mitigate the ingress of dust and particulate matter. This robust construction is essential for reliable operation in challenging environments such as construction sites, agricultural settings, or industrial facilities. The dust-proof components protect internal circuitry and power semiconductors from contamination, thereby preventing overheating and ensuring long-term system stability while reducing maintenance frequency.
Dual Output for Small Load
This unit incorporates an intelligent dual-output design, featuring a dedicated always-on outlet for small continuous loads. This secondary circuit is engineered with ultra-low no-load consumption to power essential devices such as security systems, Wi-Fi routers, or refrigerators, even when the inverter's main output is switched off. This functionality is crucial for optimizing overall energy efficiency in off-grid or backup power systems, preventing unnecessary drain from the main high-power circuit.
Built-in Wi-Fi for Mobile Monitoring (Android/iOS App Available)
Featuring integrated Wi-Fi connectivity, the inverter enables real-time remote monitoring and control through a dedicated mobile application for both Android and iOS platforms. This provides users with instant access to key performance metrics—such as PV generation, battery status, and power consumption—from anywhere. The platform typically offers historical data analysis, customizable alert notifications for system events, and the ability to adjust basic settings remotely, ensuring full system transparency and proactive management.

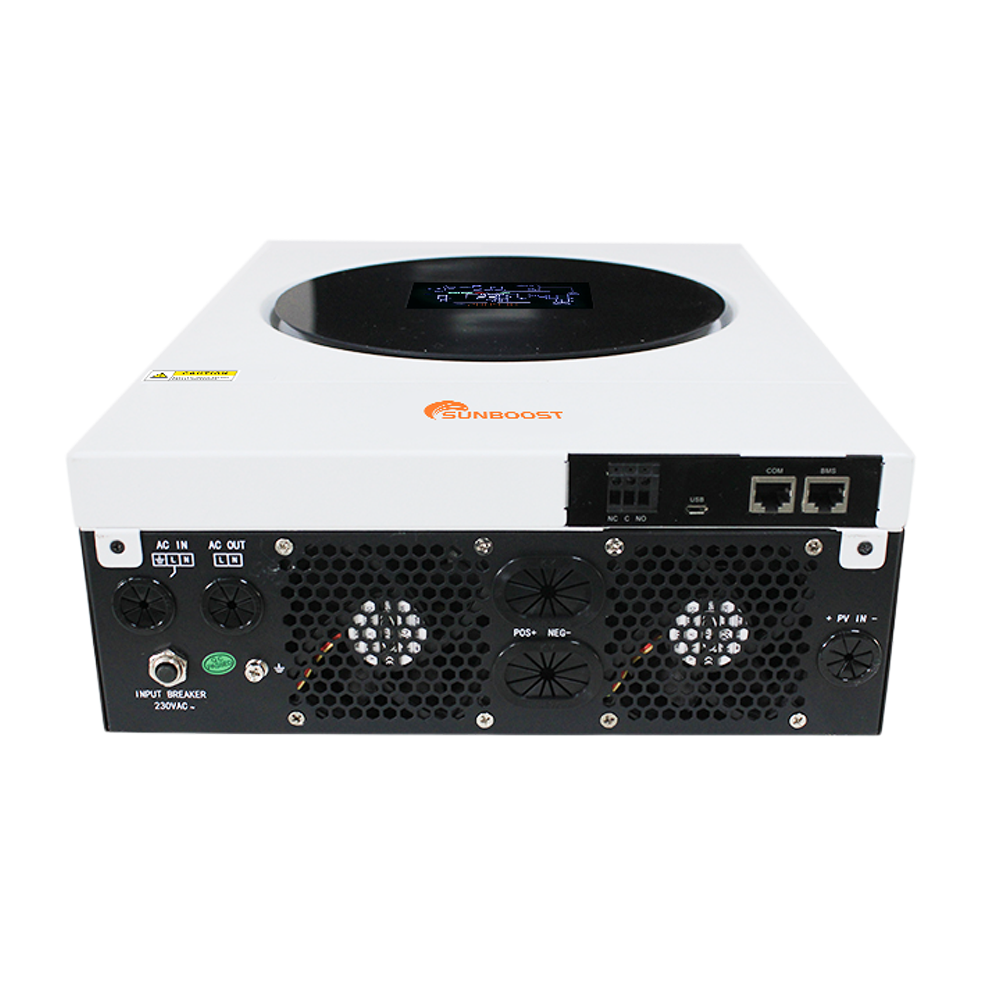

Communication Port (RS485, CAN-BUS, or RS232) for BMS
Equipped with a versatile suite of industry-standard communication ports (RS485, CAN-BUS, and/or RS232), the inverter enables seamless, closed-loop integration with a wide range of Battery Management Systems (BMS). This bidirectional data exchange allows the inverter to receive real-time battery parameters (e.g., State of Charge, voltage, temperature) and dynamically adjust its charging algorithm accordingly. This smart communication is fundamental for optimizing battery health, maximizing cycle life, and ensuring operational safety, particularly with advanced lithium-ion chemistries.
Supports USB On-The-Go (OTG) Function
The inverter includes a USB On-The-Go (OTG) port, enabling direct connectivity to mobile devices and USB drives. This allows for convenient, localized configuration and data logging without the need for a network connection. Users can perform critical tasks such as adjusting system settings via a mobile app, downloading historical performance data for analysis, or performing firmware updates directly from a USB flash drive, enhancing both usability and serviceability.
Packing Information
Specification
Model
VMIV TWIN 4KW/6KW
Rated Load Power
4000W/6000W
Ac OutPut
230Vac±5%
Battery Voltage
24V/48V
MPPT Working Voltage Range
60~450VDC
Max.PV Charging Current
120A
Max.PV Input Current
27A
Open Circuit Voltage
500VDC

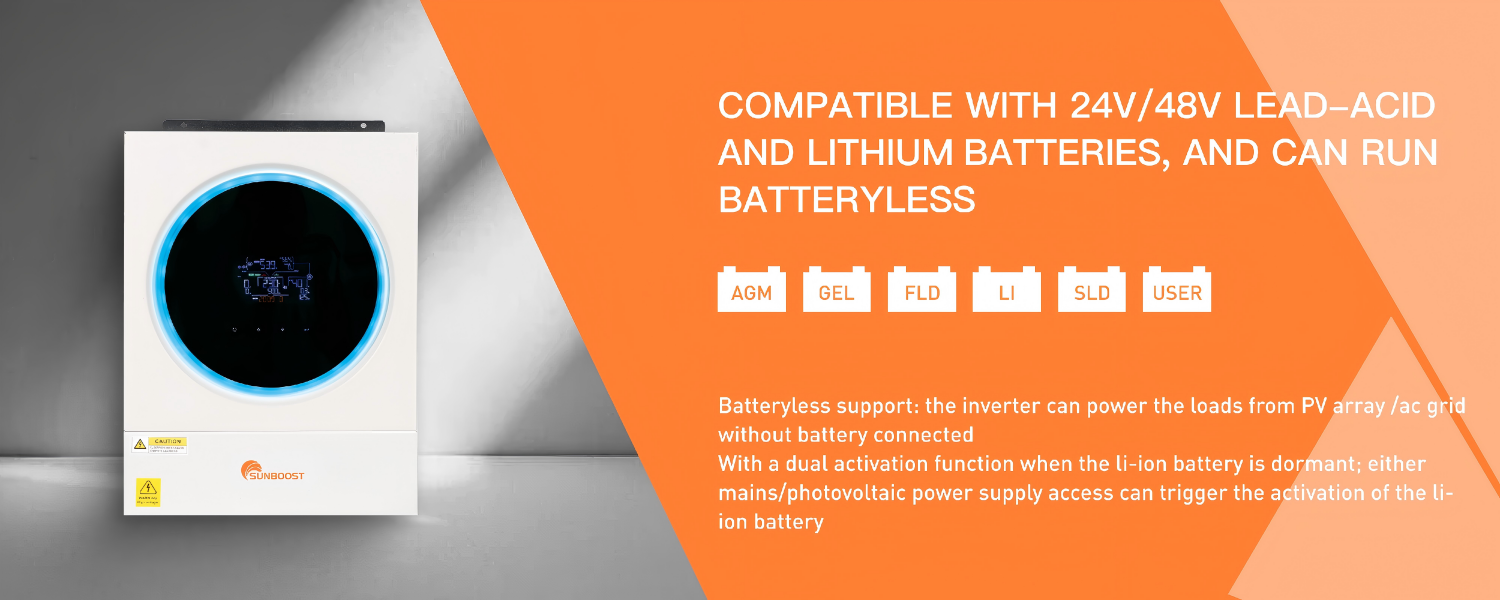

Compatible Battery
LiFePO4 Batteries, AGM Batteries, Lithium Batteries, Flooded Batteries, Sealed Lead Acid Batteries, Gel Batteries,User Mode
Parallel Capability (Units)
6
