Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.

sales@sun-boost.com

+86-137 6041 3751

EH SPL1 Series - 300Ah~500Ah - LV Stackpower Energy Storage Battery System 1
EH SPL1 Series - 300Ah~500Ah - LV Stackpower Energy Storage Battery System 2
EH SPL1 Series - 300Ah~500Ah - LV Stackpower Energy Storage Battery System 3
EH SPL1 Series - 300Ah~500Ah - LV Stackpower Energy Storage Battery System 4
EH SPL1 Series - 300Ah~500Ah - LV Stackpower Energy Storage Battery System 5
EH SPL1 Series - 300Ah~500Ah - LV Stackpower Energy Storage Battery System 1
EH SPL1 Series - 300Ah~500Ah - LV Stackpower Energy Storage Battery System 2
EH SPL1 Series - 300Ah~500Ah - LV Stackpower Energy Storage Battery System 3
EH SPL1 Series - 300Ah~500Ah - LV Stackpower Energy Storage Battery System 4
EH SPL1 Series - 300Ah~500Ah - LV Stackpower Energy Storage Battery System 5

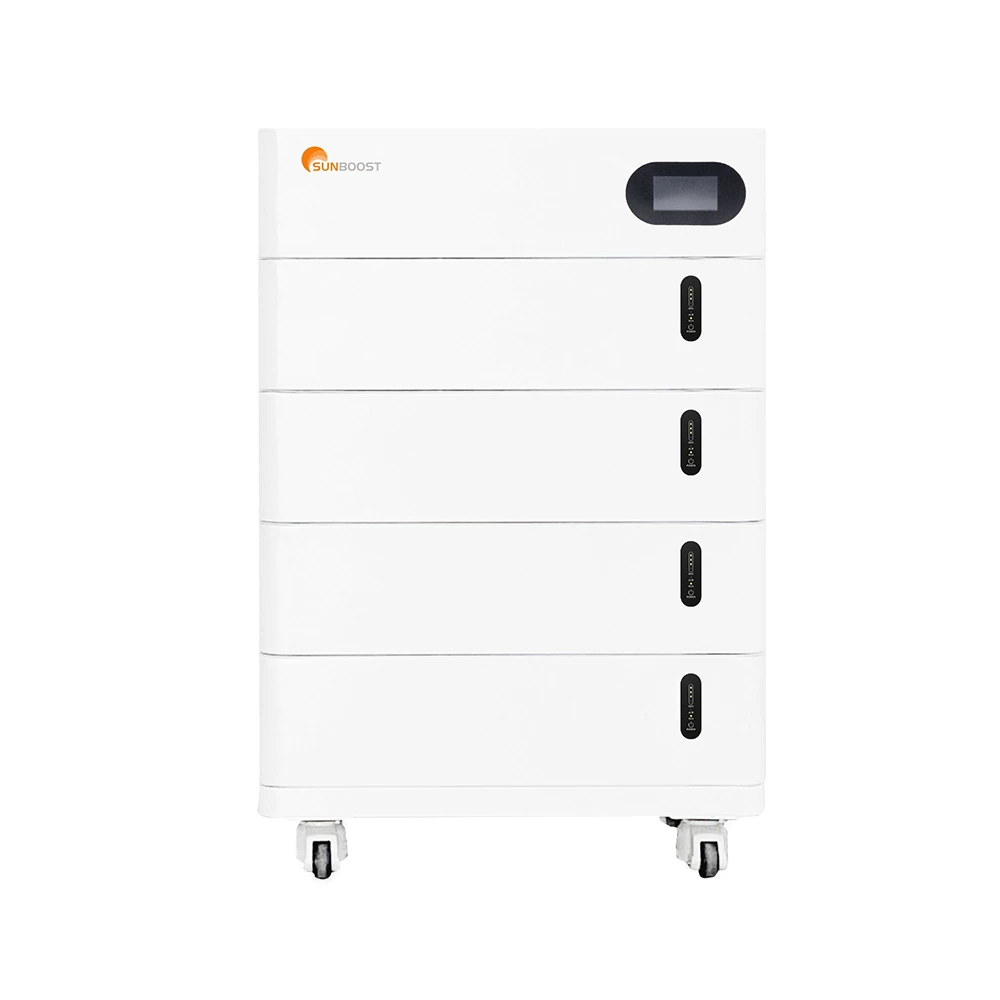

EH SPL1 Series - 300Ah~500Ah - LV Stackpower Energy Storage Battery System

Environmentally friendly backup power system

Convenient: Stackable&compact design, easy installation

Rainproof Protection: IP65, suitable for indoor and outdoor application

Stable Performance: Operates smoothly

Compatible with 20+ global mainstream

Long cycle life



- EH-051V300-SPL1

- EH-051V400-SPL1

- EH-051V500-SPL1

    oops...!

    no product data.

    Go to homepage

    LIFEPO4 Battery

    Product Description

    MODULAR DESIGN

    Modular design, light weight, small size



    LONG SERVICE LIFE

    More than 15 years long service life



    HIGH COMPATIBILITY BMS

    High compatibility BMS, seamless communication with energy storage inverter



    CHARGE & DISCHARGE CYCLE

    Suitable for long-term charge and discharge cycle

    EH-SPL1-05

    Product Specifications

    COMPOSITION OF ALL IN ONE

                 All in one solar system = off Inverter + 5kwh/10kwh/15kwh/20kwh~40kwh lifepo4 battery

    Product Number EH-051V300-SPL1 EH-051V400-SPL1 EH-051V500-SPL1
    Capacity(kwh) 15 20 25
    Nominal Voltage (V) 48/51.2
    Rated Capacity(Ah) 300 400 500
    Charge Cut-Off Voltage (V) 54.0/58.0 54.0/58.0 54.0/58.0
    Discharge Cut-Off Voltage (V) 39.0/42.0 39.0/42.0 39.0/42.0
    Standard Charging Current(A) 150 200 250
    Max Charging Current(A) 300 400 500
    Standard Discharge Current(A) 150 200 250
    Maximum Discharge Current(A) 300 400 500
    Maximum Peak Current(A) 400 500 600
    Communication RS485/CAN
    Cycle Life ≥4000cyles(25℃,80%DOD,60%EOL)
    Design Life ≥15Years(25℃)
    Protection BMS,Breaker
    IP Rating IP55
    Shell Material/Color Metal/white
    Color Size(mm) 585*360*658mm 585*360*808mm 585*360*958mm
    welght(kg) 138 184 240
    Operating temperature(℃) Charge:0℃~50℃ Discharge:-15℃~60℃

    PRODUCT STRENGTH

    Products Advantages

    环保达标
    Environmentally friendly backup power system
    性能
    Stable Performance: Operates smoothly
    图层
    Convenient: Stackable & compact design, easy installation
    icon-14
    Compatible with 20+ global mainstream inverters
    icon-23
    Rainproof Protection: IP65, suitable for indoor and outdoor applications
    icon-04
    Long cycle life

    WHY CHOOSE US?

    Product Characteristics

    -- Durable and Long-Lasting Lithium Ion Battery: Our SUNBOOST 5KWh 10KWh 20KWh 30KWh 40KWh 50KWh 48v 100ah lifepo4 Lithium Energy Storage Batteries provide reliable and efficient power storage solutions for your home. Their lithium-ion technology ensures a long lifespan and minimal degradation.



    -- Customizable Power Output: With an output power range of 5~10 kwh, you can choose the perfect capacity for your home's energy needs, whether it's a small or large family.



    -- All-in-One System for Easy Installation: Our wall-mounted design and all-in-one system make it easy for you to install and set up our energy storage batteries without requiring any additional equipment or professional assistance.

    EH-SPL1-06

    Product Details

    背景(1)
    Support a variety of communication protocols support RS485 RS232 CAN etc.
    背景(2)
    Modular structure for easy installation
    背景(3)
    Light weight and small size
    EH-SPL1-11

    About this product

    -- Advanced Communication Features: Our system features a CAN and RS485 communication port, allowing for seamless integration with your existing solar system and grid connection.



    -- Ideal for Home Energy Storage and Off-Grid Solar Systems: Our 48v 100ah lifepo4 battery is perfect for users like "John Doe" who are looking for a reliable and efficient energy storage solution for their home or off-grid solar system.

    FAQ

    Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.

    1
    How to install and use the solar inverter?
    We have the English teaching manual, All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
    2
    What if I don't have export experience ?
    We have reliable forwarder agent which can ship items to you by sea/air/Express to your door. Any way, we will help you choose the most suitable shipping service.
    3
    We want to know month capacity.
    20000-30000PCS per Month.
    4
    How is your technical support?
    We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime.
    5
    Can you get the the solar inverter customized for us ?
    Of course, brand name, machine color, designed unique patterns available for customization.
