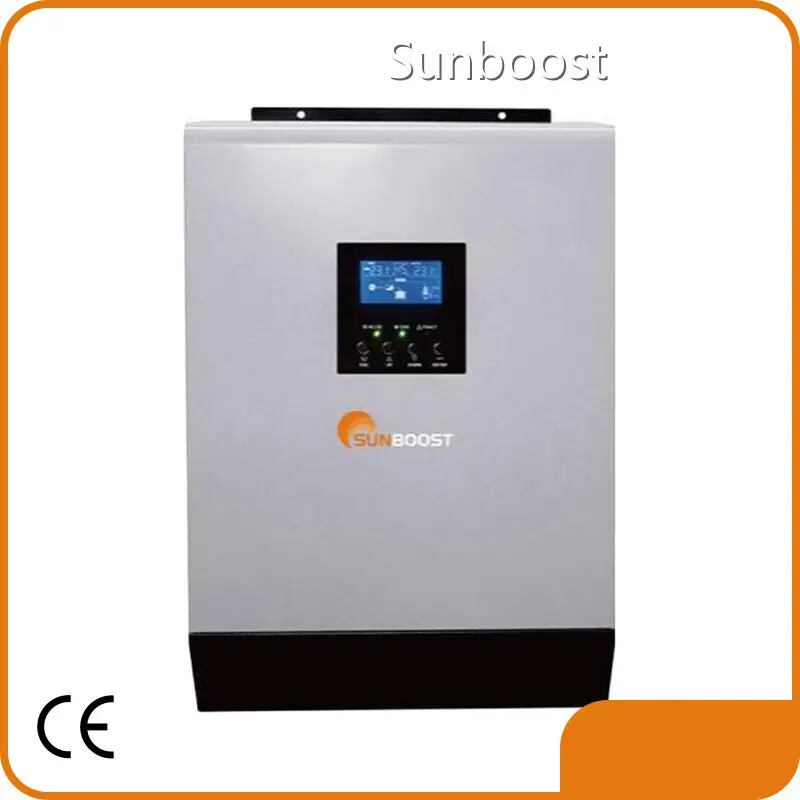

Best Solar Inverter Manufacturers by Sunboost
Product details of the best solar inverter manufacturers
Product Description
The raw material suppliers of Sunboost best solar inverter manufacturers have undergone rigorous screening. Our plant has perfect quality assurance system and production guarantee system for this product. The product has a wide development space with great competitiveness.
Products Advantages
- Off grid inverter, support the utility and photovoltaic solar two lines of input
- DPS digital control technology, the double transfor mation online design, USES the input PFC technology, the input power of 0.99, and high efficiency inverter topology, the output is more efficient
- Battery equalization function optimization of battery performance, extend battery life
- Mains/pv/battery/multimode optimal output
- Built-in dust-proof net suite, suitable for bad environment
- Based on MPPT solar charger design
- Biggest support 9 parallel machines
- Support battery cold start
Product Specifications
| MODEL | MKSII 5K | |
| Rated power | 5000VA | |
| Ac input | ||
| Voltage | 230VAC | |
| Voltage range | 170-280Vac(applicable to personal computer）90-280Vac（applicable to household appliances） | |
| Frequency range | 50/60HZ | |
| PV input | ||
| Maximum photovoltaic array power | 4500W | |
| The largest photovoltaic array open-circuit voltage | 450Vdc | |
| Scope of MPPT @ working voltage | 120Vdc-430Vdc | |
| The rated voltage | 360V | |
| Number of MPPT | 1 | |
| Output Paramenters | ||
| Voltage | 230V±5% | |
| Frequency | 50HZ | |
| Efficiency | 90% | |
| Maximum output power | 5000W | |
| Conversion time | 10ms（UPS），20ms（Household appliance） | |
| harmonic | ≤3% | |
| Overload capacity | 5s@≥150%load;10s@110%-150%load | |
| The utility model | ||
| Voltage | 230Vac±5% | |
| Frequency | 50Hz | |
| Efficiency | 95% | |
| Battery | ||
| The battery voltage | 48V | |
| Charging way | A three-stage charging | |
| Maximum charging current | 80A | |
| cold start voltage | 46V | |
| Weaver function | The biggest support 9 weaver | |
| The battery type | Lead-acid, lithium Battery | |
| Protection function | Output short circuit overload over temperature protection, and other functions | |
| Communication port | RS232,USB，Dry contact | |
| The work environment | ||
| Working temperature | -10℃ to 50℃ | |
| Storage temperature | -15℃ to 60℃ | |
| Relative humidity | 5%-95% | |
| Physical | ||
| Size (D/W/H) | 480x310x125mm | |
| Net weight (KG) | 11 | |
