Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.

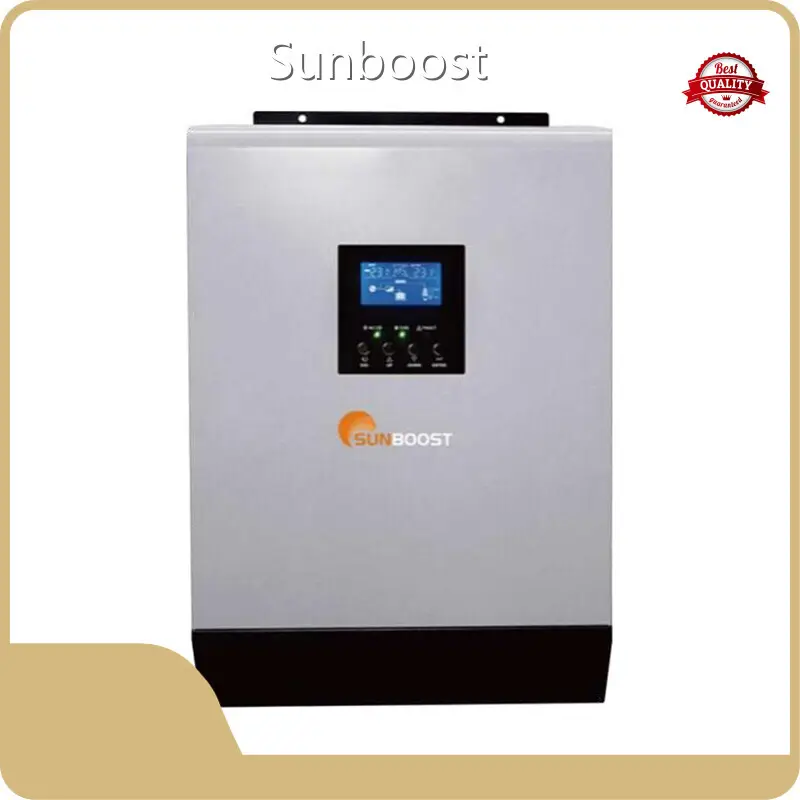

Bulk Buy Solar Inverter Companies Sunboost Company
Product details of the solar inverter companies
Product Overview
In the course of excellent quality of solar inverter companies, our price-quality ratio is quite reasonable. Being a quality centric firm well-known in the market, the quality of our product is fully guaranteed. Sunboost's solar inverter companies can meet the different needs of customers. With promising development prospects in the field, the product is widely used.
Product Description
With the pursuit of excellence, Sunboost is committed to showing you unique craftsmanship in details.
Products Advantages
- Off-grid inverter, support two road input mains and photovoltaic solar energy
- DPS digital control technology, the double conversion on-line design, USES the input. PFC technology, the input power of 0.99, and high efficiency inverter topology, the output is more efficient.
- Smart charger design, optimization of battery performance
- Mains/pv/battery/multimode optimal output
- Based on PWM/MPPT solar charger design
- Built-in dust-proof net suite, suitable for bad environment
- Support the battery cold start
- Biggest support 6 parallel machines
Product Specifications
| MODEL | SCMK 3K-24V | |
| Rated power | 3000VA | |
| Ac input | ||
| Voltage | 120VAC | |
| Voltage range | 95-150Vac(applicable to personal computer）65-150Vac（applicable to household appliances） | |
| Frequency range | 50 Hz/60 Hz（to be automatic detection） | |
| PV input | ||
| PWM | MPPT | |
| Rated power | 1250W | 2000W |
| Maximum efficiency | 98.50% | 98% |
| Maximum open circuit voltage of photovoltaic array | 80VDC | 145VDC |
| Working voltage range | 30~40VDC | N/A |
| The largest pv array voltage range | N/A | 30~80VDC |
| Maximum charging current | 110A | 140A |
| Output Paramenters | ||
| PV/battery model | ||
| Voltage | 110/120VAC±5% | |
| Frequency | 50/60HZ | |
| Efficiency | 90% | |
| Maximum output power | 2400W | |
| Conversion time | 10ms（UPS, 20ms（Household appliance） | |
| Power surge | Two times the rated capacity up to 5 seconds | |
| Overload capacity | 5s@≥150%load;10s@110%-150%load | |
| The utility model | ||
| Voltage | 110/120Vac±5% | |
| Frequency | 50Hz | |
| Efficiency | 95%(A full battery impedance load） | |
| Battery | ||
| The battery voltage | 24V | |
| Charging way | A three-stage charging | |
| Charging current | 2A/10A/20/30A/40/50/60A adjustable | |
| cold start voltage | 23V | |
| Weaver function | Biggest support 6 weaver | |
| The battery type | 23V | |
| Protection function | Output short circuit overload over temperature protection, and other functions | |
| Communication port | RS232,USB | |
| The work environment | ||
| Working temperature | -10℃-50℃ | |
| Storage temperature | -15℃-60℃ | |
| Relative humidity | 5%-95% | |
| Physical | ||
| Size (D/W/H) | 120x295x468mm | |
| Net weight (KG) | 11 | |
Company Introduction
Through professional management methods, Sunboost has played a key role in the process of solar inverter companies industry. With strong scientific research and development capacities, the technical capabilities of Sunboost Technology Co.Ltd are widely recognized. Sunboost adheres to the concept of customer first. Get quote!
We have ample inventory and discounts for large purchases. Welcome to contact us!
