Home Energy Storage System Manufacturers - - Sunboost

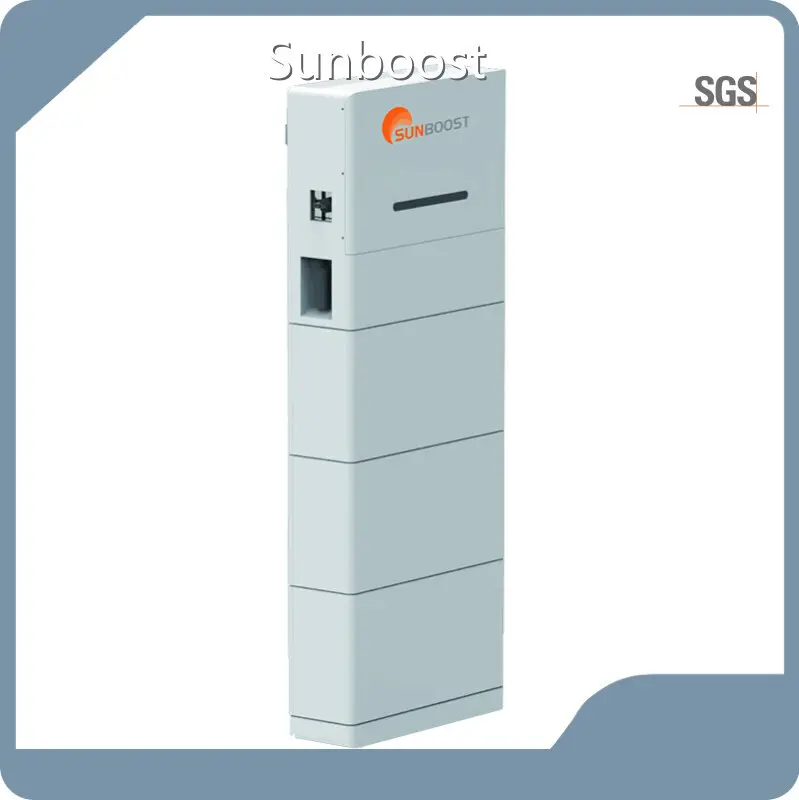

Product details of the home energy storage system manufacturers
Product Description
The design of Sunboost home energy storage system manufacturers expresses attraction and deep expression to the customers. The product is given a longer service time by our dedicated R&D team. The popularity of Sunboost also benefits from the implement of quality assurance and high-quality service.
Products Advantages
- Setting the trend and leading the industry.
- Unshakable Safety and Rock-Solid Stabil-ity, module-pack-system, triple protection.
- Built- in power distri bution box,one-stop solution for wiring and switching.
- Full Plug-and-Play design time,spaceand cost saving, one person can carry and install it within15 minutes.
- The perfect combination of inverter and battery.
- Mobile APP Monitoring, control anywhere with our app and cloud platform.
- High-end light luxury style, perfectly suits the European markets.
Product Specifications
| MODEL | TH-51200-SP | |||
| Nominal DC Voltage | 51.2V | |||
| Battery Capacity | 100Ah | 400Ah(200Ah*2) | ||
| Energy(KWh) | 5. 12KWh | 20.48KWh | ||
| Maximum Discharging Current | 100A | |||
| Cycle Life | 6000Cycles(80%DOD) | |||
| Certification | UN38.3, MSDS, CE-EMC | |||
| Dimensions(H*W*D)mm | 985*630*205mm, 1316*630*205mm, 1648*630*205mm | |||
| Net Weight(kg) | 130kg | 180kg | 230kg | |
| Communication method | WIFI/4G | |||
| Grid connection certification | EN50549- 1, EN50549- 10,PTPiREE, NCRFG, VDE4105, AS/NZS4777.2, NRS-097-2- 1 | |||
| All in One ESS series-TG-ESS | ||||
| MODEL | TG-HYB-5000 | TG-HYB-6000 | ||
| PV INPUT(DC) | ||||
| Recommend max.PVi nput power 10000Wp | 11000Wp | |||
| Max.PV input voltage | 600V | |||
| Min.operation/Start-up Voltage | 40V/50V | |||
| Rated PV input voltage | 360V | |||
| MPPT Voltage Range | 40-560V | |||
| No.of independent MPPT inputs | 2 | |||
| Max.PV input current | 16A | |||
| Max.DCs hort-circuit current | 20A | |||
| INPUT/OUTPUT(AC) | ||||
| Max.AC input power from grid | 10000VA | 11000VA | ||
| Rated AC output power | 5000W | 6000W | ||
| Rated AC output current (at 230V) | 21.8A | 26. 1A | ||
| Rated AC voltage | 220V/230V/240V | |||
| AC voltage range | 154V~276V | |||
| Rated grid frequency | 50Hz/60Hz | |||
| Grid frequency range | 45~55Hz/55~65Hz | |||
| EFFICIENCY | ||||
| Max.efficiency | 97.70% | |||
| European efficiency | 97.30% | |||
| PROTECTION&FUNCTION | Grid monitoring/DC reverse polarity protection/AC short circuit protection/Leakage current protection /DCswitch(PV)/DC fuse(battery)/Battery input reverse polarity protection | |||
| SurgeProtection | DC typeⅡ/AC typeⅡ | |||
| BATTERY DATA | ||||
| Battery Type | Li-ion battery | |||
| Battery voltage | 40-59V | |||
| Max.charge/discharge current | 100A | |||
| Max.charge/discharge power | 5000W | |||
| GENERAL DATA | ||||
| Dimensions(W*H*D) | 600*365*180mm | |||
| Weight | ≤25kg | |||
| Degree of protection | IP65 | |||
| BACKUP DATA(ONGRIDMODEL) | ||||
| Rated | output power for backup load | 6000W | ||
| Rated | output current for backup load | 27A | ||
| BACKUP DATA(OFF GRID MODEL) | ||||
| Rated voltage | 220V/230V/240V(±2%) | |||
| Frequency range | 50Hz/60Hz(±0.5%) | |||
| Switch time to emergency model | ≤10ms | |||
| Rated output power | 5000W/5000VA | 6000W/6000VA | ||
| Peak output power | 8400VA,10s | |||
| Certifications and Standards | ||||
| Grid Regulation | EN50549- 1, EN50549- 10, PTPiREE, NCRFG, VDE4105, AS/ NZS4777.2, NRS-097-2- 1 | |||
| Safety Regulation | IEC62109- 1&2, EN62109- 1&2 | |||
| EMC | EN61000-6- 1, EN61000-6-3, IEC61000-6- 1,IEC61000-6-3 | |||
