Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.
Products Advantages
4- 10kw available.
Full protection: With overload, over tempera-ture, short circuit protection.
UPS Mode: Seamless transition to backup mode to assure an uninterrupted powersupply.

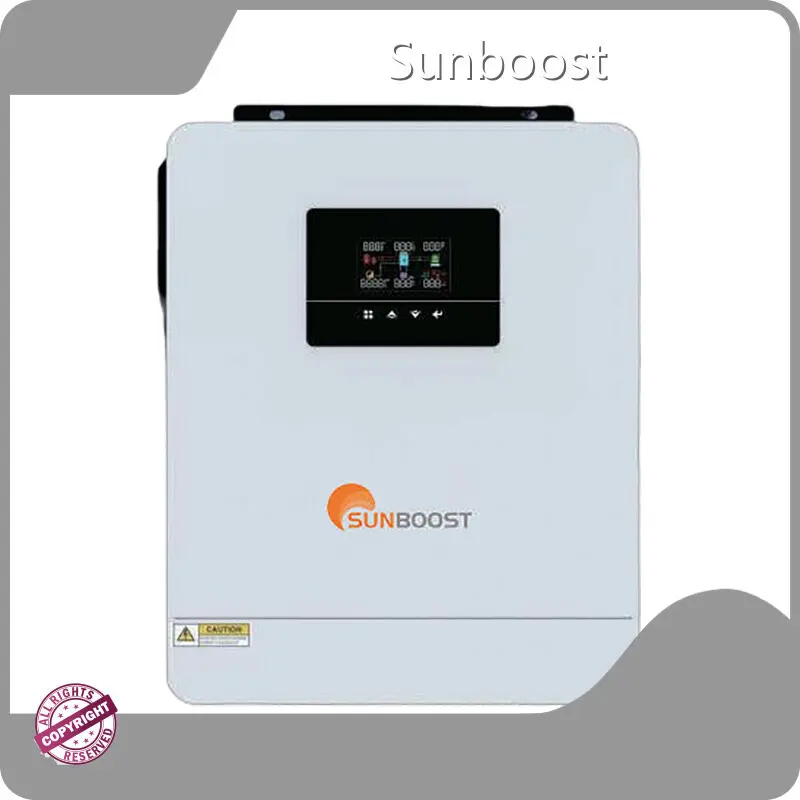

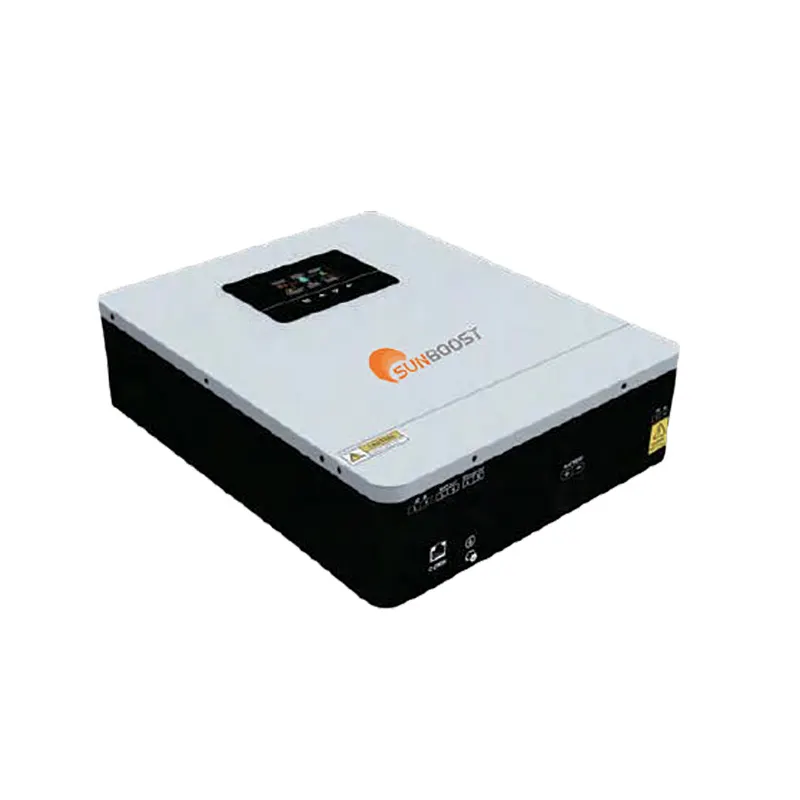

Pure sine Wave Inverter (off-grid)
Wide applications: Can power a variety of applianc-es in your home or office environment, including tube lights, fans, refrigerators, and air conditioners.
Product Specifications
TG-HVB 4- 10KW Single Phase OFF Grid Inverter | |||||||||||
MODEL | TGPFG-4KW TGPFG-6KW TGPGF-7KW TGPGF-8KW TGPGF- 10KW | ||||||||||
PV INPUT(DC) | |||||||||||
Recommend max.PV input power | 6200W 6500W 7000W 8000W 10000W | ||||||||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||||||||||
Start-up Voltage/lnitial Feeding Voltage | 60VDC/90VDC | ||||||||||
MPPT Voltage Range | 60-450VDC | ||||||||||
Number of MPPT Trackers/ Maximum In put Current | 1/23A 1/27A | ||||||||||
TWO LOAD OUTPUT POWER | |||||||||||
FullLoad | 3600W | 6000W | 7000W | 8000W | 1 oooow | ||||||
Maximum Main Load | 3600W | 6000W | 7000W | 8000W | 10OOOW | ||||||
Maximum Second Load(battery mode) | 1200W | 2000W | 2400W | 2733W | 3400W | ||||||
Main Load Cut Off Voltage | 22VDC | 44VDC | |||||||||
Main Load Return Voltage | 26VDC | 52VDC | |||||||||
GRID OUTPUT(AC) | |||||||||||
Nominal Output Voltage | 220/230/240VAC | ||||||||||
Output Voltage Range | 1 95.5-253VAC | ||||||||||
Nominal Output Current | 15.7A 27.OA 31.3A 35.6A 44.3A | ||||||||||
Power Factor | >0.99 | ||||||||||
Feed-in Grid Frequency Range | 49-51 ±1 Hz | ||||||||||
Maximum Conversion Efficiency(SloartoAC) | 98% | ||||||||||
AC INPUT | |||||||||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||||||||||
Acceptable Input Voltage Range | 90-280VACor1 70-280VAC | ||||||||||
Maximum AC Input Current | 40A 50A 40A 40A 50A | ||||||||||
Nominal operating frequency | 50/60HZ | ||||||||||
Surge power | 7200W 10000W 14400W 16400W 20400W | ||||||||||
BATTERY MODE OUTPUT(AC) | |||||||||||
Nominal Output Voltage | 220/230/240VAC | ||||||||||
Output Waveform | Puresinewave | ||||||||||
Efficiency(DC to AC) | 94% | ||||||||||
Nominal DC Voltage | 24V 48V | ||||||||||
Maximum Charging Current (Solar to AC) | 120A | 140A | 160A | 160A | |||||||
Maximum AC Charging Current | 100A | 120A | 140A | 140A | |||||||
AC INPUT | |||||||||||
Dimension,D*W*H(mm) | 420*310*110 | ||||||||||
Cartoon Dimension,D*W*H(mm) | 500*415*1 80 588*463*205 | ||||||||||
Net Weight(kgs) | 8.8 | 9.8 | 13.1 | 14.2 | 14.5 | ||||||
Gross Weight(kgs) | 10 | 11 | 14.1 | 15.7 | 16 | ||||||
CommunicationPort | RS232/WIFI/GPRS/LITHIUMBATTERY |
Company Advantages
· Exclusive use of high quality materials is anticipated in the manufacturing processes of off grid battery inverter. These materials are pinpointed through direct experience and selected from among the best and most innovative on the market.
· The quality and performance of this product are backed up by qualified staff and technical knowledge.
· Sunboost Technology Co.Ltd grasps the essential laws of objective things and the nature of human nature, and develop harmoniously.
Company Features
· Accumulating years of experience and expertise in the design and production of off grid battery inverter, we have become a reliable manufacturer and supplier in the industry.
· We have our own product laboratory. It is equipped with the latest technology to make testing and releasing our products available with the best accuracy.
· We are committed to creating friendly and pollution-free surroundings. From the raw materials, the production process, to the products’ life cycles, we are doing our best to reduce the impact.
Application of the Product
off grid battery inverter is one of the main products of Sunboost. With wide application, our product can be applied to different industries and fields. And it is deeply loved and favored by customers.
Sunboost provides comprehensive and reasonable solutions based on customer's specific situations and needs.
