Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.

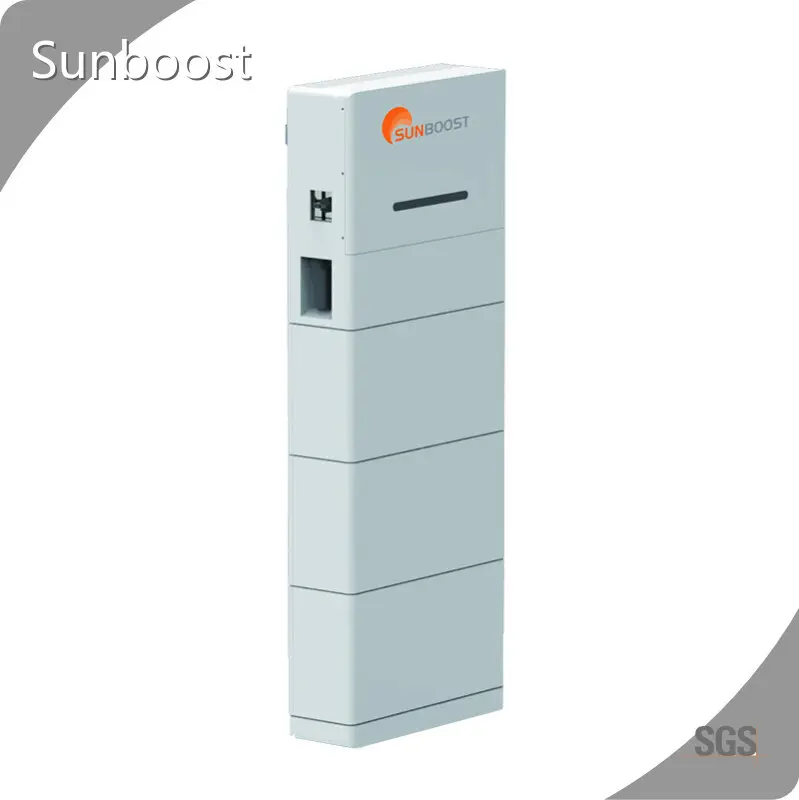

Hot Portable Energy Storage System Sunboost Brand
Product details of the portable energy storage system
Product Overview
The design of portable energy storage system meets modern tendency. Our team adopts test machine guarantee the quality of this product. The product is really economical in price and has a bright market prospect.
Product Description
Compared with similar products, the portable energy storage system of Sunboost is more strict in the selection of raw materials. The specific aspects are as follows.
Products Advantages
- Setting the trend and leading the industry.
- Unshakable Safety and Rock-Solid Stabil-ity, module-pack-system, triple protection.
- Built- in power distri bution box,one-stop solution for wiring and switching.
- Full Plug-and-Play design time,spaceand cost saving, one person can carry and install it within15 minutes.
- The perfect combination of inverter and battery.
- Mobile APP Monitoring, control anywhere with our app and cloud platform.
- High-end light luxury style, perfectly suits the European markets.
Product Specifications
| MODEL | TH-51200-SP | |||
| Nominal DC Voltage | 51.2V | |||
| Battery Capacity | 100Ah | 400Ah(200Ah*2) | ||
| Energy(KWh) | 5. 12KWh | 20.48KWh | ||
| Maximum Discharging Current | 100A | |||
| Cycle Life | 6000Cycles(80%DOD) | |||
| Certification | UN38.3, MSDS, CE-EMC | |||
| Dimensions(H*W*D)mm | 985*630*205mm, 1316*630*205mm, 1648*630*205mm | |||
| Net Weight(kg) | 130kg | 180kg | 230kg | |
| Communication method | WIFI/4G | |||
| Grid connection certification | EN50549- 1, EN50549- 10,PTPiREE, NCRFG, VDE4105, AS/NZS4777.2, NRS-097-2- 1 | |||
| All in One ESS series-TG-ESS | ||||
| MODEL | TG-HYB-5000 | TG-HYB-6000 | ||
| PV INPUT(DC) | ||||
| Recommend max.PVi nput power 10000Wp | 11000Wp | |||
| Max.PV input voltage | 600V | |||
| Min.operation/Start-up Voltage | 40V/50V | |||
| Rated PV input voltage | 360V | |||
| MPPT Voltage Range | 40-560V | |||
| No.of independent MPPT inputs | 2 | |||
| Max.PV input current | 16A | |||
| Max.DCs hort-circuit current | 20A | |||
| INPUT/OUTPUT(AC) | ||||
| Max.AC input power from grid | 10000VA | 11000VA | ||
| Rated AC output power | 5000W | 6000W | ||
| Rated AC output current (at 230V) | 21.8A | 26. 1A | ||
| Rated AC voltage | 220V/230V/240V | |||
| AC voltage range | 154V~276V | |||
| Rated grid frequency | 50Hz/60Hz | |||
| Grid frequency range | 45~55Hz/55~65Hz | |||
| EFFICIENCY | ||||
| Max.efficiency | 97.70% | |||
| European efficiency | 97.30% | |||
| PROTECTION&FUNCTION | Grid monitoring/DC reverse polarity protection/AC short circuit protection/Leakage current protection /DCswitch(PV)/DC fuse(battery)/Battery input reverse polarity protection | |||
| SurgeProtection | DC typeⅡ/AC typeⅡ | |||
| BATTERY DATA | ||||
| Battery Type | Li-ion battery | |||
| Battery voltage | 40-59V | |||
| Max.charge/discharge current | 100A | |||
| Max.charge/discharge power | 5000W | |||
| GENERAL DATA | ||||
| Dimensions(W*H*D) | 600*365*180mm | |||
| Weight | ≤25kg | |||
| Degree of protection | IP65 | |||
| BACKUP DATA(ONGRIDMODEL) | ||||
| Rated | output power for backup load | 6000W | ||
| Rated | output current for backup load | 27A | ||
| BACKUP DATA(OFF GRID MODEL) | ||||
| Rated voltage | 220V/230V/240V(±2%) | |||
| Frequency range | 50Hz/60Hz(±0.5%) | |||
| Switch time to emergency model | ≤10ms | |||
| Rated output power | 5000W/5000VA | 6000W/6000VA | ||
| Peak output power | 8400VA,10s | |||
| Certifications and Standards | ||||
| Grid Regulation | EN50549- 1, EN50549- 10, PTPiREE, NCRFG, VDE4105, AS/ NZS4777.2, NRS-097-2- 1 | |||
| Safety Regulation | IEC62109- 1&2, EN62109- 1&2 | |||
| EMC | EN61000-6- 1, EN61000-6-3, IEC61000-6- 1,IEC61000-6-3 | |||
Company Introduction
Located in shen zhen, Sunboost Technology Co.Ltd is mainly responsible for the production and sales of Home storage battery,Commercial & Industrial storage battery,hybrid solar inverter. We are willing to provide intimate services for consumers with high quality, flexible and adaptable service mode. We are committed to guaranteeing the product quality and after-sales service. Welcome to contact us for cooperation!
