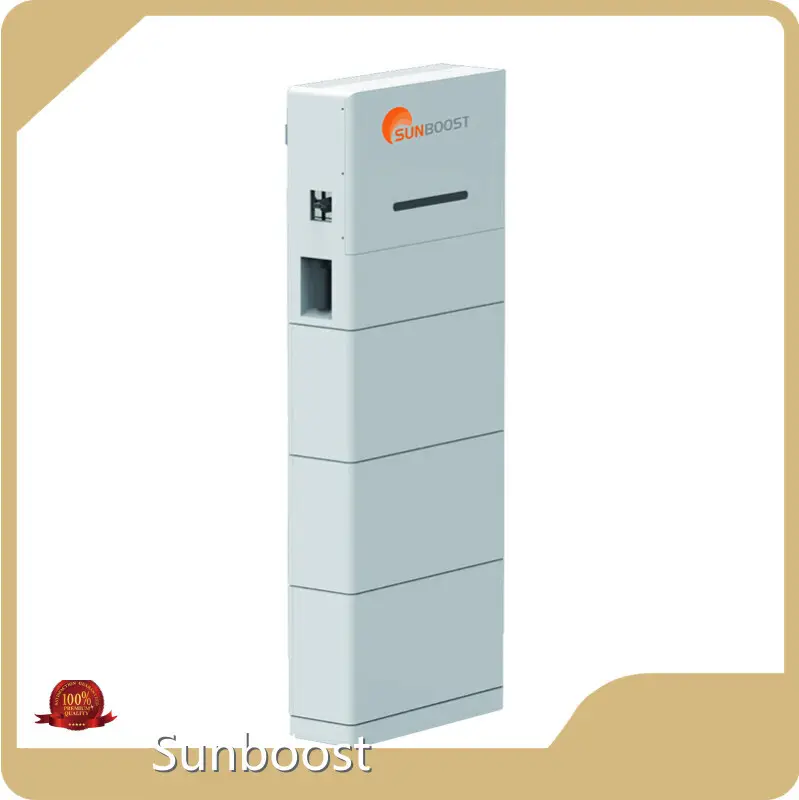

Lithium Ion Battery Energy Storage System by Sunboost
Product details of the lithium ion battery energy storage system
Quick Overview
Sunboost lithium ion battery energy storage system combines the advantages of a conventional process and modern production. The product must be checked by our inspection system to ensure the quality meets the industry requirement. It proves to be great that Sunboost has developed its own sales network.
Product Description
Our lithium ion battery energy storage system has the following advantages over similar products.
Products Advantages
- Setting the trend and leading the industry.
- Unshakable Safety and Rock-Solid Stabil-ity, module-pack-system, triple protection.
- Built- in power distri bution box,one-stop solution for wiring and switching.
- Full Plug-and-Play design time,spaceand cost saving, one person can carry and install it within15 minutes.
- The perfect combination of inverter and battery.
- Mobile APP Monitoring, control anywhere with our app and cloud platform.
- High-end light luxury style, perfectly suits the European markets.
Product Specifications
| MODEL | TH-51200-SP | |||
| Nominal DC Voltage | 51.2V | |||
| Battery Capacity | 100Ah | 400Ah(200Ah*2) | ||
| Energy(KWh) | 5. 12KWh | 20.48KWh | ||
| Maximum Discharging Current | 100A | |||
| Cycle Life | 6000Cycles(80%DOD) | |||
| Certification | UN38.3, MSDS, CE-EMC | |||
| Dimensions(H*W*D)mm | 985*630*205mm, 1316*630*205mm, 1648*630*205mm | |||
| Net Weight(kg) | 130kg | 180kg | 230kg | |
| Communication method | WIFI/4G | |||
| Grid connection certification | EN50549- 1, EN50549- 10,PTPiREE, NCRFG, VDE4105, AS/NZS4777.2, NRS-097-2- 1 | |||
| All in One ESS series-TG-ESS | ||||
| MODEL | TG-HYB-5000 | TG-HYB-6000 | ||
| PV INPUT(DC) | ||||
| Recommend max.PVi nput power 10000Wp | 11000Wp | |||
| Max.PV input voltage | 600V | |||
| Min.operation/Start-up Voltage | 40V/50V | |||
| Rated PV input voltage | 360V | |||
| MPPT Voltage Range | 40-560V | |||
| No.of independent MPPT inputs | 2 | |||
| Max.PV input current | 16A | |||
| Max.DCs hort-circuit current | 20A | |||
| INPUT/OUTPUT(AC) | ||||
| Max.AC input power from grid | 10000VA | 11000VA | ||
| Rated AC output power | 5000W | 6000W | ||
| Rated AC output current (at 230V) | 21.8A | 26. 1A | ||
| Rated AC voltage | 220V/230V/240V | |||
| AC voltage range | 154V~276V | |||
| Rated grid frequency | 50Hz/60Hz | |||
| Grid frequency range | 45~55Hz/55~65Hz | |||
| EFFICIENCY | ||||
| Max.efficiency | 97.70% | |||
| European efficiency | 97.30% | |||
| PROTECTION&FUNCTION | Grid monitoring/DC reverse polarity protection/AC short circuit protection/Leakage current protection /DCswitch(PV)/DC fuse(battery)/Battery input reverse polarity protection | |||
| SurgeProtection | DC typeⅡ/AC typeⅡ | |||
| BATTERY DATA | ||||
| Battery Type | Li-ion battery | |||
| Battery voltage | 40-59V | |||
| Max.charge/discharge current | 100A | |||
| Max.charge/discharge power | 5000W | |||
| GENERAL DATA | ||||
| Dimensions(W*H*D) | 600*365*180mm | |||
| Weight | ≤25kg | |||
| Degree of protection | IP65 | |||
| BACKUP DATA(ONGRIDMODEL) | ||||
| Rated | output power for backup load | 6000W | ||
| Rated | output current for backup load | 27A | ||
| BACKUP DATA(OFF GRID MODEL) | ||||
| Rated voltage | 220V/230V/240V(±2%) | |||
| Frequency range | 50Hz/60Hz(±0.5%) | |||
| Switch time to emergency model | ≤10ms | |||
| Rated output power | 5000W/5000VA | 6000W/6000VA | ||
| Peak output power | 8400VA,10s | |||
| Certifications and Standards | ||||
| Grid Regulation | EN50549- 1, EN50549- 10, PTPiREE, NCRFG, VDE4105, AS/ NZS4777.2, NRS-097-2- 1 | |||
| Safety Regulation | IEC62109- 1&2, EN62109- 1&2 | |||
| EMC | EN61000-6- 1, EN61000-6-3, IEC61000-6- 1,IEC61000-6-3 | |||
