Professional Hybrid Off Grid Solar Inverter Sunboost Company

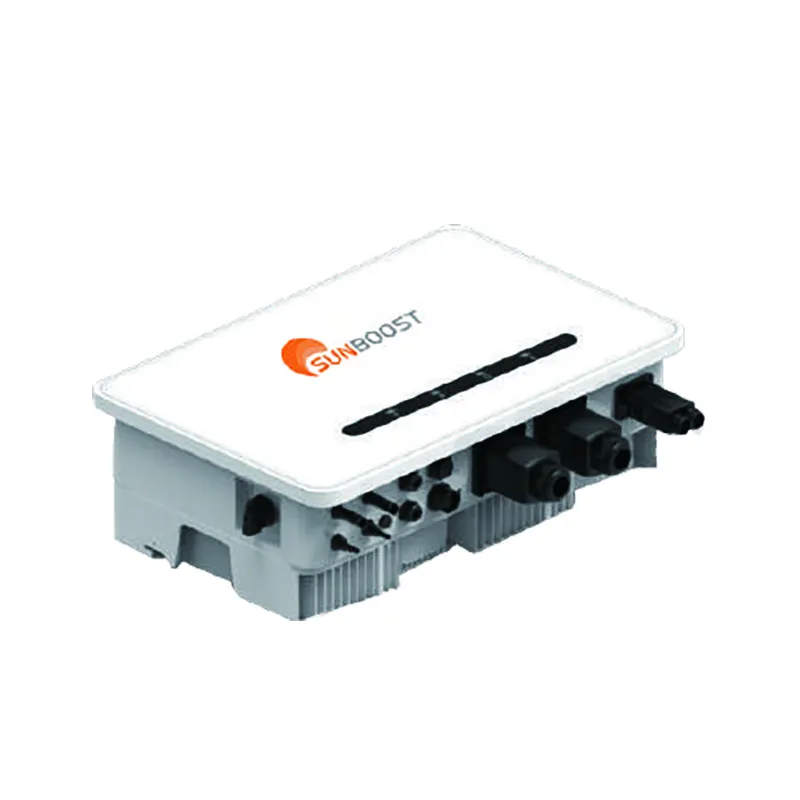

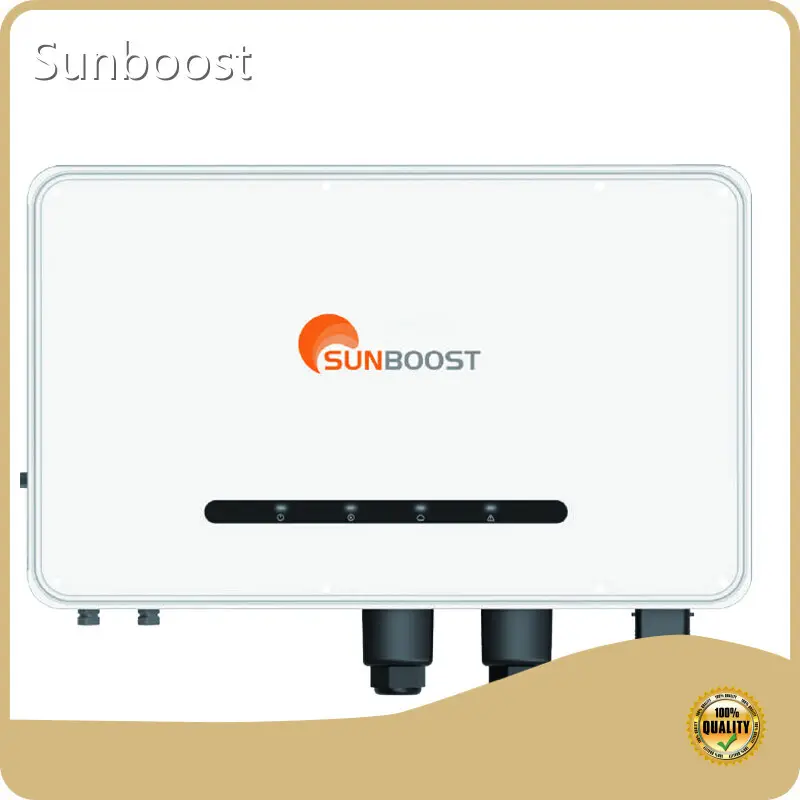

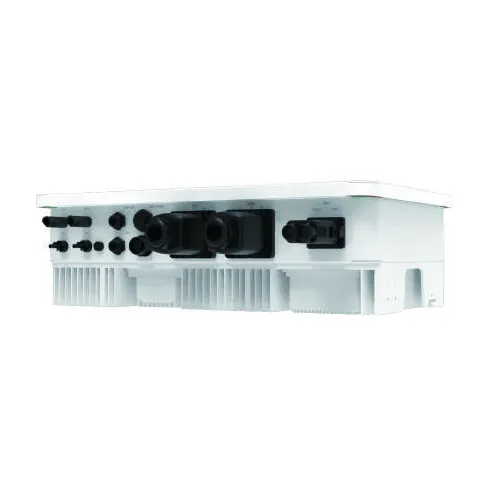

Product details of the hybrid off grid solar inverter
Product Information
Sunboost hybrid off grid solar inverter is elaborately designed to deliver better user experience. The product has been tested by a third-party authoritative agency. Sunboost Technology Co.Ltd is committed to providing customers with high quality and competitive products and services.
Products Advantages
- 10 years Warranty.
- Max. PV input current 16A: compatible across All Power Ranges of Solar Panels.
- UPS Mode: Seamless transition to backup mode to assure an uninterrupted power supply.
- Wide PV input range : 40-600 Vdc, 40V means one single solar pane lcan make it work.
- Twice Of Energy Potential : PV Input Power is Twice Of ACOutput Power, enabling more solar energy input.
- Protection: Anti-islanding Protection, Insula-tion Resistance Detection and Leakage monitoring protection.
Product Specifications
| Single Phase Hybrid Inverter-TG-HYB | ||||||
| MODEL TG-HYB-3600 TG-HYB-5000 TG-HYB-6000 | ||||||
| PV INPUT(DC) | ||||||
| Recommend max.PV input power 8700Wp | 10000Wp | 11000Wp | ||||
| Max.PV input voltage | 600V | |||||
| Min.operation/Start-up Voltage | 40V/50V | |||||
| ated PV input voltage | 360V | |||||
| MPPT Voltage Range | 40-560V | |||||
| No.of independent MPPT inputs | 2 | |||||
| Max. PV input current | 16A | |||||
| Max. DC short-circuit current | 20A | |||||
| INPUT/OUTPUT(AC) | ||||||
| Max.AC input power from grid | 8700VA | 10000VA | 11000VA | |||
| Rated AC output power | 3680W | 5000W | 6000W | |||
| Rated AC output current (at 230V) | 16A | 21.8A | 26. 1A | |||
| Rated AC voltage | 220V/230V/240V | |||||
| AC voltage range | 154V~276V | |||||
| Rated grid frequency | 50Hz/60Hz | |||||
| Grid frequency range | 45~55Hz/55~65Hz | |||||
| EFFICIENCY | ||||||
| Max.efficiency | 97.70% | |||||
| European efficiency | 97.30% | |||||
| PROTECTION&FUNCTION | Grid monitoring/DC reverse polarity protection/AC short circuit protection/Leakage current protec-tion /DCs witch(PV)/DC fuse(battery)/Battery input reverse polarity protection | |||||
| SurgeProtection | DC typeⅡ/AC typeⅡ | |||||
| BATTERY DATA | ||||||
| Battery Type | Li-ion battery | |||||
| Battery voltage | 40-59V | |||||
| Max.charge/discharge current | 100A | |||||
| Max.charge/discharge power | 5000W | |||||
| GENERAL DATA | ||||||
| Dimensions(W*H*D) | 600*365*180mm | |||||
| Weight | ≤25kg | |||||
| Degree of protection | IP65 | |||||
| Operating ambient temperature range | -25℃~60℃ | |||||
| BACKUP DATA(ONGRIDMODEL) | ||||||
| Rated | output power for backup load | 6000W | ||||
| Rated | output current for backup load | 27A | ||||
| BACKUP DATA(OFF GRID MODEL) | ||||||
| Rated voltage | 220V/230V/240V(±2%) | |||||
| Frequency range | 50Hz/60Hz(±0.5%) | |||||
| Switch time to emergency model | ≤10ms | ≤10ms | ≤10ms | |||
| Rated output power | 3680W/3680VA | 5000W/5000VA | 6000W/6000VA | |||
| Peak output power | 8400VA, 10s | |||||
| Certifications and Standards | ||||||
| Grid Regulation | EN50549- 1, EN50549- 10, PTPiREE, NCRFG, VDE4105, AS/NZS 4777.2, NRS-097-2- 1 | |||||
| Safety Regulation | IEC62109- 1&2, EN62109- 1&2 | |||||
| EMC | EN61000-6- 1, EN61000-6-3, IEC61000-6- 1, IEC61000-6-3 | |||||
Company Feature
• Sunboost's Home storage battery,Commercial & Industrial storage battery,hybrid solar inverter gain a certain position in the international market. They are exported to Southeast Asia, Africa, Europe, America, and other countries and regions.
• Based on the sound management service system, our company is capable of providing customers with professional one-stop service.
• Our company is close to the road with convenient transportation. It facilitates the transportation of products and guarantees the timely supply of products.
If you want to know more detailed information, feel free to consult Sunboost.
