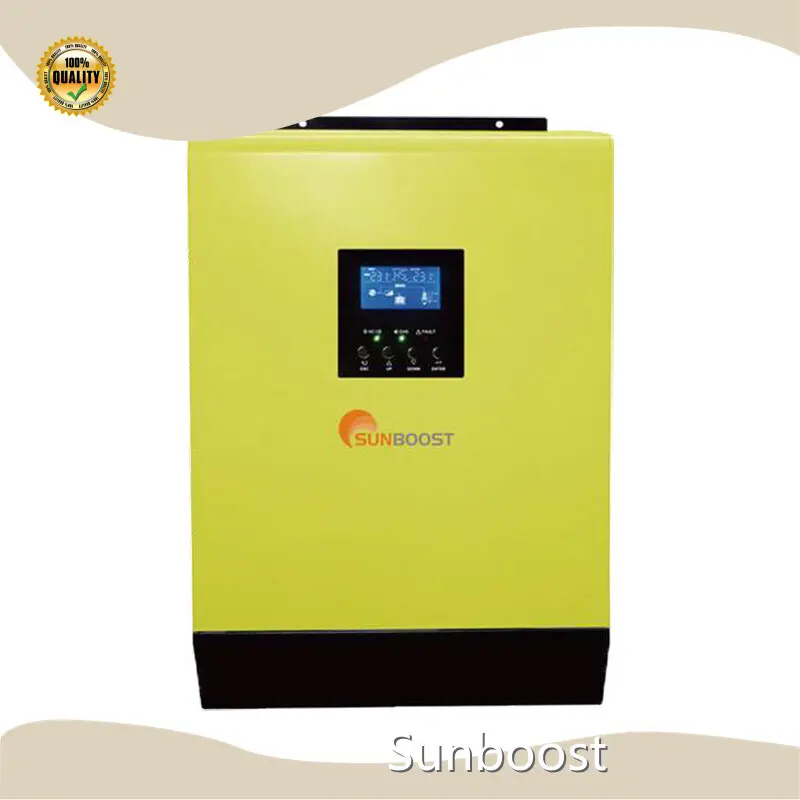

Solar Inverter Supplier by Sunboost
Product details of the solar inverter supplier
Product Overview
The unique design of solar inverter supplier overshadows that of other companies. solar inverter supplier serves many famous brand. The solar inverter supplier produced by our company is widely used. The product has gained the trust of the clients around the world and will be more applied in the coming future.
Product Introduction
Under the premise of ensuring the same price, the solar inverter supplier that we develop and produce as a whole has been substantially improved in a scientific way, as shown in the following aspects.
Products Advantages
- Hybrid off grid inverter, support mains, photovoltaic,battery access
- Supports battery cold start
- DPS digital control technology, double transform online design, using input PFC technology, input
power up to 0.99, efficient inverter topology, higher output efficiency
- The battery balancing function optimizes battery performance and extends battery life
- Built-in 80A MPPT solar charger, higher energy storage efficiency
- Mains/ photovoltaic/battery/ multi-mode optimal output
- Built-in air filter kit for harsh environments
- Max. 9 parallel machines
Product Specifications
| SPECIFICATION | |
| MODEL | VII 5KW |
| Rated power | 5000VA |
| PV input | |
| Maximum photovoltaic array power | 5000W |
| Maximum open circuit voltage of photovoltaic array | 450Vdc |
| MPPT range @ Operating voltage | 120Vdc-430Vd |
| Maximum photovoltaic array power | 5000W |
| Rated voltage | 320V |
| MPPT quantity | 1 |
| Grid-connected operating mode (AC) | |
| Grid-connected Output (AC) | |
| Rated voltage | 220/230/240Vac |
| Suitable voltage range | 184 ~ 264.5 VAC |
| Suitable frequency range | 47.5-51.5Hz |
| Maximum output current | 21.7A |
| Power factor | >0.99 |
| Maximum conversion efficiency | 95% |
| Off-grid working mode | |
| Mains mode | |
| Voltage range | 170-280Vac(applicable to personal computer); 90-280Vac(applicable to household appliances） |
| Frequency | 50/60HZ |
| Efficie ncy | 95% |
| Battery mode | |
| Rated voltage | 220/230/240 VAC |
| Wave form | Pure sine wave |
| Efficie ncy | 93% |
| Energy storage battery | |
| Battery voltage | 48V |
| Maximum charging current (MPPT) | 80A |
| Maximum charging current (AC) | 80A |
| Maximum charging current | 80A |
| Battery type | Lead-acid, AGM, lithium battery |
| screen | |
| Parallel function | Support nine largest weaver |
| External security module (optional) | yes |
| Commun icati on in terface | USB,RS232,Dry con tact |
| Protection function | Output short circuit, overload, over temperature protection function |
| Working environment | |
| Operating temperature | -10c-50°C |
| Storage temperature | -15°C-60 °C |
| Relative humidity | 5%-95% |
| Physical | |
| Size (D/W/H) | 480x310x125mm |
| Net weight (KG) | 11 |
| Executive standard | CE |
