Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.
Solar Inverter Supplier - - Sunboost

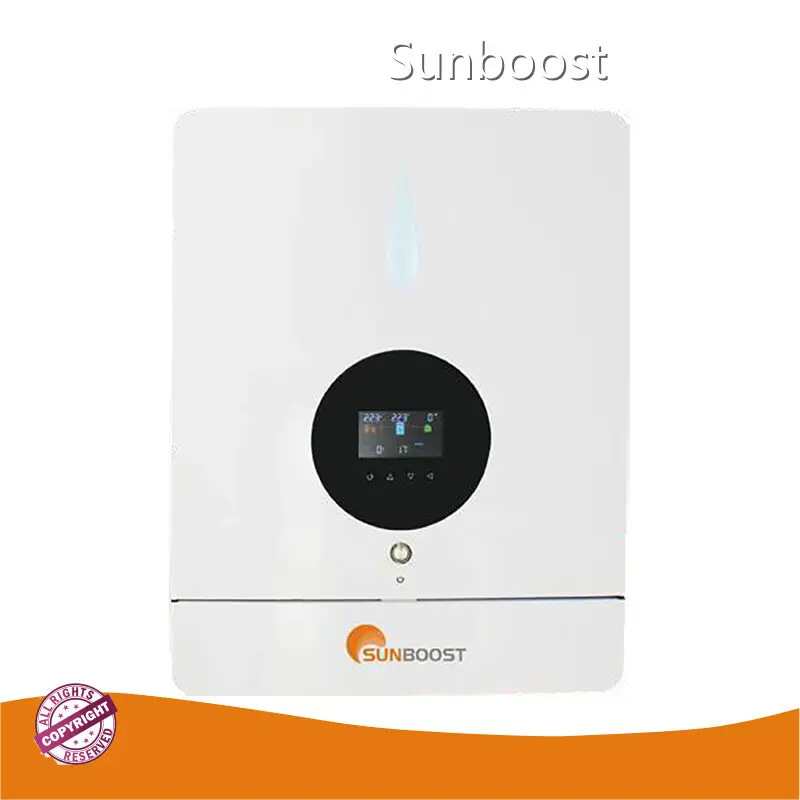

Product details of the solar inverter supplier
Quick Overview
Environmentally friendly materials are used in production of Sunboost solar inverter supplier. It is widely praised for its various special features and superb performance. Sunboost Technology Co.Ltd has established strategic cooperation relationships with many famous companies.
Product Information
Sunboost's solar inverter supplier gains a high market share for the following advantages.
Products Advantages
- Hybrid off grid inverter
- Support PV, mains/generator, battery access
- Dual PV input and dual output, intelligent load management
- The output priority, charging priority and charging current can be set through the panel
- Over temperature, overload, short circuit protection
- Intelligent charging design to optimize battery performance
- Built-in dust kit
Product Specifications
| MODEL | VII 10.5KW |
| Rated power | 10.5KVA/10.5KW |
| Ac input | |
| Rated voltage | 230VAC |
| Voltage range | 170-280Vac(computer);90-280Vac(Household appliances) |
| Exportation | |
| Output voltage range | 230VAC±5% |
| Mains output power | 10500W |
| Auxiliary circuit output power | 3500W |
| Surge power | 2*rated power for 5 seconds |
| efficiency | 95% |
| Conversion time | 10ms(computer);20ms(Household appliances) |
| Wave form | Pure sine wave |
| Grid-connection parameter | |
| Rated grid-connected voltage | 220/230/240Vac |
| Grid-connected voltage range | 195~253Vac |
| Grid-connected frequency range | 49~51±1Hz/59~61±1Hz |
| Rated current | 45.7A |
| Power factor | 0.99 |
| Maximum conversion efficiency (direct current AC) | 98% |
| Battery | |
| Battery voltage | 48V |
| Floating charge voltage | 54V |
| Overcharge protection | 63VDC |
| Photovoltaic charging & AC charging | |
| Photovoltaic charging type | MPPT |
| Maximum photovoltaic array power | 10500W |
| Rated photovoltaic input voltage | 360V |
| MPPT operating voltage range | 90 ~ 500 VDC |
| Maximum open circuit voltage ofphotovoltaic array | 500 VDC |
| Maximum photovoltaic chargingcurrent | 180A |
| Maximum AC charging current | 160A |
| Maximum charging current | 180A |
| Physics | |
| SIZE（D/W/H） | 130*390*537mm |
| Net weight(KG) | 14.5 |
| Communication interface | RS232 |
| Working environment | |
| Relative humidity | 5% to 95% Relative humidity (no condensation) |
| Operating temperature | -10℃ to 50℃ |
| Storage temperature | -15℃ to 60℃ |
| Executive standard | |
| Safety regulation | CE |
Company Introduction
Sunboost Technology Co.Ltd, short for Sunboost, was established in shen zhen. We are a modern company devoted to producing Home storage battery,Commercial & Industrial storage battery,hybrid solar inverter. Sunboost creates value for customers from their perspective, which is aligned with the business concept. We are committed to providing quality products and services depending on talents and technological advantages. Our company has a professional, young and modern staff team. Our team members are brave in innovation and breakthroughs, and they pay attention to actual effect and details. Based on the common goal, all of us are working together to provide products and services of best quality. Sunboost has a team of experienced professionals, mature technology and a sound service system. All this can provide customers with one-stop solutions.
Welcome to contact us.
