Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.

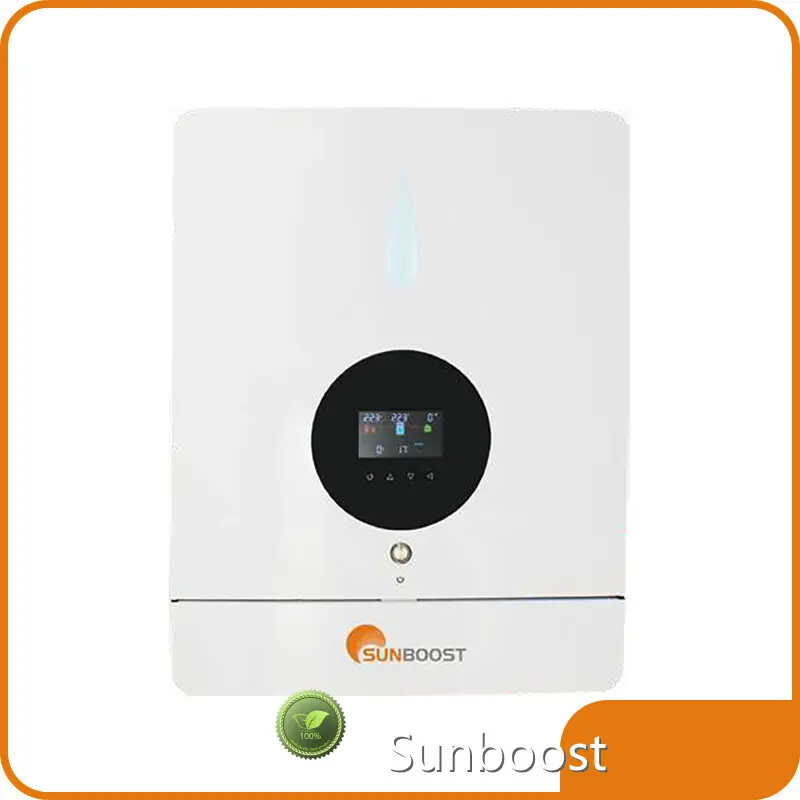

Solar Power Inverter Manufacturers Sunboost Brand
Company Advantages
· Sunboost solar power inverter manufacturers is delicately manufactured by combining the best materials and the lean production method.
· The quality inspection department strictly checks quality from the raw material to the shipment process.
· Sunboost Technology Co.Ltd has complete sample and reasonable prices for solar power inverter manufacturers.
Products Advantages
- Hybrid off grid inverter
- Support PV, mains/generator, battery access
- Dual PV input and dual output, intelligent load management
- The output priority, charging priority and charging current can be set through the panel
- Over temperature, overload, short circuit protection
- Intelligent charging design to optimize battery performance
- Built-in dust kit
Product Specifications
| MODEL | VII 10.5KW |
| Rated power | 10.5KVA/10.5KW |
| Ac input | |
| Rated voltage | 230VAC |
| Voltage range | 170-280Vac(computer);90-280Vac(Household appliances) |
| Exportation | |
| Output voltage range | 230VAC±5% |
| Mains output power | 10500W |
| Auxiliary circuit output power | 3500W |
| Surge power | 2*rated power for 5 seconds |
| efficiency | 95% |
| Conversion time | 10ms(computer);20ms(Household appliances) |
| Wave form | Pure sine wave |
| Grid-connection parameter | |
| Rated grid-connected voltage | 220/230/240Vac |
| Grid-connected voltage range | 195~253Vac |
| Grid-connected frequency range | 49~51±1Hz/59~61±1Hz |
| Rated current | 45.7A |
| Power factor | 0.99 |
| Maximum conversion efficiency (direct current AC) | 98% |
| Battery | |
| Battery voltage | 48V |
| Floating charge voltage | 54V |
| Overcharge protection | 63VDC |
| Photovoltaic charging & AC charging | |
| Photovoltaic charging type | MPPT |
| Maximum photovoltaic array power | 10500W |
| Rated photovoltaic input voltage | 360V |
| MPPT operating voltage range | 90 ~ 500 VDC |
| Maximum open circuit voltage ofphotovoltaic array | 500 VDC |
| Maximum photovoltaic chargingcurrent | 180A |
| Maximum AC charging current | 160A |
| Maximum charging current | 180A |
| Physics | |
| SIZE（D/W/H） | 130*390*537mm |
| Net weight(KG) | 14.5 |
| Communication interface | RS232 |
| Working environment | |
| Relative humidity | 5% to 95% Relative humidity (no condensation) |
| Operating temperature | -10℃ to 50℃ |
| Storage temperature | -15℃ to 60℃ |
| Executive standard | |
| Safety regulation | CE |
Company Features
· For several decades, Sunboost Technology Co.Ltd has been committed to the manufacture of solar power inverter manufacturers.
· All production machines in Sunboost Technology Co.Ltd are imported from famous machine suppliers. We have good supervision of production for solar power inverter manufacturers. Sunboost Technology Co.Ltd have established strict management system to further guarantee quality.
· We will continue to innovate and improve. Get more info!
Application of the Product
Our solar power inverter manufacturers has a wide range of applications.
In addition to high-quality products, Sunboost also provides effective solutions based on the actual conditions and the needs of different customers.
