Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.

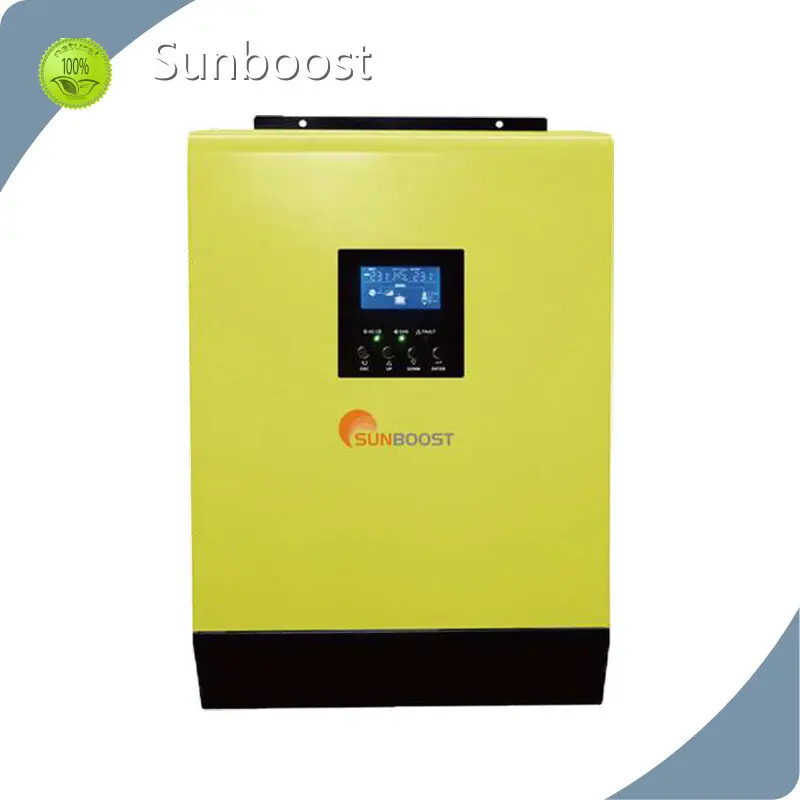

Product details of the solar inverter supplier
Product Description
In the production of Sunboost solar inverter supplier, the latest machining techniques is used. The quality of this product is guaranteed with the assistance of our vast expertise and immerse knowledge in this domain. The product has successfully got into the international market and has a broad market prospect.
Products Advantages
- Hybrid off grid inverter, support mains, photovoltaic,battery access
- Supports battery cold start
- DPS digital control technology, double transform online design, using input PFC technology, input
power up to 0.99, efficient inverter topology, higher output efficiency
- The battery balancing function optimizes battery performance and extends battery life
- Built-in 80A MPPT solar charger, higher energy storage efficiency
- Mains/ photovoltaic/battery/ multi-mode optimal output
- Built-in air filter kit for harsh environments
- Max. 9 parallel machines
Product Specifications
SPECIFICATION | |
MODEL | VII 5KW |
Rated power | 5000VA |
PV input | |
Maximum photovoltaic array power | 5000W |
Maximum open circuit voltage of photovoltaic array | 450Vdc |
MPPT range @ Operating voltage | 120Vdc-430Vd |
Maximum photovoltaic array power | 5000W |
Rated voltage | 320V |
MPPT quantity | 1 |
Grid-connected operating mode (AC) | |
Grid-connected Output (AC) | |
Rated voltage | 220/230/240Vac |
Suitable voltage range | 184 ~ 264.5 VAC |
Suitable frequency range | 47.5-51.5Hz |
Maximum output current | 21.7A |
Power factor | >0.99 |
Maximum conversion efficiency | 95% |
Off-grid working mode | |
Mains mode | |
Voltage range | 170-280Vac(applicable to personal computer); 90-280Vac(applicable to household appliances) |
Frequency | 50/60HZ |
Efficie ncy | 95% |
Battery mode | |
Rated voltage | 220/230/240 VAC |
Wave form | Pure sine wave |
Efficie ncy | 93% |
Energy storage battery | |
Battery voltage | 48V |
Maximum charging current (MPPT) | 80A |
Maximum charging current (AC) | 80A |
Maximum charging current | 80A |
Battery type | Lead-acid, AGM, lithium battery |
screen | |
Parallel function | Support nine largest weaver |
External security module (optional) | yes |
Commun icati on in terface | USB,RS232,Dry con tact |
Protection function | Output short circuit, overload, over temperature protection function |
Working environment | |
Operating temperature | -10c-50°C |
Storage temperature | -15°C-60 °C |
Relative humidity | 5%-95% |
Physical | |
Size (D/W/H) | 480x310x125mm |
Net weight (KG) | 11 |
Executive standard | CE |
Company Feature
• Our company's geographic location is superior, and the traffic is convenient.
• Close to the customer's needs, our company takes innovation to create a reasonable service plan for customers. Thus, we can build a harmonious relationship with customers, and create a better service experience for customers.
• Our products are not only sold well in the domestic market, but also exported to many developed countries and regions around.
As the source manufacturer of Home storage battery,Commercial & Industrial storage battery,hybrid solar inverter, Sunboost provides discounts for each customer. Please contact us for specific quotation or discount.
