Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.
Sunboost Energy Storage Battery Factory -
Products Advantages
- Unshakable Safety and Rock-Solid Stabil-ity , module-pack-system, triple protection.
- Built- in power distri bution box,one-stop solution for wiring and switching.
- Plug and play design : easy installation, time, space and costsaving.
- The perfect combination of inverter and battery.
- Mobile APP Monitoring, control anywhere with our app and cloud platform.
- High-end light luxury style, perfectly suits the European markets.

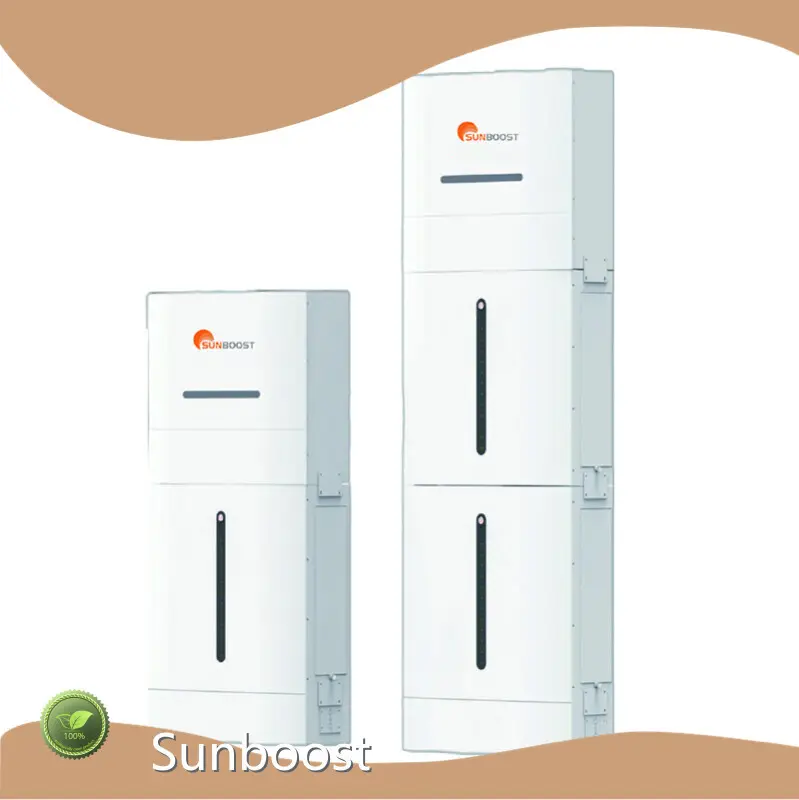

Product Specifications
| MODEL | TH-51200-SP | ||
| Nominal DC Voltage | 51.2V | ||
| Battery Capacity | 200Ah | 400Ah(200Ah*2) | |
| Energy(KWh) | 10.24KWh | 20.48KWh | |
| Maximum Discharging Current | 120A | ||
| Cycle Life | 6000Cycles(80%DOD) | ||
| Certification | UN38.3, MSDS, CE-EMC, IEC62619, UL1973 | ||
| Environment humidity | 0-95% | ||
| Dimensions(H*W*D)mm | 1300*620*212mm | 1895*620*212mm | |
| Net Weight(kg) | 120KG | 220KG | |
| Communication method | WIFI/4G | ||
| Grid connection certification | EN50549- 1, EN50549- 10, PTPiREE, NCRFG, VDE4105, AS/NZS4777.2, NRS-097-2- 1 | ||
| All in One ESS series-TG-ESS | |||
| MODEL | TG-HYB-5000 | TG-HYB-6000 | |
| PV INPUT(DC) | |||
| Recommend max.PVi nput power 10000Wp | 11000Wp | ||
| Max.PV input voltage | 600V | ||
| Min.operation/Start-up Voltage | 40V/50V | ||
| Rated PV input voltage | 360V | ||
| MPPT Voltage Range | 40-560V | ||
| No.of independent MPPT inputs | 2 | ||
| Max.PV input current | 16A | ||
| Max.DCs hort-circuit current | 20A | ||
| INPUT/OUTPUT(AC) | |||
| Max.AC input power from grid | 10000VA | 11000VA | |
| Rated AC output power | 5000W | 6000W | |
| Rated AC output current (at 230V) | 21.8A | 26. 1A | |
| Rated AC voltage | 220V/230V/240V | ||
| AC voltage range | 154V~276V | ||
| Rated grid frequency | 50Hz/60Hz | ||
| Grid frequency range | 45~55Hz/55~65Hz | ||
| EFFICIENCY | |||
| Max.efficiency | 97.70% | ||
| European efficiency | 97.30% | ||
| PROTECTION&FUNCTION | Grid monitoring/DC reverse polarity protection/AC short circuit protection/Leakage current protection /DCswitch(PV)/DC fuse(battery)/Battery input reverse polarity protection | ||
| SurgeProtection | DC typeⅡ/AC typeⅡ | ||
| BATTERY DATA | |||
| Battery Type | Li-ion battery | ||
| Battery voltage | 40-59V | ||
| Max.charge/discharge current | 100A | ||
| Max.charge/discharge power | 5000W | ||
| GENERAL DATA | |||
| Dimensions(W*H*D) | 600*365*180mm | ||
| Weight | ≤25kg | ||
| Degree of protection | IP65 | ||
| BACKUP DATA(ONGRIDMODEL) | |||
| Rated | output power for backup load | 6000W | |
| Rated | output current for backup load | 27A | |
| BACKUP DATA(OFF GRID MODEL) | |||
| Rated voltage | 220V/230V/240V(±2%) | ||
| Frequency range | 50Hz/60Hz(±0.5%) | ||
| Switch time to emergency model | ≤10ms | ||
| Rated output power | 5000W/5000VA | 6000W/6000VA | |
| Peak output power | 8400VA, 10s | ||
| Certifications and Standards | |||
| Grid Regulation | EN50549- 1, EN50549- 10, PTPiREE, NCRFG, VDE4105, AS/NZS4777.2, NRS-097-2- 1 | ||
| Safety Regulation | IEC62109- 1&2, EN62109- 1&2 | ||
| EMC | EN61000-6- 1, EN61000-6-3, IEC61000-6- 1, IEC61000-6-3 | ||
Company Advantages
· Sunboost energy storage battery factory is manufactured under the guidance of skilled professionals using optimum grade materials.
· Our energy storage battery factory is not only beautiful but also durable.
· With the increasing popularity worldwide, the product is bound to have a wider commercial application in the future.
Company Features
· Sunboost Technology Co.Ltd seems to be one of the leaders in the energy storage battery factory field.
· To manufacture these energy storage battery factory, our deft professionals use quality-approved raw materials and ultramodern techniques.
· We demonstrate and embody the highest ethical standards. Get quote!
Application of the Product
Sunboost's energy storage battery factory can be used in multiple industries.
While providing excellent products, Sunboost is dedicated to providing personalized solutions for customers according to their needs and actual situations.
