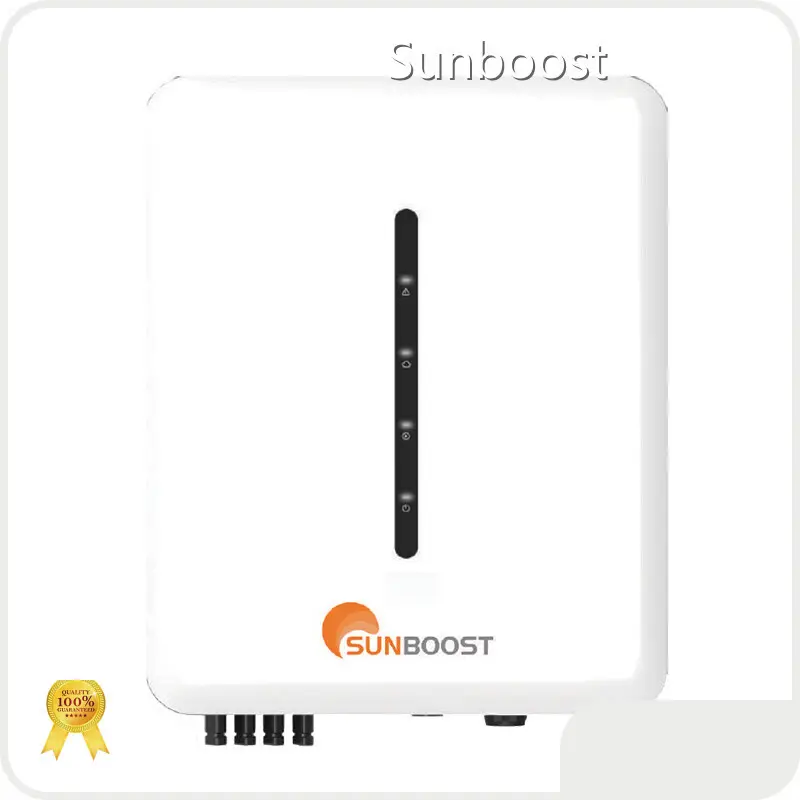

Sunboost New Hybrid Inverters for Sale

Inquiry
Send your inquiry

Company Advantages

· The design of Sunboost hybrid inverters for sale adopts the first-class concept.

· The product has stable performance and high quality, which can be used for a long time.

· Sunboost Technology Co.Ltd's service team always respect every customers.

Products Advantages

10 years Warranty.

Flexible application :150-600V wide battery voltage range.

Max.  PV input current 32A(16A/16A): compatible across All Power Ranges of Solar Panels.

UPS Mode: Seamless transition to backup mode to assure an uninterrupted power supply.

Wide PV input range : 200- 1000 V

High Energy Potential: PV Input Power is much higher than AC Output Power, enabling more solar energy input.

Protection: Anti-islanding Protection, Insula-tion Resistance Detection and Leakage monitoring protection.

储能 12 拷贝

Product Specifications

Three phase Hy brid Solar Inverter-TG-HYB 3P
MODEL TG-HYB-6kW-3P TG-HYB-8kW-3P TG-HYB- 10kW-3P
PV INPUT (DC)
Recommend max.PV input power 9000Wp 12000Wp 15000Wp
Max.PV input voltage   1000V
Start-up input voltage   250V
Rated PV input voltage   600V
MPPT Voltage Range   200-950V
No.of independent MPPT inputs   2
Max. PV input current 32A (16A/16A) 48A (16A/32A)
Max.input short-circuit current 40A (20A/20A) 40A (20A/20A) 60A(20A/40A)
INPUT/ OUTPUT(AC)
Max.AC input power from grid 15000VA 18600VA 20600VA
Rated AC output power 6000W 8000W 10000W
Rated AC output current 9.1A 12.1A 15.2A
Rated AC voltage/ Frequency 3/ N/PE220V/ 380V230V/ 400V240V/ 415V
AC voltage range 270V-480V
Rated grid frequency 50Hz/60Hz
Grid frequency range 45~55Hz/55~65Hz
EFFICIENCY
Max.efficiency 98.20% 98.40%
European efficiency 97.50% 97.90%
PROTECTION& FUNCTION
PROTECTION& FUNCTION Grid monitoring/ DC reverse polarity protection/ AC short circuit protection/ Leakage current protec-tion / DCs witch(PV)/ DC fuse(battery)/ Battery input reverse polarity protection
SurgeProtection DC typeⅡ/AC typeⅡ
BATTERY DATA
Battery voltage 150-600V
Max.charge/ discharge current 30A/30A
Max.charge/ discharge power 9000W/7200W 10600W/10600W 10600W/ 10600W
BACKUP DATA (off-gridmodel)
Rated voltage 3/N/ PE220V/ 380V230V/ 400V240V/ 415V
Frequency range 50Hz/60Hz (±0.5%)
Rated output power 6000W/ 6000VA 8000W/ 8000VA 10000W/ 10000VA
Peak output power 7200VA5min/ 10000VA,10s 9600VA, 5min 12000VA, 5min
GENERAL DATA
Dimensions (W*H*D) 450*550*186mm
Weight 31KG
Degree of protection IP65
Operating ambient temperature range -25℃~60℃
Certifications and Standards
Grid Regulation EN50549- 1, EN50549- 10, PTPiREE, NCRFG, VDE4105, AS/NZS 4777.2, NRS-097-2- 1
Safety Regulation IEC62109- 1&2, EN62109- 1&2
EMC EN61000-6- 1, EN61000-6-3, IEC61000-6- 1, IEC61000-6-3

ON/OFF-Grid Hybrid Inverter-TG-HVB 6-10KW

Download
储能 12-2 拷贝 (2)
储能 12-2 拷贝 (2)
储能 12-3 拷贝 (2)
储能 12-3 拷贝 (2)


Company Features

· Sunboost Technology Co.Ltd seems to be one of the leaders in the hybrid inverters for sale field.

· The scientific research and technological strength of Sunboost Technology Co.Ltd is the highest level of domestic technology. The quality of hybrid inverters for sale is guaranteed with advanced and practical technology. Sunboost Technology Co.Ltd owns the most comprehensive research strength.

· Sunboost Technology Co.Ltd would like to grow up together with our customers and achieve mutual benefit. Inquire online!


Application of the Product

The hybrid inverters for sale produced by our company is suitable for various occasions in industry.

Sunboost is committed to producing quality Home storage battery,Commercial & Industrial storage battery,hybrid solar inverter and providing comprehensive and reasonable solutions for customers.


Product Comparison

Compared with other products in the same category, Sunboost's hybrid inverters for sale has the following advantages.


Enterprise Advantages

Based on the considerate team management idea, our company builds a loyal work team with high efficiency and strict style. It is the solid foundation for our rapid development.

We have built up a sound service system, including pre-sale, in-sale and after-sale services of high quality. Therefore, customers' needs would be satisfied and experience would also be promoted.

Our company always adheres to the strategic orientation of 'people-oriented, efficient, pragmatic and sustainable development'. In the development, we focus on integrity management and technological innovation. To gain mutual benefit, we strengthen the cooperation relationships with partners at home and abroad.

After rapid development for years, Sunboost has developed into a leading enterprise within the industry. We gain good economic and social benefits based on the advanced technology and good service.

Sunboost's Home storage battery,Commercial & Industrial storage battery,hybrid solar inverter are well received by the domestic and international market. And the sales volume is increasing year by year.
