Sunboost Off Grid Hybrid Solar Inverter Off Grid Hybrid Solar Inverterprice

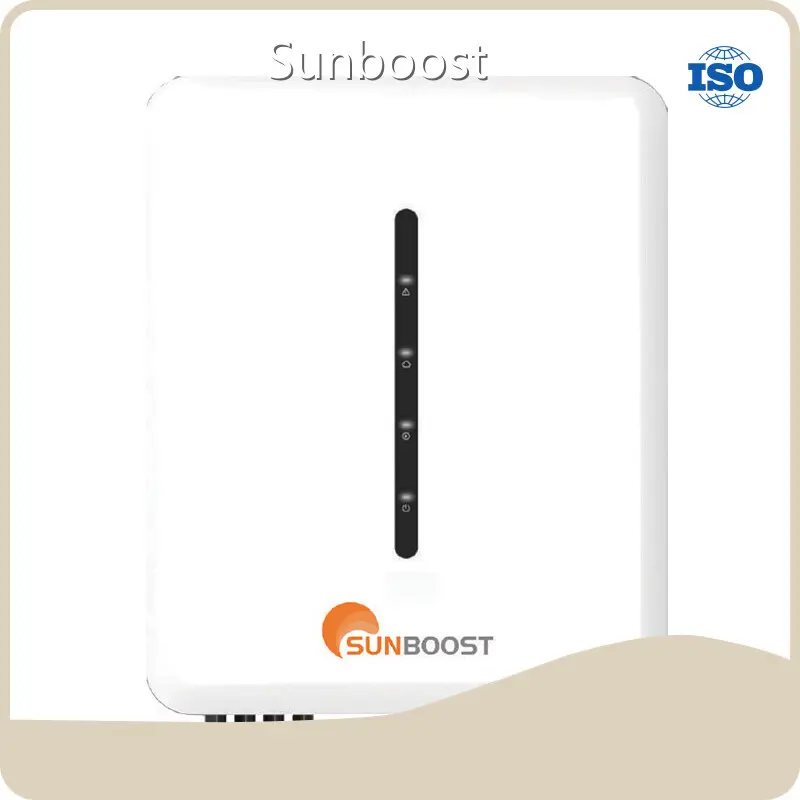

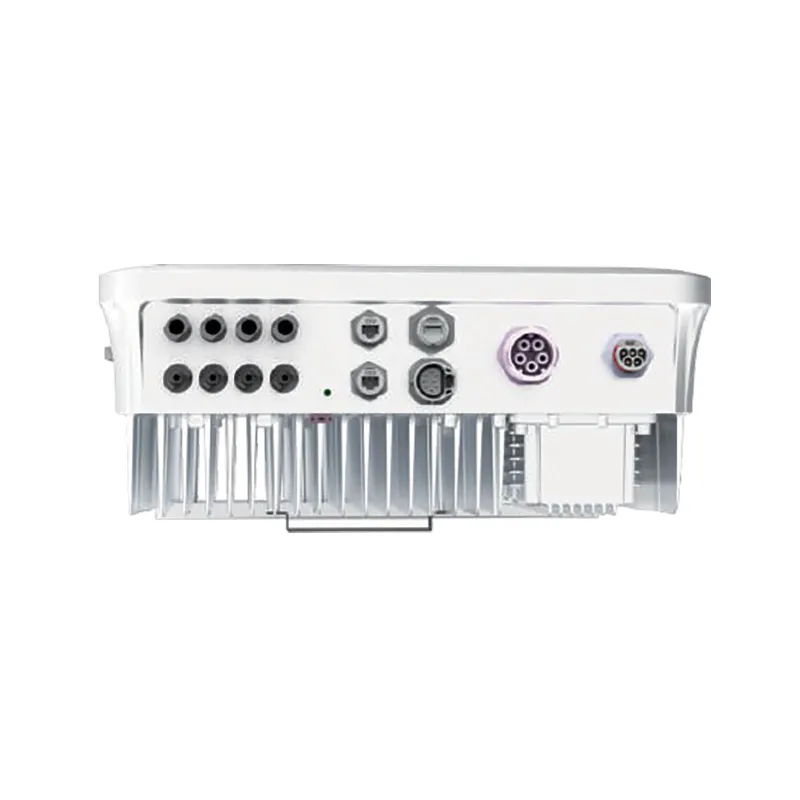

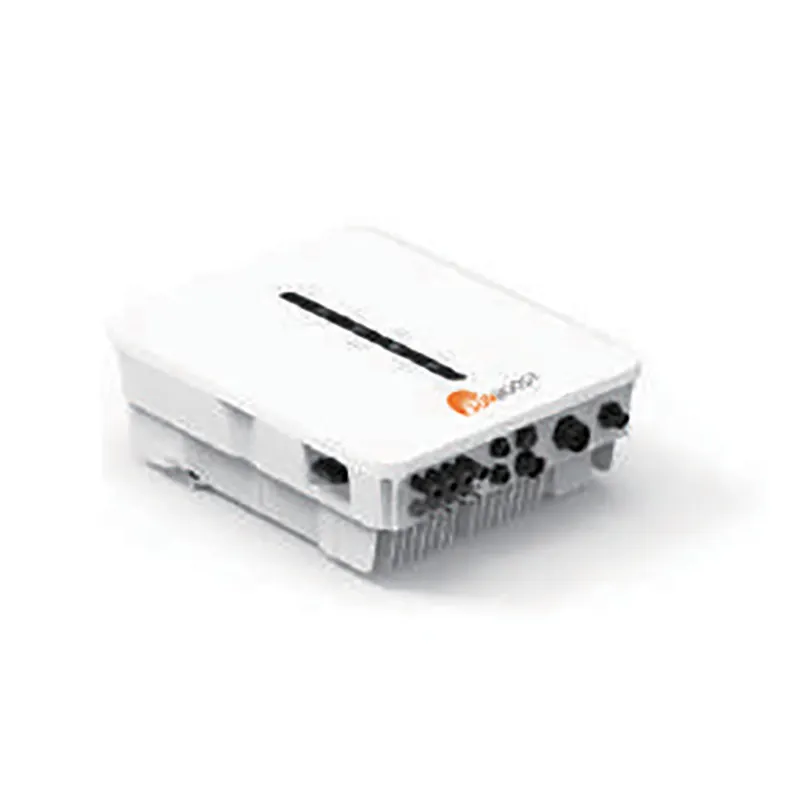

Product details of the off grid hybrid solar inverter
Quick Detail
off grid hybrid solar inverter from Sunboost Technology Co.Ltd is more energy saving and environmental friendly. The product has been tested to exacting quality standards. The competitiveness of the product lies in its tremendous economic benefits.
Product Description
Compared with similar products, the off grid hybrid solar inverter of Sunboost is more strict in the selection of raw materials. The specific aspects are as follows.
Products Advantages
10 years Warranty.
Flexible application :150-600V wide battery voltage range.
Max. PV input current 32A(16A/16A): compatible across All Power Ranges of Solar Panels.
UPS Mode: Seamless transition to backup mode to assure an uninterrupted power supply.
Wide PV input range : 200- 1000 V
High Energy Potential: PV Input Power is much higher than AC Output Power, enabling more solar energy input.
Protection: Anti-islanding Protection, Insula-tion Resistance Detection and Leakage monitoring protection.
Product Specifications
| Three phase Hy brid Solar Inverter-TG-HYB 3P | ||||||
| MODEL | TG-HYB-6kW-3P | TG-HYB-8kW-3P | TG-HYB- 10kW-3P | |||
| PV INPUT (DC) | ||||||
| Recommend max.PV input power | 9000Wp | 12000Wp | 15000Wp | |||
| Max.PV input voltage | 1000V | |||||
| Start-up input voltage | 250V | |||||
| Rated PV input voltage | 600V | |||||
| MPPT Voltage Range | 200-950V | |||||
| No.of independent MPPT inputs | 2 | |||||
| Max. PV input current | 32A (16A/16A) | 48A (16A/32A) | ||||
| Max.input short-circuit current | 40A (20A/20A) | 40A (20A/20A) | 60A(20A/40A) | |||
| INPUT/ OUTPUT(AC) | ||||||
| Max.AC input power from grid | 15000VA | 18600VA | 20600VA | |||
| Rated AC output power | 6000W | 8000W | 10000W | |||
| Rated AC output current | 9.1A | 12.1A | 15.2A | |||
| Rated AC voltage/ Frequency | 3/ N/PE220V/ 380V230V/ 400V240V/ 415V | |||||
| AC voltage range | 270V-480V | |||||
| Rated grid frequency | 50Hz/60Hz | |||||
| Grid frequency range | 45~55Hz/55~65Hz | |||||
| EFFICIENCY | ||||||
| Max.efficiency | 98.20% | 98.40% | ||||
| European efficiency | 97.50% | 97.90% | ||||
| PROTECTION& FUNCTION | ||||||
| PROTECTION& FUNCTION | Grid monitoring/ DC reverse polarity protection/ AC short circuit protection/ Leakage current protec-tion / DCs witch(PV)/ DC fuse(battery)/ Battery input reverse polarity protection | |||||
| SurgeProtection | DC typeⅡ/AC typeⅡ | |||||
| BATTERY DATA | ||||||
| Battery voltage | 150-600V | |||||
| Max.charge/ discharge current | 30A/30A | |||||
| Max.charge/ discharge power | 9000W/7200W | 10600W/10600W | 10600W/ 10600W | |||
| BACKUP DATA (off-gridmodel) | ||||||
| Rated voltage | 3/N/ PE220V/ 380V230V/ 400V240V/ 415V | |||||
| Frequency range | 50Hz/60Hz (±0.5%) | |||||
| Rated output power | 6000W/ 6000VA | 8000W/ 8000VA | 10000W/ 10000VA | |||
| Peak output power | 7200VA5min/ 10000VA,10s | 9600VA, 5min | 12000VA, 5min | |||
| GENERAL DATA | ||||||
| Dimensions (W*H*D) | 450*550*186mm | |||||
| Weight | 31KG | |||||
| Degree of protection | IP65 | |||||
| Operating ambient temperature range | -25℃~60℃ | |||||
| Certifications and Standards | ||||||
| Grid Regulation | EN50549- 1, EN50549- 10, PTPiREE, NCRFG, VDE4105, AS/NZS 4777.2, NRS-097-2- 1 | |||||
| Safety Regulation | IEC62109- 1&2, EN62109- 1&2 | |||||
| EMC | EN61000-6- 1, EN61000-6-3, IEC61000-6- 1, IEC61000-6-3 | |||||
