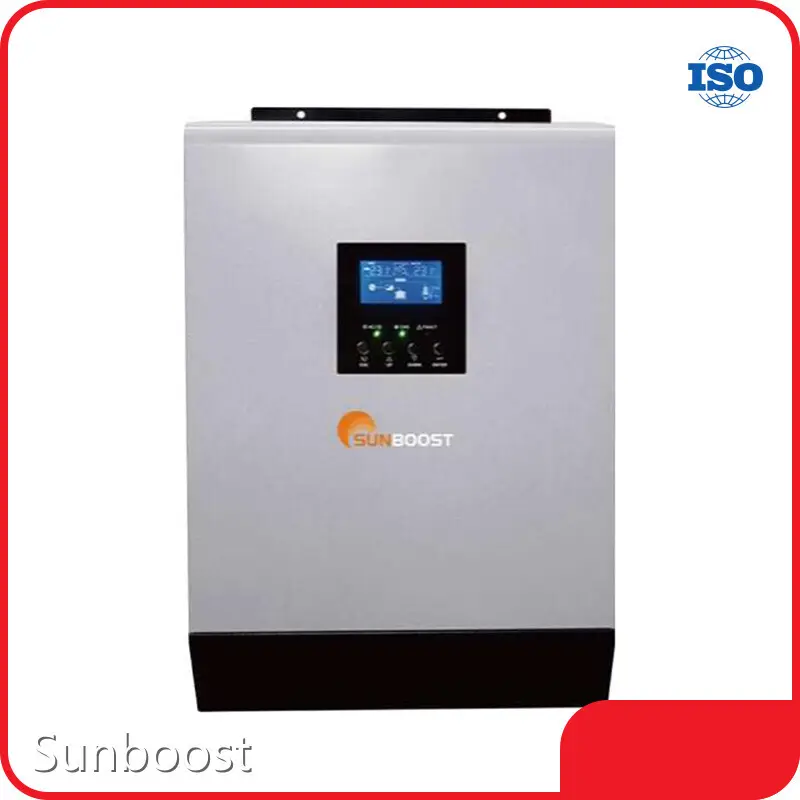

Wholesale Off Grid Mppt Solar Inverter Sunboost Brand
Product details of the off grid mppt solar inverter
Quick Detail
The appealing design of Sunboost off grid mppt solar inverter far exceeds the market average. The product is in high demand among customers in the industry for its great benefits. The off grid mppt solar inverter of Sunboost can meet the different needs of different customers. Over the years, Sunboost Technology Co.Ltd has made great progress in productivity growth.
Product Description
We are confident about the exquisite details of off grid mppt solar inverter.
Products Advantages
- Off grid inverter, support the utility and photovoltaic solar two lines of input
- DPS digital control technology, the double transfor mation online design, USES the input PFC technology, the input power of 0.99, and high efficiency inverter topology, the output is more efficient
- Battery equalization function optimization of battery performance, extend battery life
- Mains/pv/battery/multimode optimal output
- Built-in dust-proof net suite, suitable for bad environment
- Based on MPPT solar charger design
- Biggest support 9 parallel machines
- Support battery cold start
Product Specifications
| MODEL | MKSII 5K | |
| Rated power | 5000VA | |
| Ac input | ||
| Voltage | 230VAC | |
| Voltage range | 170-280Vac(applicable to personal computer）90-280Vac（applicable to household appliances） | |
| Frequency range | 50/60HZ | |
| PV input | ||
| Maximum photovoltaic array power | 4500W | |
| The largest photovoltaic array open-circuit voltage | 450Vdc | |
| Scope of MPPT @ working voltage | 120Vdc-430Vdc | |
| The rated voltage | 360V | |
| Number of MPPT | 1 | |
| Output Paramenters | ||
| Voltage | 230V±5% | |
| Frequency | 50HZ | |
| Efficiency | 90% | |
| Maximum output power | 5000W | |
| Conversion time | 10ms（UPS），20ms（Household appliance） | |
| harmonic | ≤3% | |
| Overload capacity | 5s@≥150%load;10s@110%-150%load | |
| The utility model | ||
| Voltage | 230Vac±5% | |
| Frequency | 50Hz | |
| Efficiency | 95% | |
| Battery | ||
| The battery voltage | 48V | |
| Charging way | A three-stage charging | |
| Maximum charging current | 80A | |
| cold start voltage | 46V | |
| Weaver function | The biggest support 9 weaver | |
| The battery type | Lead-acid, lithium Battery | |
| Protection function | Output short circuit overload over temperature protection, and other functions | |
| Communication port | RS232,USB，Dry contact | |
| The work environment | ||
| Working temperature | -10℃ to 50℃ | |
| Storage temperature | -15℃ to 60℃ | |
| Relative humidity | 5%-95% | |
| Physical | ||
| Size (D/W/H) | 480x310x125mm | |
| Net weight (KG) | 11 | |
