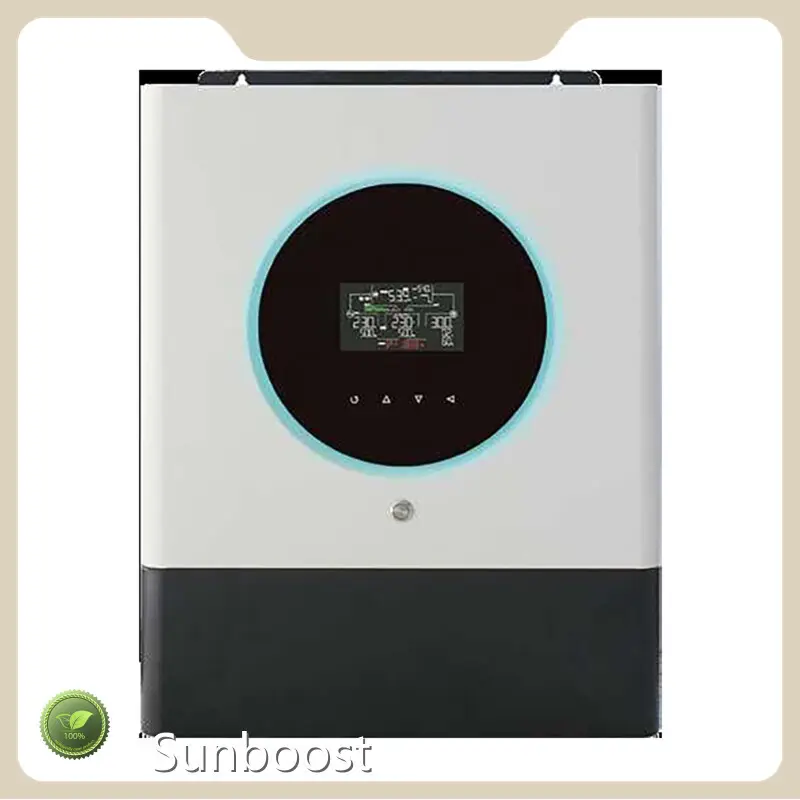

Beston Off Grid Solar Inverter
Product details of the on off grid solar inverter
Quick Detail
With the assistance of our professionals, Sunboost on off grid solar inverter is delicately crafted with an aesthetically-appealing look. The product has been approved by all required international certificates. The product is comprehensively suitable for applying in the industry.
Product Introduction
Sunboost's on off grid solar inverter has the following advantages over products in the same category.
Products Advantages
- Off-grid inverter, supporting PV, mains, and battery access
- Battery independent design maximum photovoltaic input current up to 27A
- MPPT input voltage range 90~450V
- RGB color bar status display
- Built-in Wi-Fi monitoring module (Androld/iOS App)
- BMS communication interface (RS485, CAN, RS232)
- Fan replacement is simple and fast
- The output power supply priority and time range can be configured
- Compatible with mains or generators, with a maximum of 6 units
- Battery independent design
Product Specifications
| MODEL | SC-MAX 8KW II | SC-MAX 11KW II |
| Rated power | 8000VA/8000W | 11000VA/11000W |
| Number of parallel machines | Up to 6 units | Up to 6 units |
| Ac input | ||
| Rated voltage | 230VAC | 230VAC |
| Voltage range | 170-280Vac(applicable to personal computer）90-280Vac（applicable to household appliances） | 170-280Vac(applicable to personal computer）90-280Vac（applicable to household appliances） |
| Exportation | ||
| Output voltage range | 230VAC±5% | 230VAC±5% |
| Surge power | 16000VA | 22000VA |
| Efficiency | 93.00% | 93% |
| Conversion time | 10ms（computer） 20ms（household appliances） | 10ms（computer）20ms（household appliances） |
| Wave form | Pure sine wave | Pure sine wave |
| Battery | ||
| Battery voltage | 48V | 48V |
| Floating charge voltage | 54V | 54V |
| Overcharge protection | 66VDC | 63VDC |
| Photovoltaic charging & AC charging | ||
| Photovoltaic charging type | MPPT | MPPT |
| Maximum photovoltaic array power | 8000W（4000W*2) | 11000W(5500W*2) |
| MPPT operating voltage range | 90~450VDC | 90~450VDC |
| Maximum open circuit voltage ofphotovoltaic array | 500VDC | 500VDC |
| Rated voltage | 240V | 360V |
| Maximum photovoltaic input current | 18A*2(Max36A) | 18A*2(Max36A) |
| Maximum photovoltaic chargingcurrent | 120A | 150A |
| Maximum AC charging current | 120A | 150A |
| Maximum charging current | 120A | 150A |
| Physics | ||
| size（D/W/H） | 600 x 425 x 150mm | 600 x 425 x 150mm |
| Net weight(KG) | 20 | 21 |
| Communication interface | USB/RS232/RS485/WiFi/Dry contact | USB/RS232/RS485/WiFi/Dry contact |
| Working environment | ||
| humidness | 5% to 95% Relative humidity (no condensation) | 5% to 95% Relative humidity (no condensation) |
| Operating temperature | -10℃ to 50℃ | -10℃ to 50℃ |
| Storage temperature | -15℃ to 60℃ | -15℃ to 60℃ |
| Standard | ||
| Safety regulation | CE | CE |
