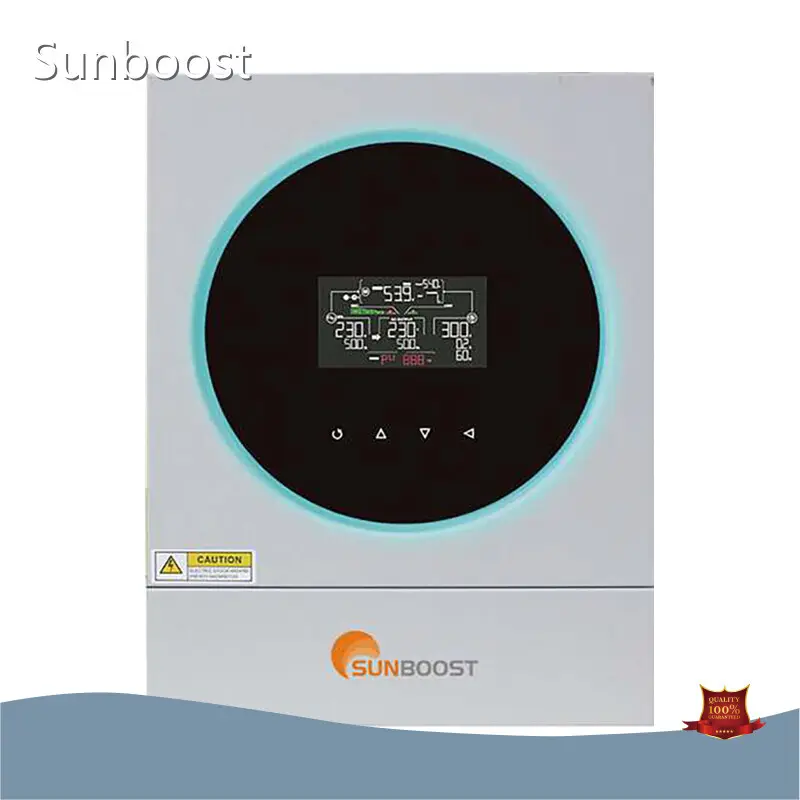

Off Grid Mppt Solar Inverter Sunboost 1
Off Grid Mppt Solar Inverter Sunboost 1

Off Grid Mppt Solar Inverter Sunboost

Inquiry

Product details of the off grid mppt solar inverter


Product Introduction

The production process of Sunboost off grid mppt solar inverter is strictly controlled utilizing high precision machine. We conduct rigorous tests to ensure that our products are defect-free and meet high quality standards. The product is well recognized and known in the industry and tends to be used more widely in the global market.

Product characteristics

- Off grid inverter, dustproof kit design

- Maximum photovoltaic input current 27A

- Dual output, intelligent load management

- MPPT input voltage range 60~450V

- 4.3 inch touch screen, RGB color bar status display

- Built-in Wi-Fi monitoring module (Android/iOS App)

- Off-grid inverter, support photovoltaic, mains, battery access

- BMS communication interface(RS485,CAN,RS232)

- Intelligent charger design, balance function to extend battery life

Sunboost Solar inverter 9-3 拷贝

Product Specifications

SPECIFICATION



MODEL

VMIV 4KW

VMIV     6KW

Rated power

3500VA

5500VA

Ac   input





Voltage

230VAC

230VAC

Voltage range

170-280Vac(applicable to personal computer)90-280Vac(applicable to household appliances)

170-280Vac(applicable to personal computer)90-280Vac(applicable to household appliances)

The    output





The output voltage range

230VAC±5%

230VAC±5%

Power surge

8000VA

12000VA

Ffhciency

93%

93%

Conversion time

10ms(computer)

10ms(computer)



20ms(Household appliance)

20ms(Household appliance)

wave form

Pure sine wave

Pure sine wave

battery





The battery voltage

24V

48V

Float charging pressure

27V

54V

The overcharge protection

33VDC

63VDC

Pv charging &communication



Pv charging &communication

MPPT

MPPT

Maximum photovoltaic array power              5000W

6000W

MPPT working voltage range

60~450VDC

60~450VDC







Open circuit voltage,the largest





photovoltaic array

500VDC

500VDC

The rated voltage

320V

360V

The largest pv input current

27A

27A

The largest pv charging currentMaximum  charging  current

120A

120A

communication

120A

120A

Maximum charging current

120A

120A

physical

Size(D/W/H)

470x305x125mm

470x305x125mm

Net weight (KG)

9

10

Communication interface

USB/RS232/RS485/WiFi/Dry contact

USB/RS232/RS485/WiFi/Dry contact

Working environment





Relative humidity

5%to 95%Relative humidity(no condensation)

5%to 95%Relative humidity(no condensation)

Working temperature

-10℃ to 50℃

-10℃ to 50℃

Storage temperature

-15°C to 60°C

-15°C to 60°C

Standard





Safety regulation

CE

CE

VMIV 4KW/6KW Series

Download
Sunboost Solar inverter 9-2 拷贝
Sunboost Solar inverter 9-2 拷贝
