Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.

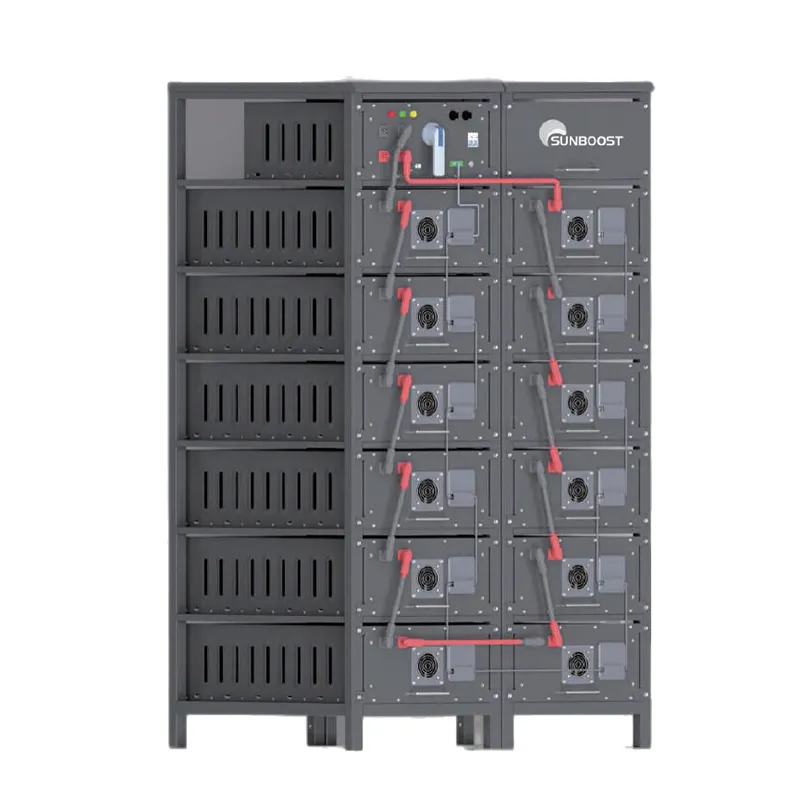

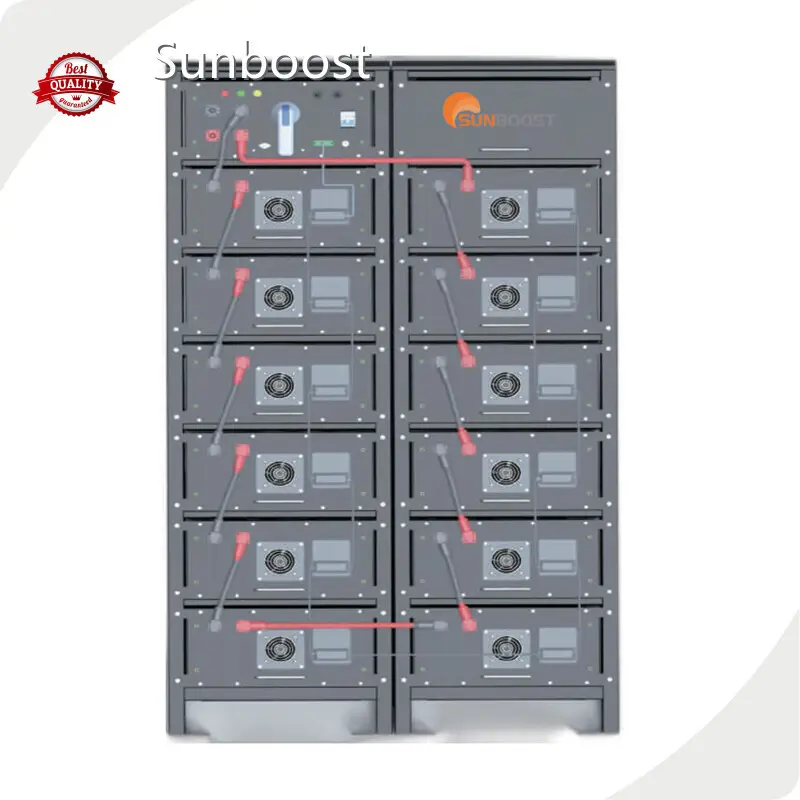

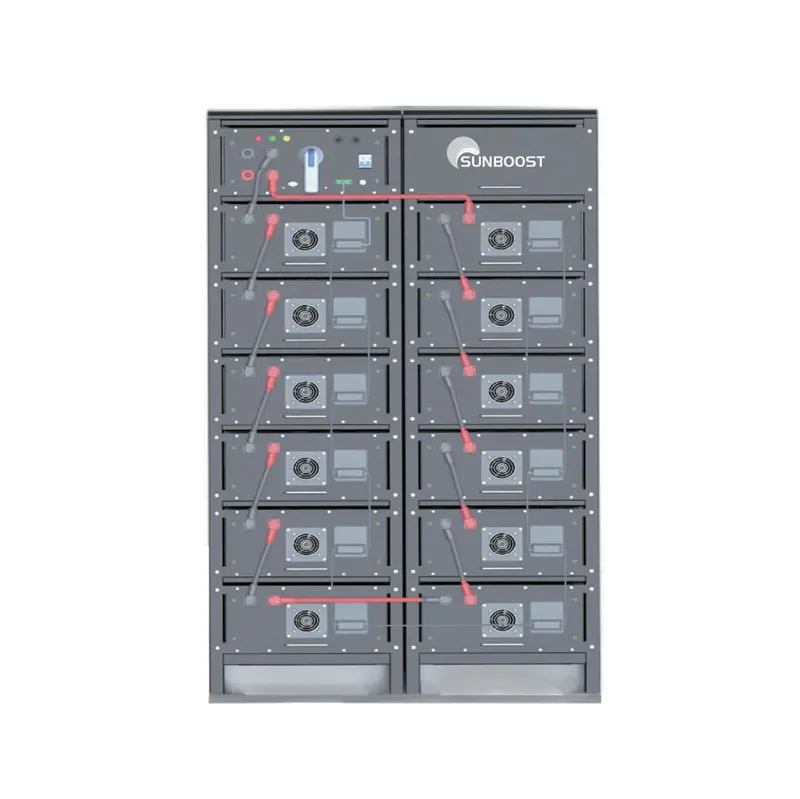

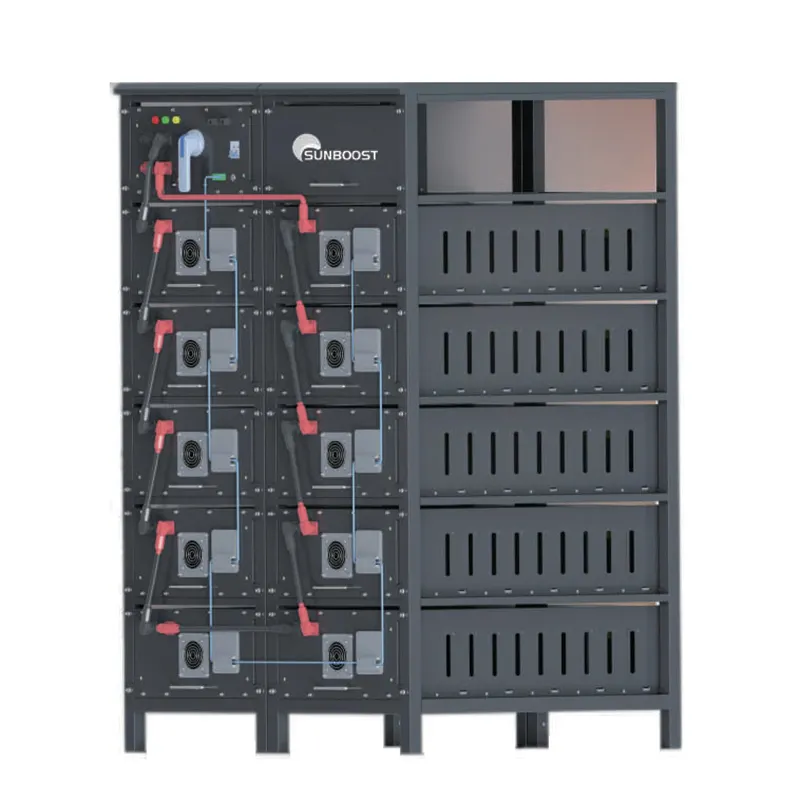

Product details of the best server rack battery
Quick Detail
Sunboost best server rack battery is designed by the experienced staff who has many years of experiences in designing. The product is featured by strong durability and long-lasting performance. best server rack battery of Sunboost has very extensive application in different scenarios. Detailed operation procedure for best server rack battery will be provided in the form of video.
Product Introduction
Adhering to the concept of 'details and quality make achievement', we will work harder on the following details of best server rack battery to make our products more advantageous.
Product Specifications
107.52KWH-215KWH Battery Pack | |||||
Model TH-384/280R/HV TH-448/280R/HV TH-512/280R/HV TH-576/280R/HV | |||||
Nominal Voltage | 384V | 448V | 512V | 576V | |
Cell model/Configuration | 3.2V280Ah(EVE)/120SlP | 3.2V280Ah(EVE)/140SlP 3.2V280Ah(EVE)/160SlP | 3.2V280Ah(EVE)/180SlP | ||
Capacity(Ah) | 280AH | 280AH | 280AH | 280AH | |
Rated Energy(KWH) | 107.52KWH | 125.44KWH 143.36KWH | 161.28KWH | ||
Weight(Approx)(KG) | 820kg | 960kg | 1080kg | 1200kg | |
Dimension(W/D/H)(mm) | 1992*950*550mm | 2250*950*550mm 1475*950*1100mm | 1475*950*1100mm | ||
Voltage Range(Vdc) | 324-420V | 378-490V | 432-560V | 486-630V | |
Max.Charge/DischargeCurrent(A) | 140A/140A | ||||
Scalability | Upto15parallel | ||||
Communieation | RS485(B)-BATRS485(A)-PC, Canbus-lnverter | ||||
Cycle Life | ≥6000cycles@25°C, 80%DOD, 60%EOL | ||||
Design Life | ≥15Years(25°C) | ||||
Protection | BMS, Breaker | ||||
OperatingTemperature(°C) | Charge:0°C~50°C;Discharge:-20°C~50°C | ||||
Altitude(m) | ≤2000 | ||||
Humidity | ≤95%(Non-condensing) | ||||
107.52KWH-215KWH Battery Pack | |||||
Model TH-640/280R/HV TH-704/280R/HV TH-768/280R/HV | |||||
Nominal Voltage | 640V | 704V | 768V | ||
Cell model/Configuration | 3.2V280Ah(EVE)/200SlP | 3.2V280Ah(EVE)/220SlP | 3.2V280Ah(EVE)/220SlP | ||
Capacity(Ah) | 280AH | 280AH | 280AH | ||
Rated Energy(KWH) | 179.2KWH | 197.12KWH | 215.04KWH | ||
Weight(Approx)(KG) | 1350kg | 1500kg | 1650kg | ||
Dimension(W/D/H)(mm) | 1732*950*1100mm | 1732*950*1100mm | 1992*950*1100mm | ||
Voltage Range(Vdc) | 540-700V | 594-770V | 648-840V | ||
Max.Charge/DischargeCurrent(A) | 140A/140A | ||||
Scalability | Upto15parallel | ||||
Communieation | RS485(B)-BATRS485(A)-PC, Canbus-lnverter | ||||
Cycle Life | ≥6000cycles@25°C, 80%DOD, 60%EOL | ||||
Design Life | ≥15Years(25°C) | ||||
Protection | BMS, Breaker | ||||
OperatingTemperature(°C) | Charge:0°C~50°C;Discharge:-20°C~50°C | ||||
Altitude(m) | ≤2000 | ||||
Humidity | ≤95%(Non-condensing) |
Company Introduction
Established years ago, Sunboost Technology Co.Ltd is specialized in manufacturing high-quality products such as best server rack battery. We are highly appraised by a broad range of customers. Sunboost Technology Co.Ltd has strong manufacturing capabilities for best server rack battery. Sunboost has successfully built itself into a brand that represents "High Quality" in both products and services.
We are committed to providing customers with quality products. We sincerely welcome customers with needs to contact us, and look forward to establishing a long-term friendly relation with you!
