1Mw 1 Mwh Lithium Ion Batteries Battery Solar Power 20FT 40FT Container Energy Storage System
Safe and reliable
Friendly and flexible
Intelligent and efficient
Abundant configuration
-- ESSC1000A-MV35
-- ESSC1260A-MV35
-- ESSC2000A-MV35
-- ESSC2500A-MV35

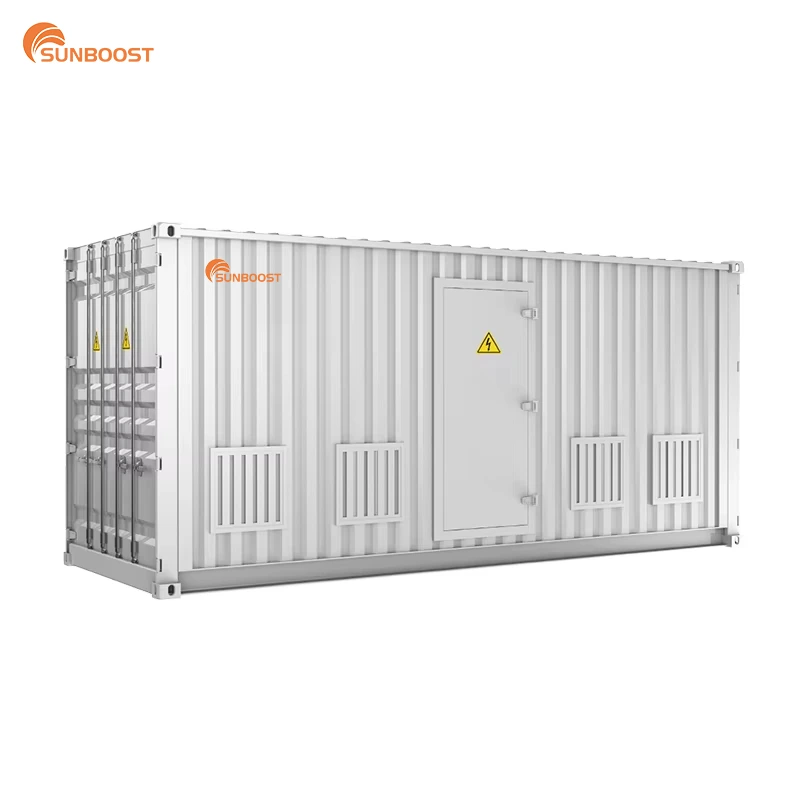

Container Type Energy Storage Booster
Product Description
Sunboost's container type energy storage booster is the core component of peak and frequency regulation of large-scale energy storage power stations.
lt supports multiple sets of battery input and comprehensively improves battery cycle life.
In addition, the system integrates various booster systems, and supports turnkey service.
Product Specifications
| Model | ESSC1000A-MV35 | ESSC1260A-MV35 | ESSC2000A-MV35 | ESSC2500A-MV35 |
| DC(battery) | ||||
| Battery voltage range(V) | 500-900 | |||
| AC(on-grid) | ||||
| Max.apparent power(kVA) | 1100 | 1386 | 2200 | 2750 |
| Rated output power(KW) | 1000 | 1260 | 2000 | 2500 |
| Rated voltage(KV) | 35 | |||
| Voltage range(KV) | 38.5±2X2.5% (6、10、22) optional | |||
| Rated current(A) | 16.5 | 20.8 | 33 | 41.2 |
| Max.output current(A) | 18.1 | 22.9 | 36.3 | 45.4 |
| Rated frequency(Hz) | 50/60 | |||
| Frequency range(Hz) | 45-55/55-65 | |||
| THDi | <3% | |||
| Power factor | 1lagging-1leading (Settable) | |||
| AC connection | 3W+PE | |||
| General data | ||||
| Max.efficiency | 98.00% | |||
| Ingress protection | IP54 | |||
| Noise emission(dB) | <75 | |||
| Operating temperature(℃) | -30~55 | |||
| Cooling | Temperature controlled forced air cooling | |||
| Relative humidity | 0~95% non-condensing | |||
| Operating altitude | 5000m(>3000 Derating) | |||
| Dimension W*D*H(mm) | 4300*2438*2591 | 4300*2438*2591 | 6058*2438*2591 | 4300*2438*2591 |
| Weight(kg) | 4500 | 4500 | 8000 | 8000 |
| Transformer | No | |||
| Self-consumption(W) | <20 | <20 | <40 | <40 |
| Booster transformer | Manual (default)/Automatic (optional) | |||
| Display and communication | ||||
| Display | LCD touch-screen | |||
| BMS communication | RS485/CAN | |||
| EMS communication | RS485, TCP/IP | |||
WHY CHOOSE US?
Product Characteristics
Safe and Reliable
> Support multiple battery input to improve battery cycle life.
> High switching frequency design, low current ripple and high power quality.
Friendly and Flexible
> System can be expanded to MW level by parallel.
WHY CHOOSE US?
Product Characteristics
Intelligent and Efficient
> Built-in EMS function to improve energy efficiency management.
> Latest lGBT module, high efficiency conversion.
Abundant Configuration
>Integrated multiple boost systems.
>Integrated ventilation system.
Product Details
Product Application
