Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.
Best Solar Inverter Manufacturers Manufacturers

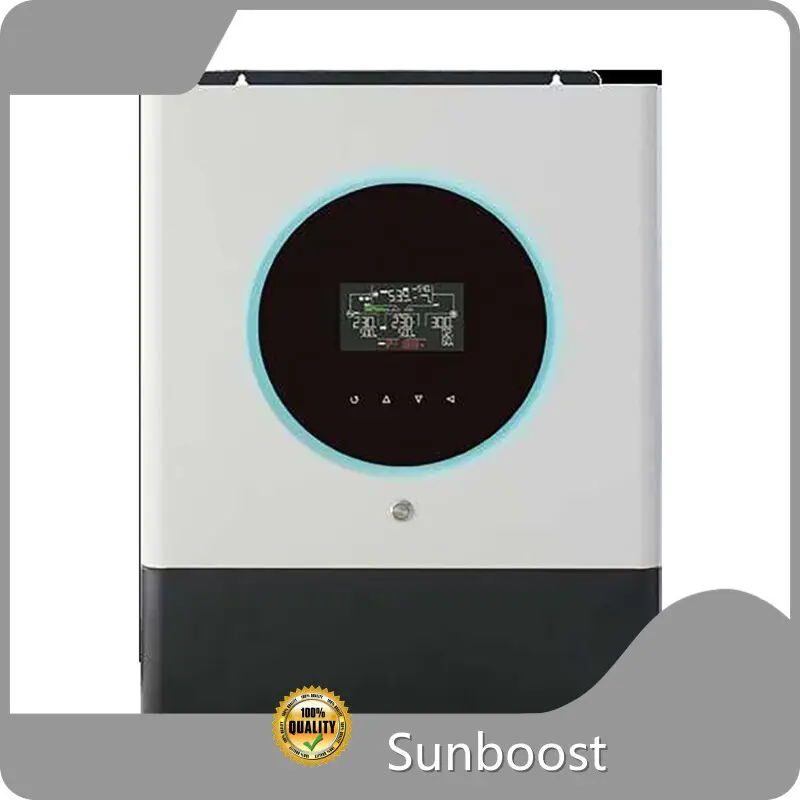

Product details of the best solar inverter manufacturers
Quick Overview
Sunboost best solar inverter manufacturers is designed using the optimum quality raw material as per industry guidelines. best solar inverter manufacturers best solar inverter manufacturers is dimensionally accurate thanks to the adoption of lean production method. Sunboost Technology Co.Ltd has excellent customer service and sales support throughout the process.
Product Introduction
Our best solar inverter manufacturers has better quality performance by virtue of the following excellent details.
Products Advantages
- Off-grid inverter, supporting PV, mains, and battery access
- Battery independent design maximum photovoltaic input current up to 27A
- MPPT input voltage range 90~450V
- RGB color bar status display
- Built-in Wi-Fi monitoring module (Androld/iOS App)
- BMS communication interface (RS485, CAN, RS232)
- Fan replacement is simple and fast
- The output power supply priority and time range can be configured
- Compatible with mains or generators, with a maximum of 6 units
- Battery independent design
Product Specifications
| MODEL | SC-MAX 8KW II | SC-MAX 11KW II |
| Rated power | 8000VA/8000W | 11000VA/11000W |
| Number of parallel machines | Up to 6 units | Up to 6 units |
| Ac input | ||
| Rated voltage | 230VAC | 230VAC |
| Voltage range | 170-280Vac(applicable to personal computer）90-280Vac（applicable to household appliances） | 170-280Vac(applicable to personal computer）90-280Vac（applicable to household appliances） |
| Exportation | ||
| Output voltage range | 230VAC±5% | 230VAC±5% |
| Surge power | 16000VA | 22000VA |
| Efficiency | 93.00% | 93% |
| Conversion time | 10ms（computer） 20ms（household appliances） | 10ms（computer）20ms（household appliances） |
| Wave form | Pure sine wave | Pure sine wave |
| Battery | ||
| Battery voltage | 48V | 48V |
| Floating charge voltage | 54V | 54V |
| Overcharge protection | 66VDC | 63VDC |
| Photovoltaic charging & AC charging | ||
| Photovoltaic charging type | MPPT | MPPT |
| Maximum photovoltaic array power | 8000W（4000W*2) | 11000W(5500W*2) |
| MPPT operating voltage range | 90~450VDC | 90~450VDC |
| Maximum open circuit voltage ofphotovoltaic array | 500VDC | 500VDC |
| Rated voltage | 240V | 360V |
| Maximum photovoltaic input current | 18A*2(Max36A) | 18A*2(Max36A) |
| Maximum photovoltaic chargingcurrent | 120A | 150A |
| Maximum AC charging current | 120A | 150A |
| Maximum charging current | 120A | 150A |
| Physics | ||
| size（D/W/H） | 600 x 425 x 150mm | 600 x 425 x 150mm |
| Net weight(KG) | 20 | 21 |
| Communication interface | USB/RS232/RS485/WiFi/Dry contact | USB/RS232/RS485/WiFi/Dry contact |
| Working environment | ||
| humidness | 5% to 95% Relative humidity (no condensation) | 5% to 95% Relative humidity (no condensation) |
| Operating temperature | -10℃ to 50℃ | -10℃ to 50℃ |
| Storage temperature | -15℃ to 60℃ | -15℃ to 60℃ |
| Standard | ||
| Safety regulation | CE | CE |
Company Information
Sunboost Technology Co.Ltd, situated in shen zhen, is a company. We are mainly devoted to the business of Home storage battery,Commercial & Industrial storage battery,hybrid solar inverter. In the following days, our company continues to hold the core value of 'dare to challenge, make self-breakthrough, manage with integrity, and cooperate for win-win'. Besides, we manage our business according to the tenet of 'competing properly, creating infinitely'. With a focus on customers and market demand, our company strives to become an industry expert around customers. Sunboost established an excellent team by gathering numerous experienced personnel. We always focus on meeting customers' needs and we are dedicated to providing customers with comprehensive and excellent solutions.
You are always welcomed for inquiry.
