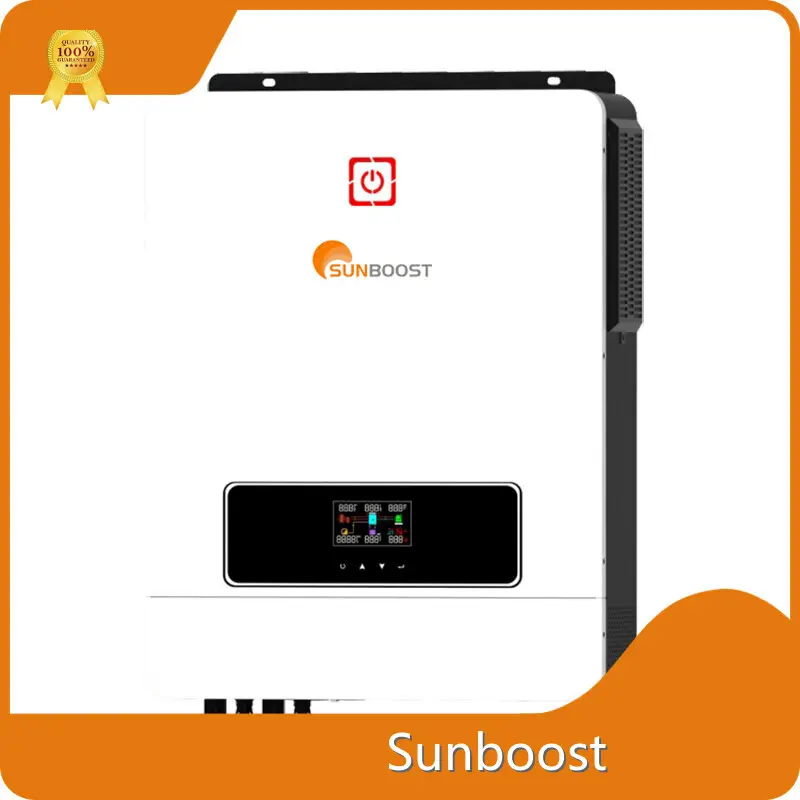

Product details of the hybrid inverter manufacturer
Product Overview
The production of Sunboost hybrid inverter manufacturer follows an extremely strict process during the design phase. The professional technical team conducts a comprehensive quality control for this product in the production. Sunboost Technology Co.Ltd has grown a stronger global network.
Product Information
The hybrid inverter manufacturer of Sunboost has the following advantages compared with hybrid inverter manufacturer in the market.
Products Features
● Pure sine wave solar inverter(on/of grid)
● Inverter running without battery
● Output power factor 1.0
● High PV input voltage range (90~500VDC)
● WIFI&GPRS available for IOS and Android
● Built-in anti-dusk kit for harsh enviroment
● Built-in 160A (for 7.2KW/8.2KW) /180A (for 10.2KW) MPPT solar charge
● Smart battery charge design to optimize battery life
● One-click restoration to factory settings
● Dual output
● Built-in lithium battery automatic activation
● Touch buttom
Product Specifications
| MODEL | MPS-V MAX 7.2KW | MPS-V MAX 8.2KW | MPS-V MAX 10.2KW | ||||
| Phase | 1-phase | ||||||
| Maximum PW Input Power | 8200W | 8200W | 10200W | ||||
| Rated Output Powe | 7200W/7200VA | 8200W/8200VA | 10200W/10200V⁴ | ||||
| Maximum Solar Charging Current | 140A | 160A | 160A | ||||
| GRID-TIE OPERATION | |||||||
| PV Input(DC) | |||||||
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||||||
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||||||
| MPPT Voltage Range | 90VDC~450VDC | ||||||
| Number Of MPPT Trachers/Maximum Input Current | 1/27A | ||||||
| GRID OUTPUT(AC) | |||||||
| Nominal Output Voltage | 200/230/240VAC | ||||||
| Output Voltage Range | 195.5~253VAC | ||||||
| Nominal Output Current | 31.3A | 35.6A | 44.3A | ||||
| Power Factor | >0.99 | ||||||
| Feed-in Grid Frequency Range | 49w51±1Hz | ||||||
| EFFICIENCY | |||||||
| Maximum Conversian Efficiency(DC/AC) | 98% | ||||||
| TWO LOAD OUTPUT POWER(V2.0) | |||||||
| Full Load | 7200W | 8200W | 0200W | ||||
| Maximum Main Load | 7200W | 8200W | 0200W | ||||
| Maximum Second Load(Battery mode) | 2400W | 2733W | 3400W | ||||
| Main Load Cut Off Voltage | 44VDC | 44VDC | 44VDC | ||||
| Main Load Retun Voltage | 52VDC | 52VDC | 52VDC | ||||
| OFF-GRID OPERATION | |||||||
| AC INPUT | |||||||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||||||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||||||
| Maximum AC Input Current | 40A | 40A | 50A | ||||
| Nominal Operating Frequency | 50/60Hz | ||||||
| Surge Power | 14400W | 16400W | 20400W | ||||
| PVINPUT(DC) | |||||||
| Maxmum DC Voltag | 500VDC | ||||||
| MPPT Voltage Range | 90VDCN450VDC | ||||||
| Number of MPPT Trackers/Maximum Input Current | 1/27A | ||||||
| BATTERY MODE OUTPUT(AC) | |||||||
| Nominal Output Voltage | 48VDC | 48VDC | 48VDC | ||||
| Output Wavefrom | Pure sinewave | ||||||
| Efficiency(DC to AC) | 94% | ||||||
| BATTERY &CHARGER | |||||||
| Nominal DC Voltage | 48VDC | 48VDC | 48VDC | ||||
| Maximum Solar Charging Current | 140A | 160A | 160A | ||||
| Maximum AC Charging Current | 120A | 140A | 140A | ||||
| PHYSICAL | |||||||
| Dimension, Dx Wx H | 420*310*110 | ||||||
| Net Weight(kgs | 13.1 | 14.2 | 14.5 | ||||
