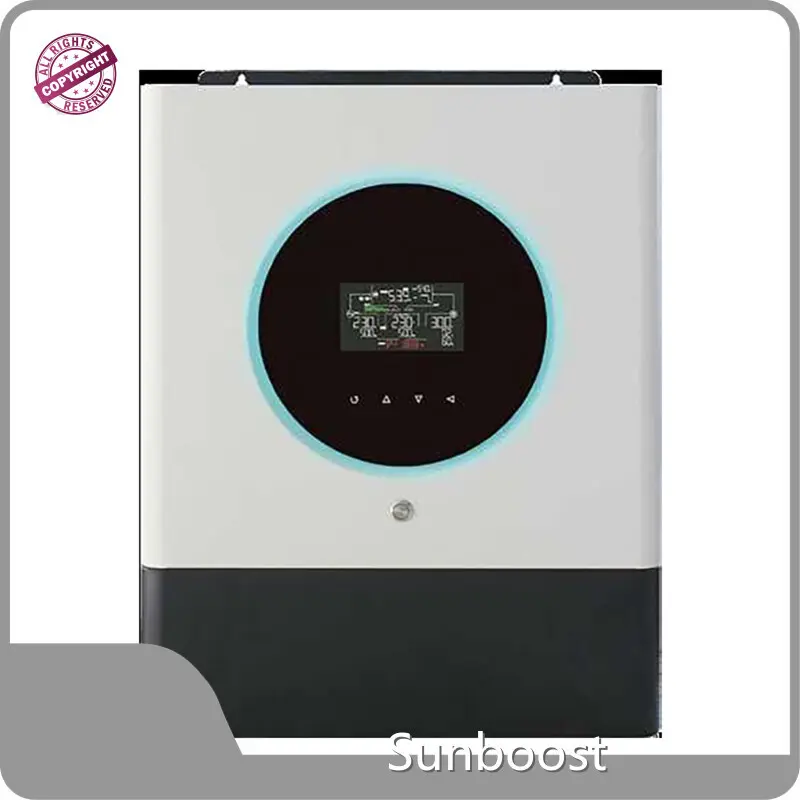

Solar Inverter Suppliers for Sale
Product details of the solar inverter suppliers
Product Overview
Sunboost solar inverter suppliers is delicately designed and manufactured to meet international standards. solar inverter suppliers has stable quality and superior performance. The solar inverter suppliers developed and produced by our company can be widely used in various industries and professional fields. Sunboost has established long-term and stable cooperation with many competitive brands.
Product Introduction
Our company pursues superior quality. In the production process, we are dedicated to creating perfection in every detail.
Products Advantages
- Off-grid inverter, supporting PV, mains, and battery access
- Battery independent design maximum photovoltaic input current up to 27A
- MPPT input voltage range 90~450V
- RGB color bar status display
- Built-in Wi-Fi monitoring module (Androld/iOS App)
- BMS communication interface (RS485, CAN, RS232)
- Fan replacement is simple and fast
- The output power supply priority and time range can be configured
- Compatible with mains or generators, with a maximum of 6 units
- Battery independent design
Product Specifications
| MODEL | SC-MAX 8KW II | SC-MAX 11KW II |
| Rated power | 8000VA/8000W | 11000VA/11000W |
| Number of parallel machines | Up to 6 units | Up to 6 units |
| Ac input | ||
| Rated voltage | 230VAC | 230VAC |
| Voltage range | 170-280Vac(applicable to personal computer）90-280Vac（applicable to household appliances） | 170-280Vac(applicable to personal computer）90-280Vac（applicable to household appliances） |
| Exportation | ||
| Output voltage range | 230VAC±5% | 230VAC±5% |
| Surge power | 16000VA | 22000VA |
| Efficiency | 93.00% | 93% |
| Conversion time | 10ms（computer） 20ms（household appliances） | 10ms（computer）20ms（household appliances） |
| Wave form | Pure sine wave | Pure sine wave |
| Battery | ||
| Battery voltage | 48V | 48V |
| Floating charge voltage | 54V | 54V |
| Overcharge protection | 66VDC | 63VDC |
| Photovoltaic charging & AC charging | ||
| Photovoltaic charging type | MPPT | MPPT |
| Maximum photovoltaic array power | 8000W（4000W*2) | 11000W(5500W*2) |
| MPPT operating voltage range | 90~450VDC | 90~450VDC |
| Maximum open circuit voltage ofphotovoltaic array | 500VDC | 500VDC |
| Rated voltage | 240V | 360V |
| Maximum photovoltaic input current | 18A*2(Max36A) | 18A*2(Max36A) |
| Maximum photovoltaic chargingcurrent | 120A | 150A |
| Maximum AC charging current | 120A | 150A |
| Maximum charging current | 120A | 150A |
| Physics | ||
| size（D/W/H） | 600 x 425 x 150mm | 600 x 425 x 150mm |
| Net weight(KG) | 20 | 21 |
| Communication interface | USB/RS232/RS485/WiFi/Dry contact | USB/RS232/RS485/WiFi/Dry contact |
| Working environment | ||
| humidness | 5% to 95% Relative humidity (no condensation) | 5% to 95% Relative humidity (no condensation) |
| Operating temperature | -10℃ to 50℃ | -10℃ to 50℃ |
| Storage temperature | -15℃ to 60℃ | -15℃ to 60℃ |
| Standard | ||
| Safety regulation | CE | CE |
