Sunboost is a high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage battery and solar power inverter.

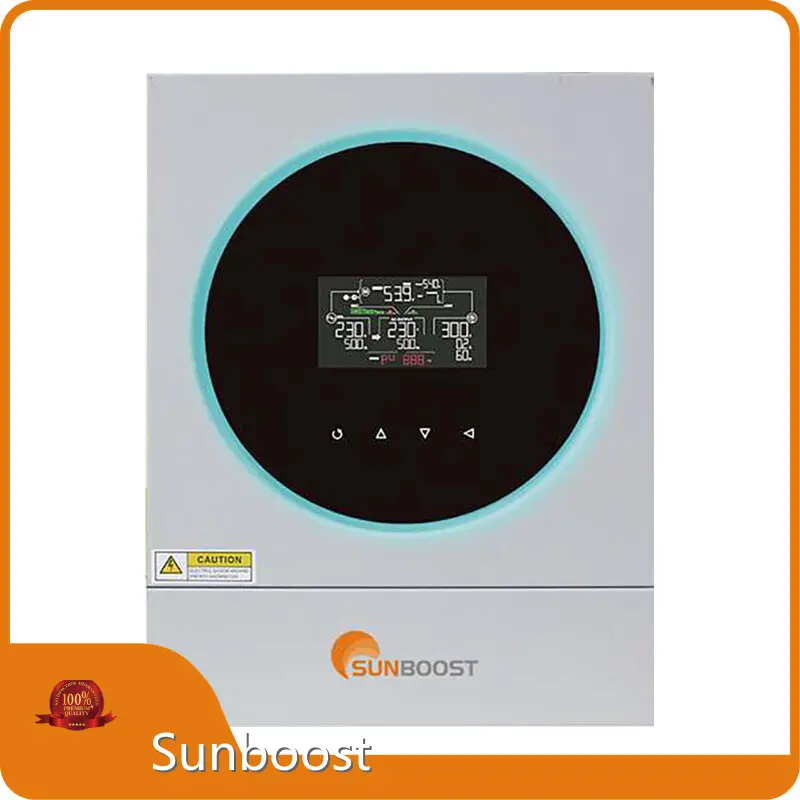

Solar Power Inverter Manufacturers by Sunboost
Product details of the solar power inverter manufacturers
Quick Overview
solar power inverter manufacturers boasts its original and unique design. The product is put into the market after rigorous inspection. solar power inverter manufacturers of Sunboost has very extensive application in different scenarios. solar power inverter manufacturers has a stronger market competitiveness.
Product Description
Sunboost's solar power inverter manufacturers gains a high market share for the following advantages.
Product characteristics
- Off grid inverter, dustproof kit design
- Maximum photovoltaic input current 27A
- Dual output, intelligent load management
- MPPT input voltage range 60~450V
- 4.3 inch touch screen, RGB color bar status display
- Built-in Wi-Fi monitoring module (Android/iOS App)
- Off-grid inverter, support photovoltaic, mains, battery access
- BMS communication interface(RS485,CAN,RS232)
- Intelligent charger design, balance function to extend battery life
Product Specifications
|
SPECIFICATION |
|
|
|
MODEL |
VMIV 4KW |
VMIV 6KW |
|
Rated power |
3500VA |
5500VA |
|
Ac input |
|
|
|
Voltage |
230VAC |
230VAC |
|
Voltage range |
170-280Vac(applicable to personal computer)90-280Vac(applicable to household appliances) |
170-280Vac(applicable to personal computer)90-280Vac(applicable to household appliances) |
|
The output |
|
|
|
The output voltage range |
230VAC±5% |
230VAC±5% |
|
Power surge |
8000VA |
12000VA |
|
Ffhciency |
93% |
93% |
|
Conversion time |
10ms(computer) |
10ms(computer) |
|
|
20ms(Household appliance) |
20ms(Household appliance) |
|
wave form |
Pure sine wave |
Pure sine wave |
|
battery |
|
|
|
The battery voltage |
24V |
48V |
|
Float charging pressure |
27V |
54V |
|
The overcharge protection |
33VDC |
63VDC |
|
Pv charging &communication |
|
|
|
Pv charging &communication |
MPPT |
MPPT |
|
Maximum photovoltaic array power 5000W |
6000W |
|
|
MPPT working voltage range |
60~450VDC |
60~450VDC |
|
|
|
|
|
Open circuit voltage,the largest |
|
|
|
photovoltaic array |
500VDC |
500VDC |
|
The rated voltage |
320V |
360V |
|
The largest pv input current |
27A |
27A |
|
The largest pv charging currentMaximum charging current |
120A |
120A |
|
communication |
120A |
120A |
|
Maximum charging current |
120A |
120A |
|
physical |
||
|
Size(D/W/H) |
470x305x125mm |
470x305x125mm |
|
Net weight (KG) |
9 |
10 |
|
Communication interface |
USB/RS232/RS485/WiFi/Dry contact |
USB/RS232/RS485/WiFi/Dry contact |
|
Working environment |
|
|
|
Relative humidity |
5%to 95%Relative humidity(no condensation) |
5%to 95%Relative humidity(no condensation) |
|
Working temperature |
-10℃ to 50℃ |
-10℃ to 50℃ |
|
Storage temperature |
-15°C to 60°C |
-15°C to 60°C |
|
Standard |
|
|
|
Safety regulation |
CE |
CE |
Company Introduction
Sunboost Technology Co.Ltd enjoys a good reputation for manufacturing products like solar power inverter manufacturers. We are recognized as a reliable supplier. The high-end technology plays a great role in high quality of solar power inverter manufacturers. Adhering to the corporate philosophy of “Dedicating to the success of our customers”, we are united to create innovative products with global competitiveness. Inquire online!
We value honesty greatly and always keep the promise. And our products are complete in kinds and reliable in quality. If you have any needs, feel free to contact us at any time.
